Azuna

Product code: AZ -W-CCT-CRI-IPR-BR-CE

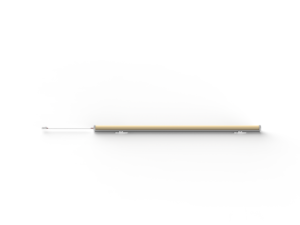

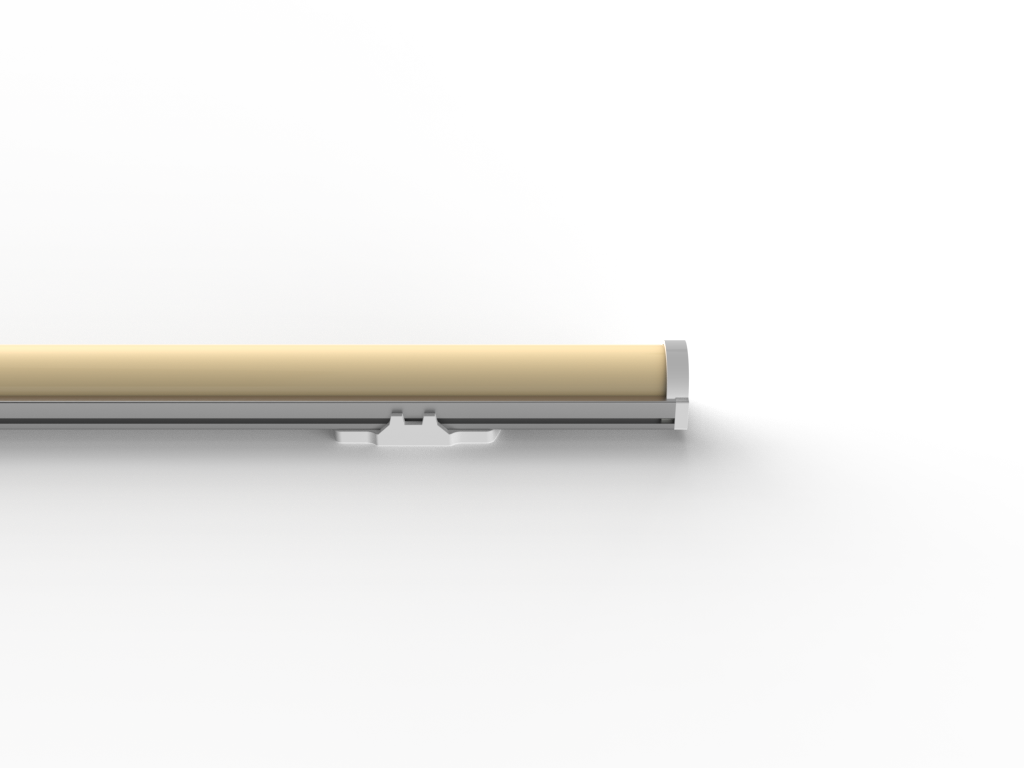

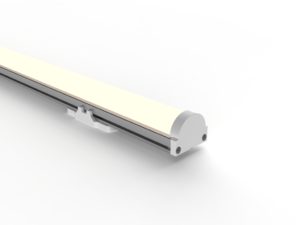

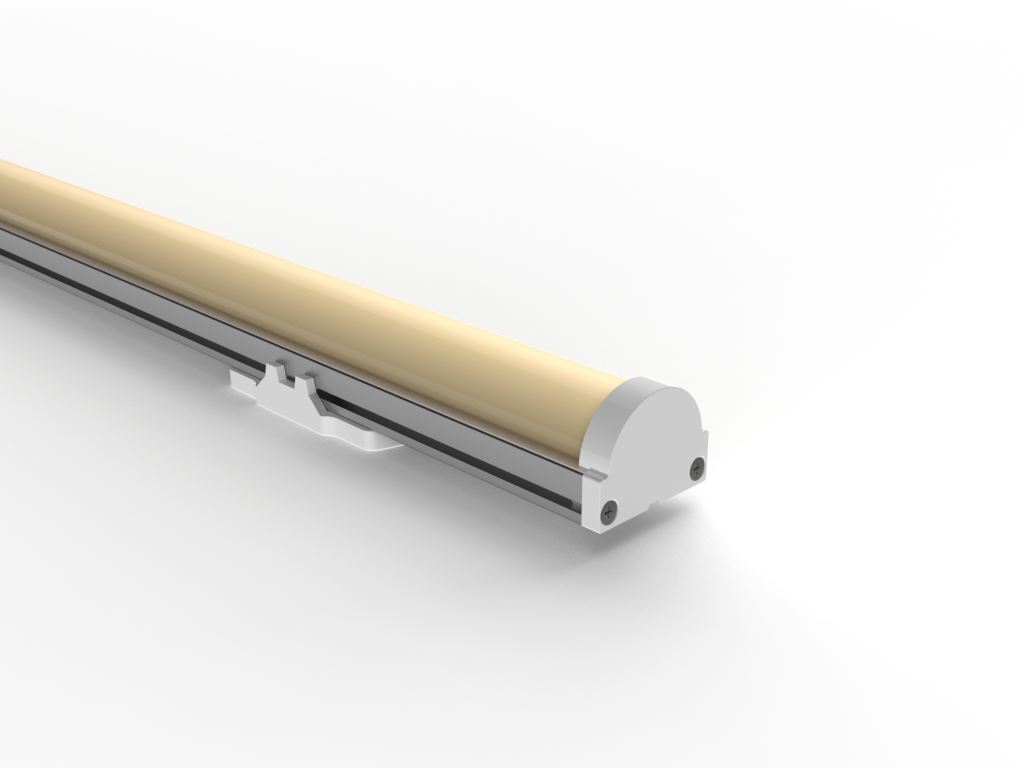

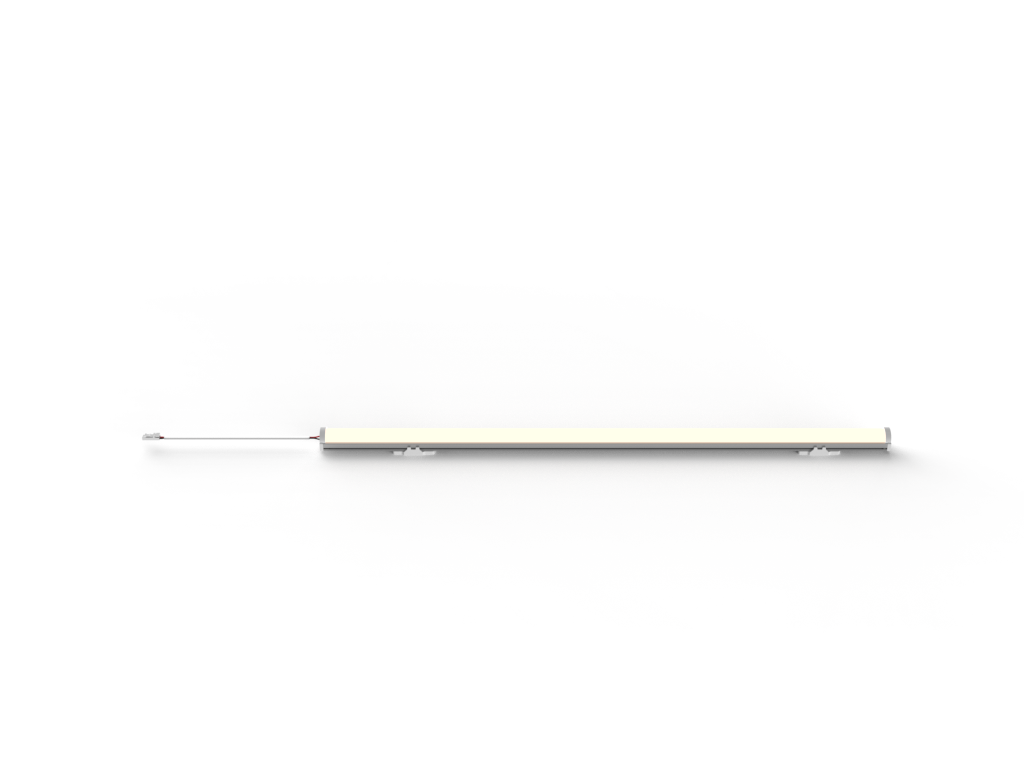

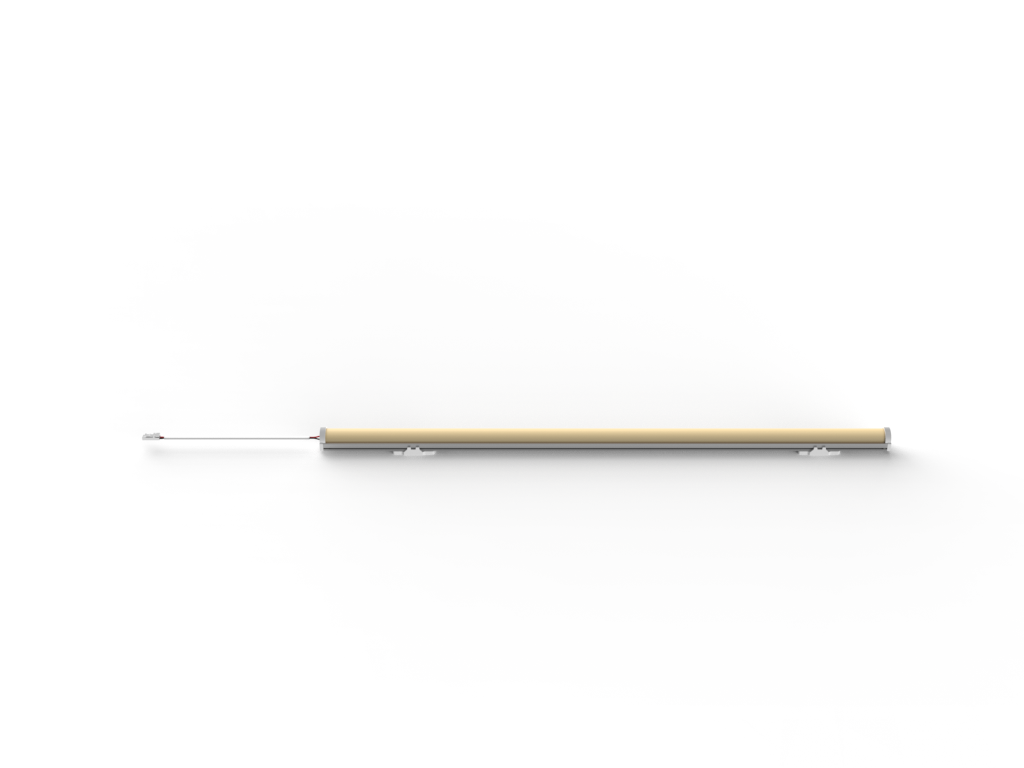

Azuna linear LED is typically used as a high lumen output system which has been developed with remote phosphor technology to offer consistent colour rendering for in-direct lighting solutions where high lumen levels are required. This product can achieve over 2730 lumens per metre (26W) with the the high output system, 2109 lumens (19W) in the medium output and 1060 lumens (14W) with the low output system. Azuna has been designed in 16 different lengths ranging from 82mm up to 1187mm which ensures almost any shape or length can be evenly illuminated by its unique 260 degree beam angle. Available in 80CRI or 90CRI in 4 colour temperatures, 2400K, 2700K, 3000K & 4000K. Ideal for shallow coves as the fixed bracket system is only 20mm high, with the adjustable option being 32mm. Available in various dimming options such as DALI, 0-10V, DMX, Phase or switched. Standard systems supplied in IP54 with IP65 option. Ideal for cove lighting, architectural features and furniture integration. Please talk to our sales team to discuss your project further.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: Indirect
  • Operating Temperature: -20°C to 55°C
  • Lifetime Hours: 50,000
  • Input: 350mA | 450mA | 600mA
  • LED Chip: Lumenmax XTR-5630
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Applications: Cove, Decorative, Furniture
