Proteus D

Product code: PRO-D-W-CCT-IPR-M

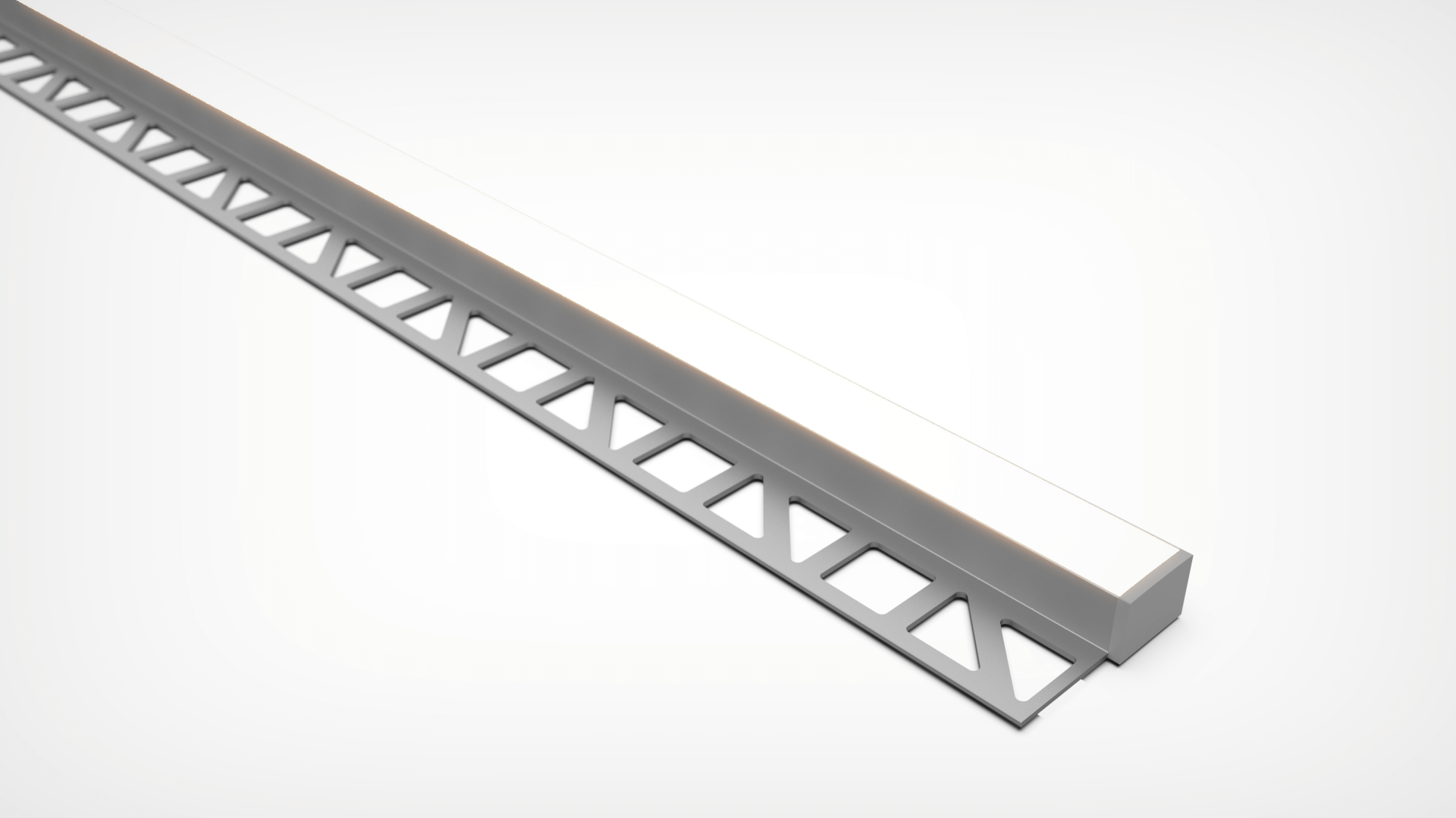

Proteus D is a very slim, discreet 7.5mm x 8mm Aluminium profile incorporating an Opal diffuser for a totally homogenous lit appearance. Available in 80 & 90CRI with CCT from 2200K up to 4000K with power options of 9.6W or 4.8W per mtr which can provide approx 814lm and 415lm respectively. A wide range of lengths can be supplied with increments of just 40mm, starting at 50mm up to approx 2000mm .
Dimmable via DALI, 0-10V, Phase, DMX, Bluetooth Casambi or switched remote drivers. Available with fixed or adjustable brackets and in IP54 and IP67. Please talk to our sales team to discuss your project further.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: 120°
  • IP Rating: IP54-IP67
  • Operating Temperature: -25°C to 55°C
  • Input: 24V
  • LED Chip: Nichia
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Material: Aluminium
  • Applications: Cove, Display, Furniture
