Proteus M Lite

Product code: PRO-M-L-W-CCT-CVR-IPR-BR

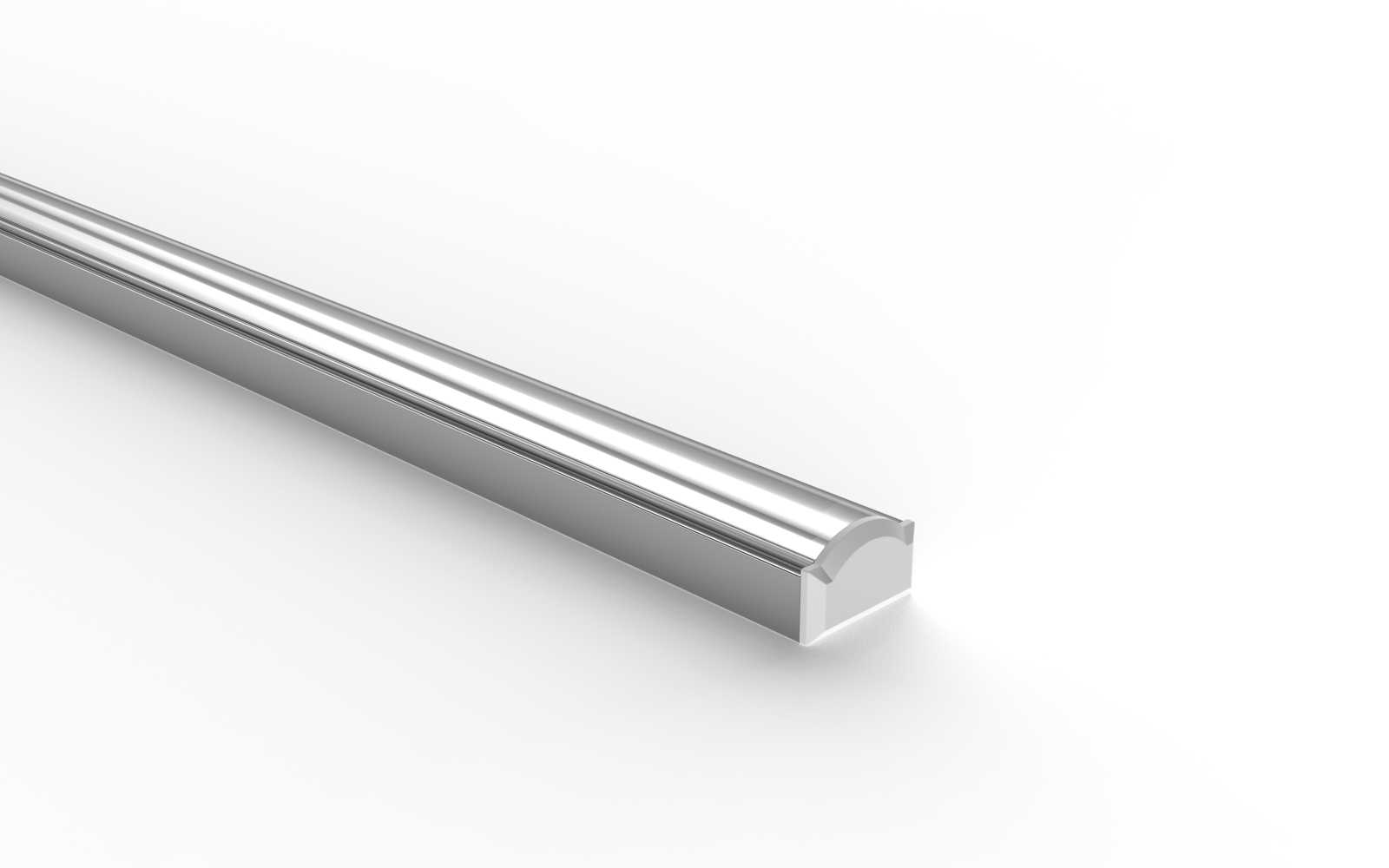

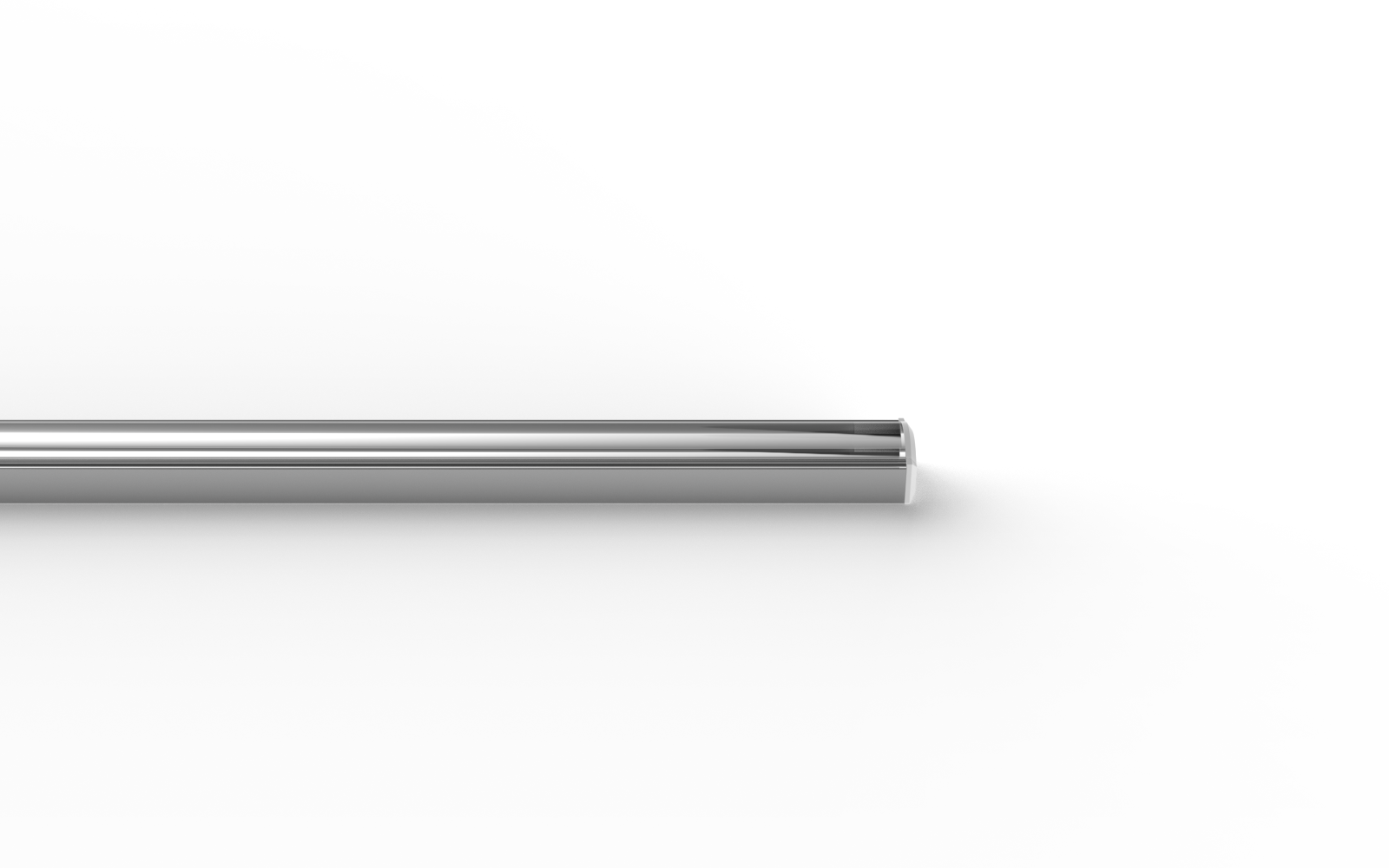

Proteus M LITE is our budget, quality in-direct linear Led luminaire which is a proven choice for many of the UKs lighting designers for large scale projects where budgets can be be difficult to meet. This system can provide the ideal solution to satisfy the design intent whilst staying within budget for the client. LITE is available in a range of colour temperatures from 2400K up to 4000K and in 80 and 90 CRI. Various lumen outputs can be achieved from our range of power outputs which range from 4.8W, 9.6W, 14.4W and 17W. A wide range of lengths can be supplied from 51mm up to approx 2000mm in the LITE range, which is dependent on the cutting increment of the tape required as this changes with different wattages. Cutting increments are 100mm for 4.8W, 50mm for 9.6W, 59mm for 14.4W and 25mm for 17W. Optional diffusers of Opal for a homogenous, dot free effect, or with clear for maximum lumens and even a 30 degree lense for more focused light. Dimmable via DALI, 0-10V, Phase, DMX, Bluetooth Casambi or switched drivers. Available with adjustable of fixed brackets and in IP54 and IP67. Please talk to our sales team to discuss your project further.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: Indirect
  • Operating Temperature: -25°C to 55°C
  • Lifetime Hours: 30,000 @ 25C
  • Input: 24V
  • LED Chip: Luxeon
  • Warranty: 3 Years
  • ROHS Compliant: Yes
  • Applications: Cove, Furniture, General Lighting
