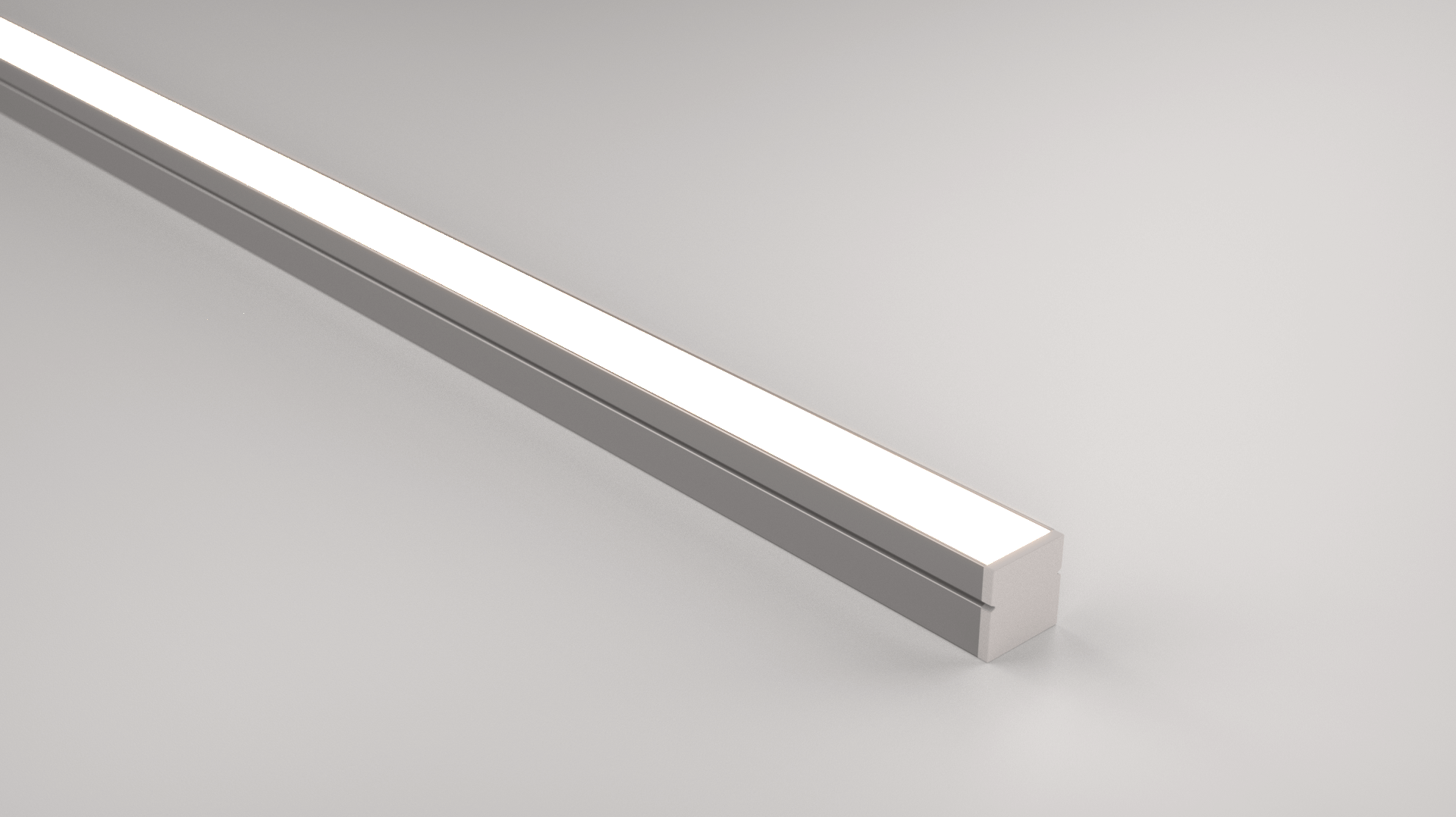

Proteus T

Product code: PRO-T-W-CCT-CVR-IPR-L

The Proteus T is the ultimate slimline LED profile at just 10mm x 10mm, designed to blend seamlessly into furniture, bookshelves, and other architectural details. This linear luminaire is a favorite among lighting designers across the globe, thanks to its compact size and exceptional performance.

With an outstanding performance of 876 lumens, the Proteus T harnesses the latest LED technology to deliver high-quality, energy-efficient illumination tailored to your needs.

Proteus T offers a wide range of customizable options to suit your design vision. It is available in color temperatures ranging from warm 2200K to crisp 4000K, with options for 80 or 90 CRI to achieve perfect color rendering. You can choose between two power configurations, 4.8W or 9.6W per metre, to achieve your desired brightness. Additionally, its flexible lengths, offered in lengths of approx 60mm to 2010mm with 50mm steps, ensure precise fitting for any application.

Equipped with an opal diffuser, Proteus T ensures a uniform and homogenous light output that enhances any space it touches.

With advanced control options, Proteus T is compatible with DALI, 0-10V, Phase, DMX, Bluetooth Casambi, or standard switched drivers. Its versatility extends to its durability, offering IP54 or IP67 protection to suit a variety of environments.

Elevate your project with this cutting-edge luminaire. Contact our expert sales team to discover how the Proteus T can redefine your lighting designs.







Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: Indirect
  • IP Rating: IP54 & IP67
  • Operating Temperature: -25°C to 55°C
  • Lifetime Hours: 50,000 @ 25C
  • Input: 24V
  • LED Chip: Luxeon
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Material: Aluminium/Acrylic
  • Applications: Cove, Furniture
