Heathrow Airport T3 IDLLondon

Kemps was recently specified by StudioFractal to manufacture a set of bespoke fittings for the international departure lounge at Heathrow Airport T3.

We worked closely with Target Site Services to realise StudioFractal’s lighting design.

Showing of images

The brief

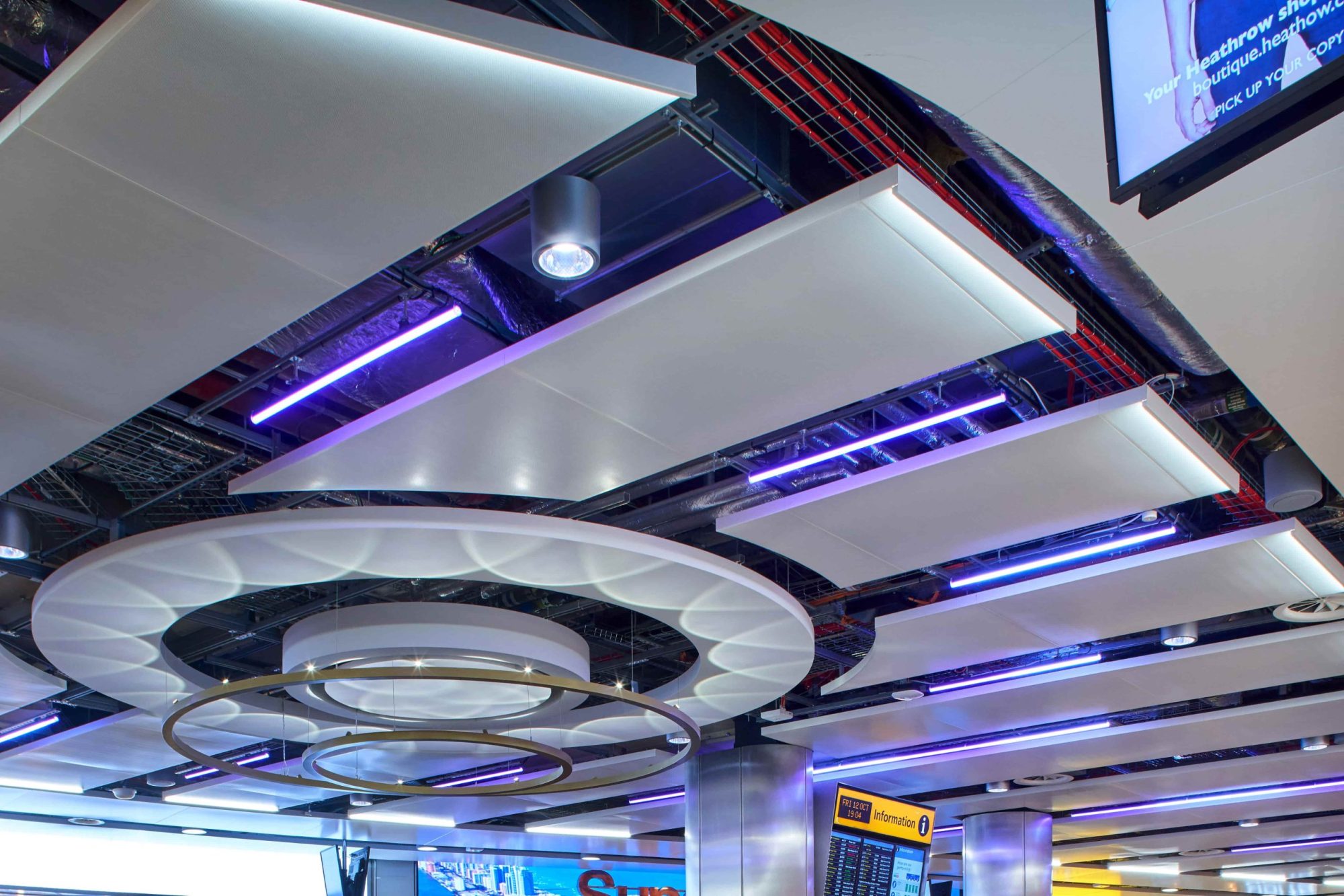

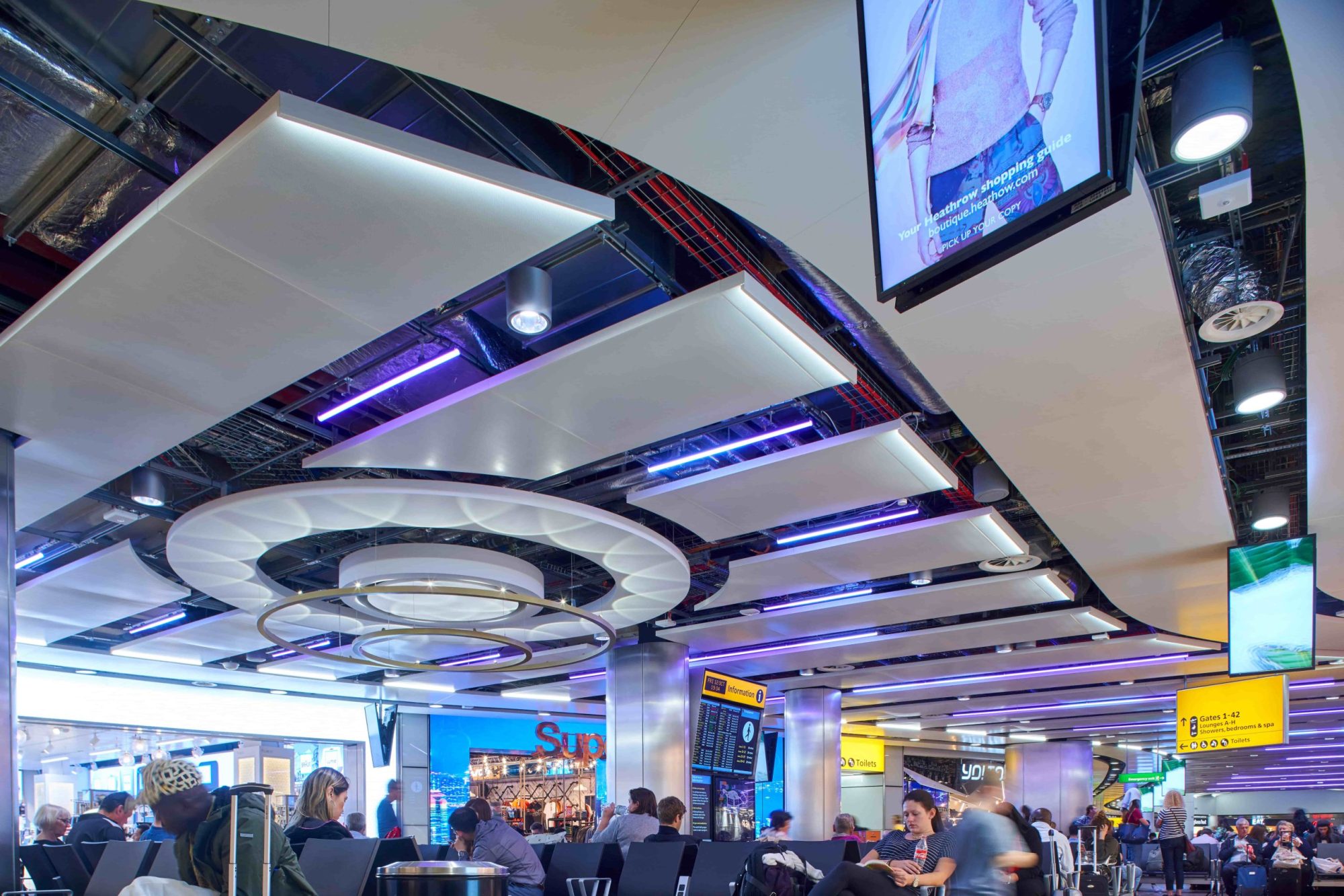

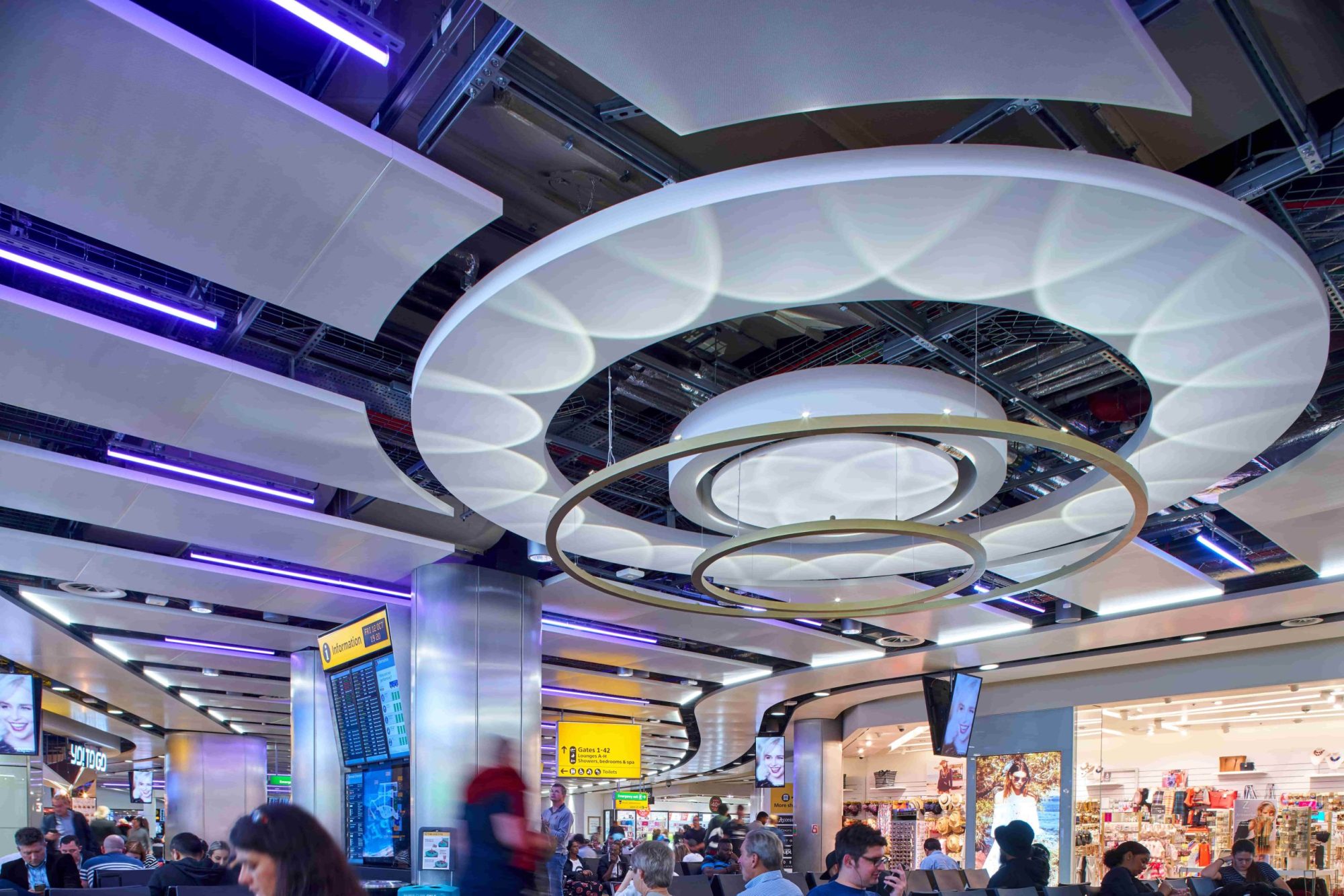

The brief was for suspended ceiling lighting above a central seating area. The designs from StudioFractal included twin halo fittings with LED spotlights. These spotlights were positioned at intervals to create scalloped curves of light on the ceiling panels above.

Achieving the required effect

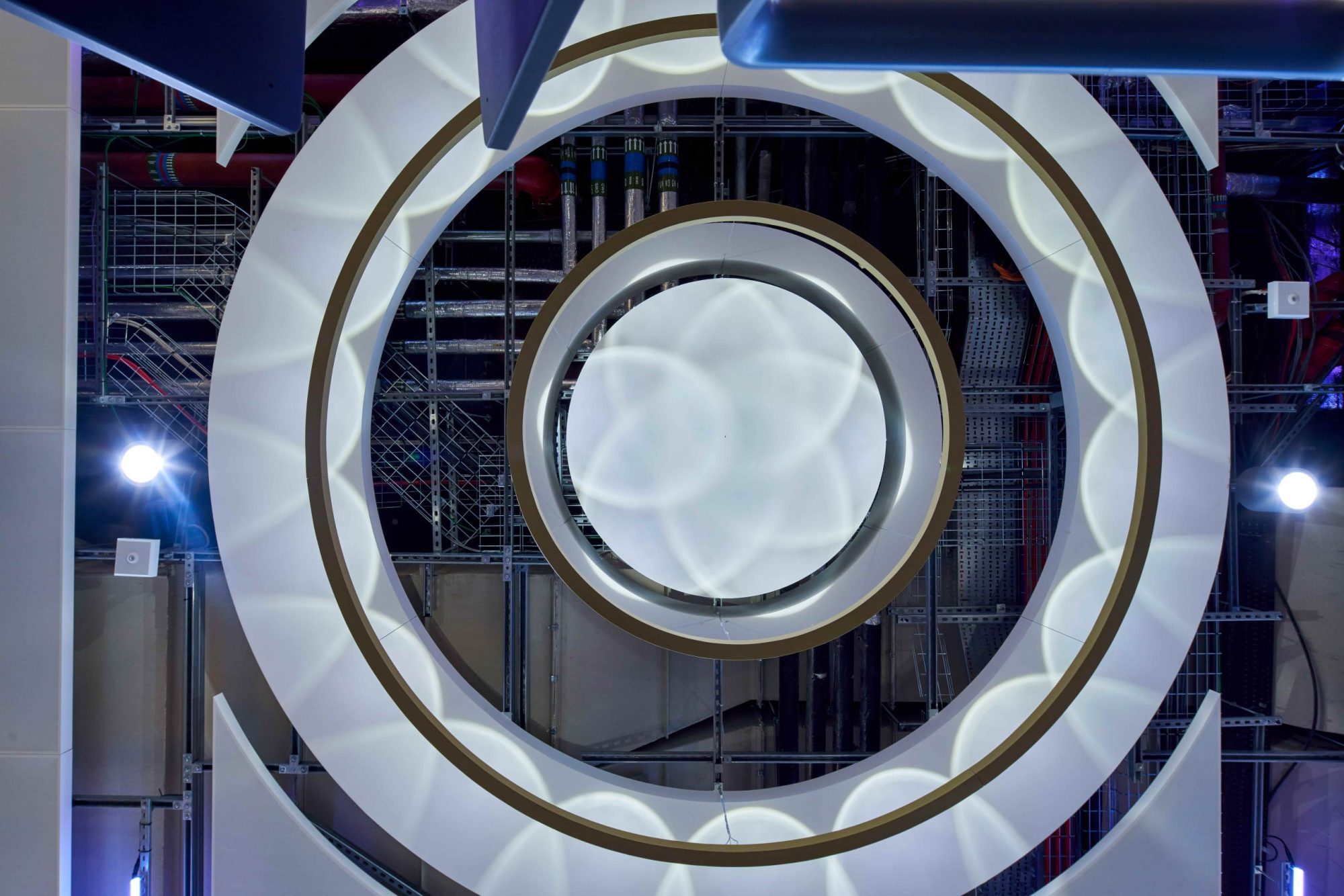

We used 18 4000K LED downlights on the 3.3m diameter ring and a further 5 downlights on the 1.7m diameter ring. Each spotlight has a unique adjustable convex lens which is used to achieve the distinctive scalloped effect.

The rings were rolled to the correct diameter from a lightweight Aluminium channel, before being powder coated in Anodic Gold as per the specification.

A quick turnaround

We assembled the fittings at our Leeds facility and our LED team tested their effectiveness over 2-3 days. Following a successful assessment, the finished products were carefully dismantled and delivered to the Heathrow site.The whole process took less than 4 weeks from the initial order.

We selected Kemps to manufacture and supply the lighting feature on Heathrow’s T3 International Departure Lounge because we trust their ability to closely follow our designs and have faith in their expertise in meeting challenging deadlines with a robust, high quality product.

Senior Lighting Designer, Ben Hollands at StudioFractal
