Figaro 40 L P (Dark Light Technology)

Product code: FIG40-L-P-DC-CCT-CTRL-BA-RFL-F-L

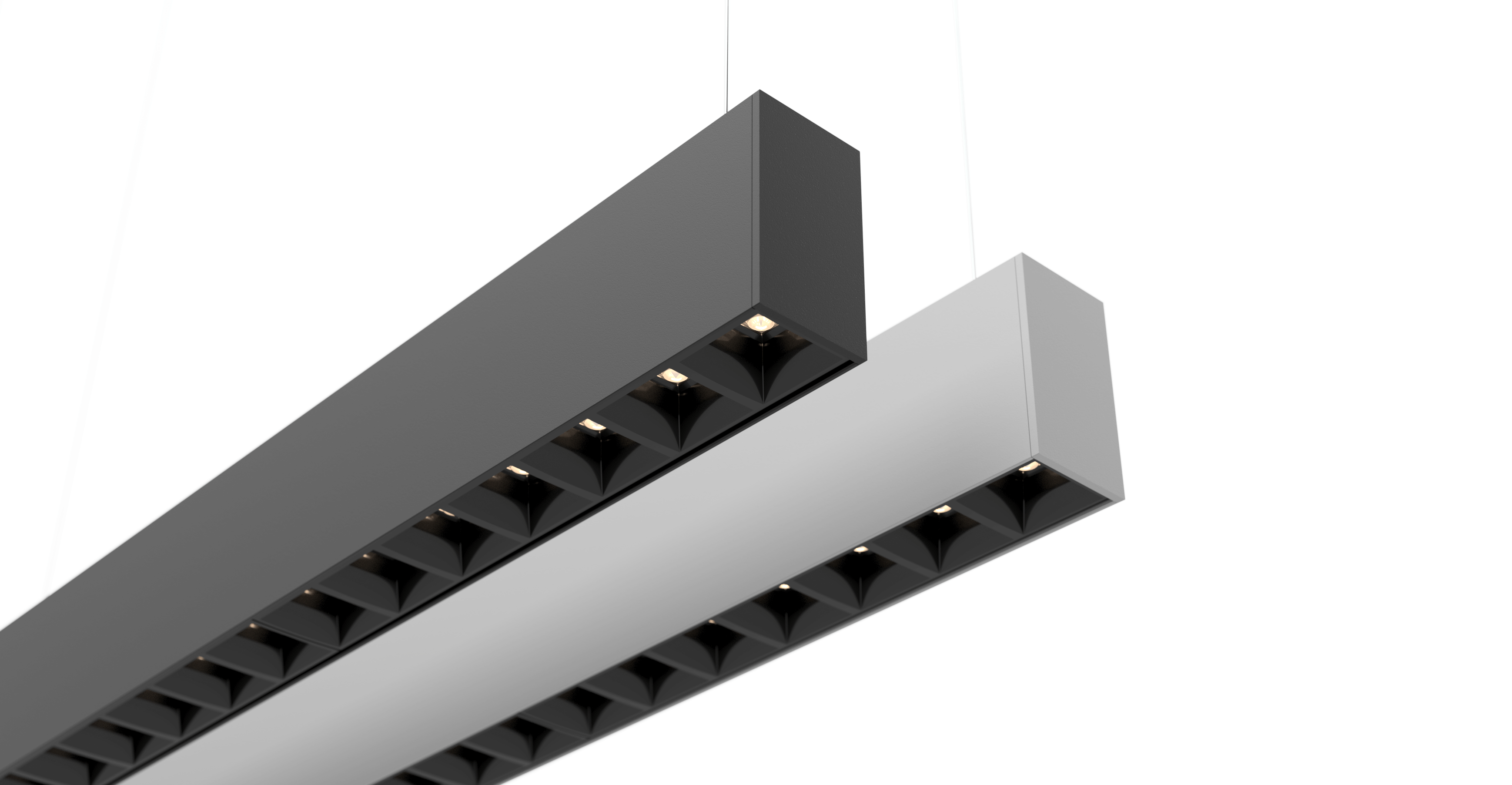

Figaro 40 L P is a sleek and compact suspended linear system which is designed around a unique louvre reflector providing direct light with primary optics for dispersing light points. Our specular reflectors commonly know as Dark Light are excellent for delivering precise and efficient lighting solutions, suitable for office, retail and education environments where visual comfort and lighting performance is crucial. They feature a mirror like surface which allows them to collect and redirect light while avoiding excessive light spill and glare which is <19 UGR. Figaro 40 L P is available with varying optics such as 35°, 50°, 80°, 80° batwing and also a wall washing option. Additional White or Black reflectors are available in gloss and matt finish. Available in 3000K and 4000K with 80 & 90 CRI options and in 2 different outputs. The profile width is just 45mm and 82mm in height. Dimming options with DALI, 0-10V, Bluetooth Casambi or simply switched with emergency available. Standard finishes in Black, White, Grey and natural Aluminium with other custom RAL colours available on request. Available in multiple lengths to suit any size project. Please talk to our sales team to discuss your project further.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • UGR: <19
  • Light Distribution: Direct
  • IP Rating: IP40
  • Operating Temperature: -25°C to 55°C
  • Lifetime Hours: 50,000
  • LED Chip: Tridonic
  • Weight: 3kg
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Material: Aluminium
  • Applications: General Lighting
