Figaro 40 L R (Dark Light Technology)

Product code: FIG40-L-R-DC-CCT-CTRL-BA-RFL-F-L

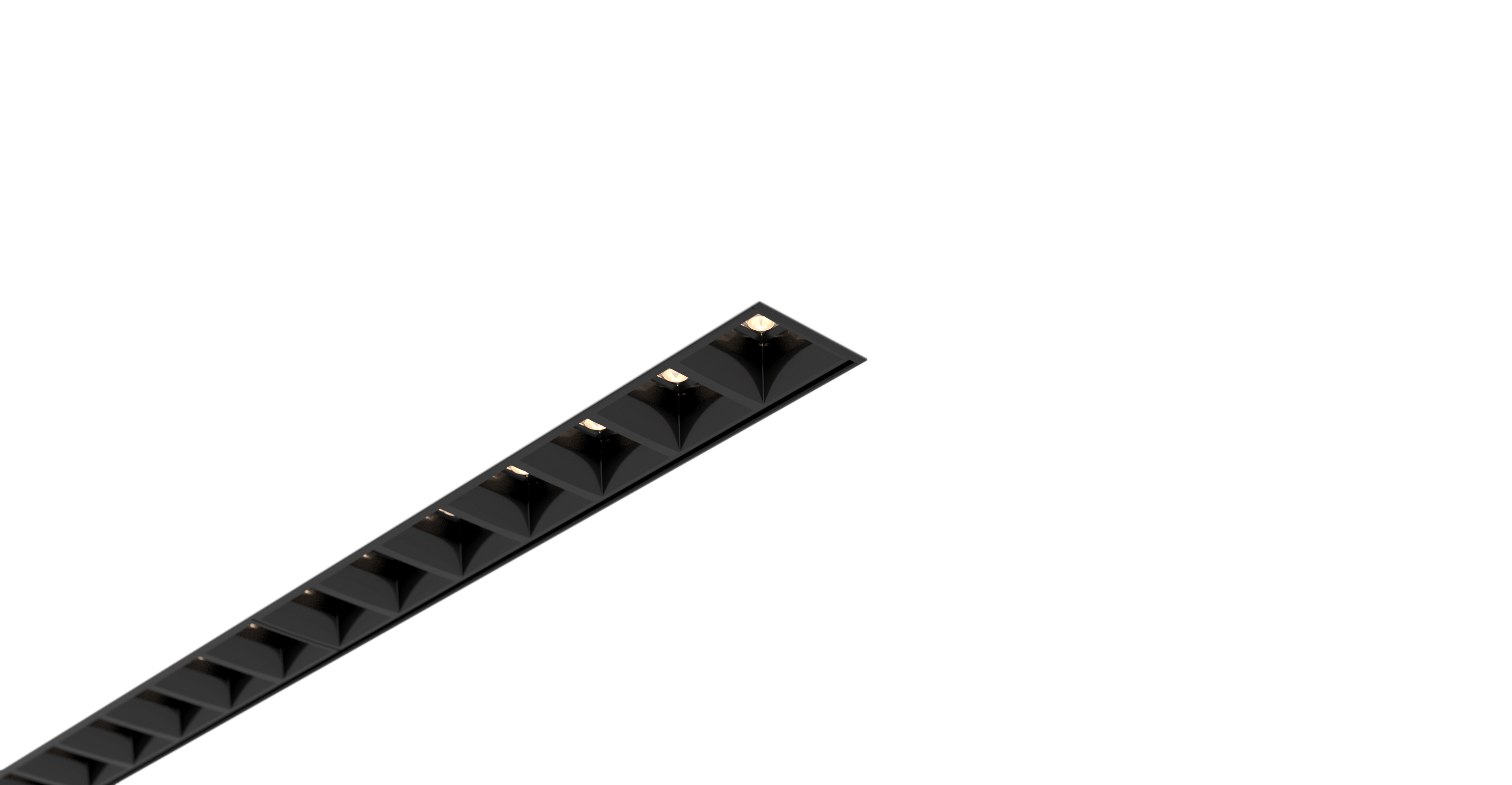

Discover Figaro 40 L R, a sleek and compact trimless recessed linear system thoughtfully engineered around a unique louvre reflector designed to provide direct lighting with primary optics, ensuring precise light dispersion. Our specular reflectors, commonly referred to as Dark Light, excel in delivering accurate and efficient lighting solutions, making them ideal for office, retail, and educational environments where achieving the perfect balance between visual comfort and lighting performance is of utmost importance. These reflectors feature a mirror-like surface that allows them to capture and redirect light effectively, all while minimizing excessive light spill and glare, ensuring compliance with UGR<19 standards.

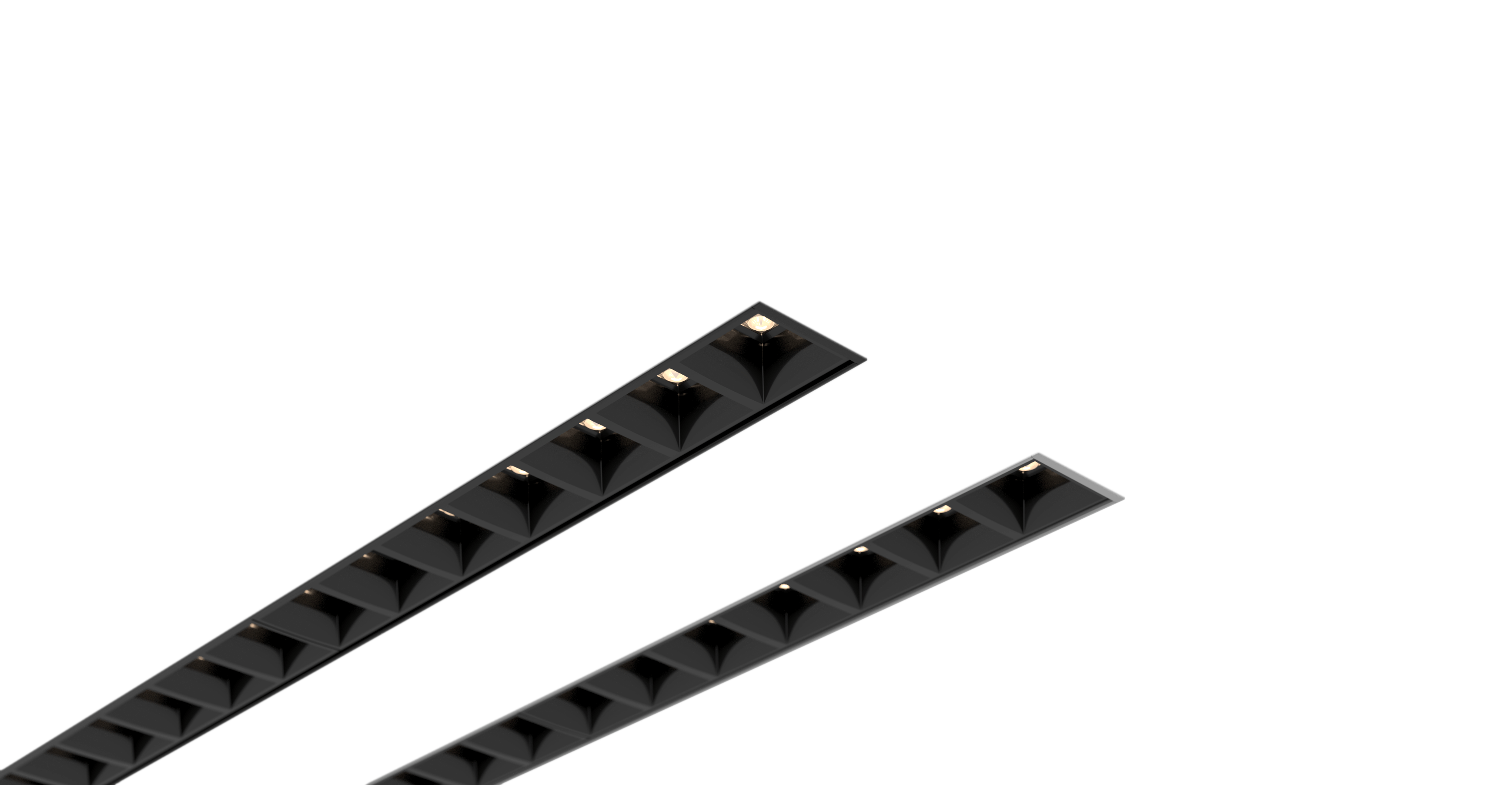

Figaro 40 L R offers various optics, including 35°, 50°, 80°, 80° batwing, and a wall-washing option, providing versatility in lighting design. You can opt for additional White or Black reflectors, available in both gloss and matte finishes. The system is available in 3000K and 4000K, with options for 80 and 90 CRI, and provides two distinct output variations.

The profile maintains a slim 45mm width and an 82mm height, allowing for a contemporary and seamless design. Dimming options are diverse, including DALI, 0-10V, Bluetooth Casambi, or straightforward switch control, with the added convenience of emergency functionality. Standard finishes are offered in Black, White, Grey, and natural Aluminum, and the option to request custom RAL colors allows for personalized aesthetics to align with your project’s unique style. With multiple length options, Figaro 40 L R is adaptable to projects of varying sizes. We encourage you to engage in a conversation with our sales team to explore how Figaro 40 L R can be customized to meet the specific requirements of your project, ensuring exceptional lighting solutions and visual comfort.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • UGR: <19
  • Light Distribution: Direct
  • IP Rating: IP40
  • Operating Temperature: -25°C to 55°C
  • Lifetime Hours: 50,000
  • LED Chip: Tridonic
  • Weight: 3kg
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Material: Aluminium
  • Applications: General Lighting
