Figaro 4040 P

Product code: FIG4040-P-DC-CCT-CTRL-CVR-F

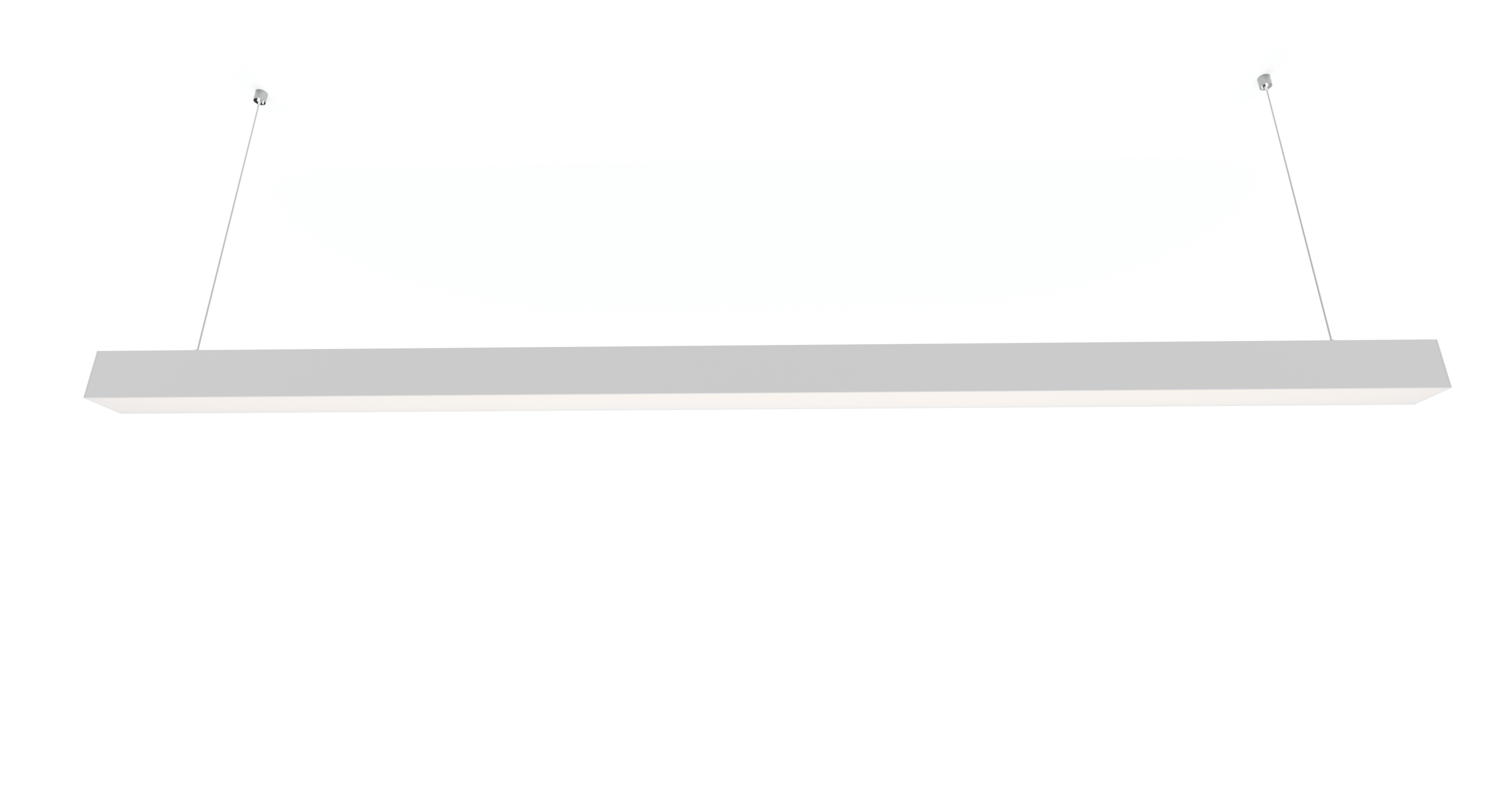

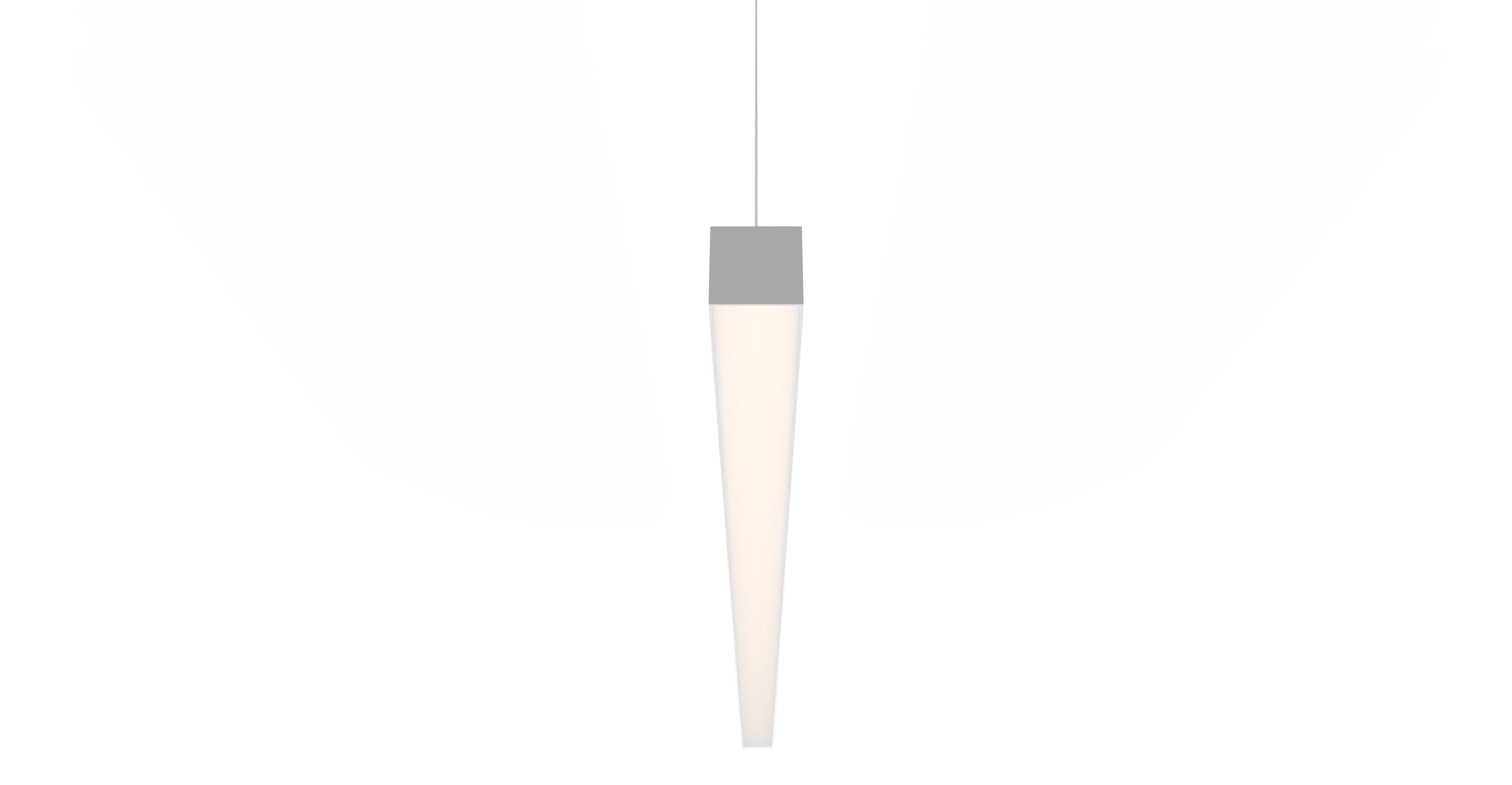

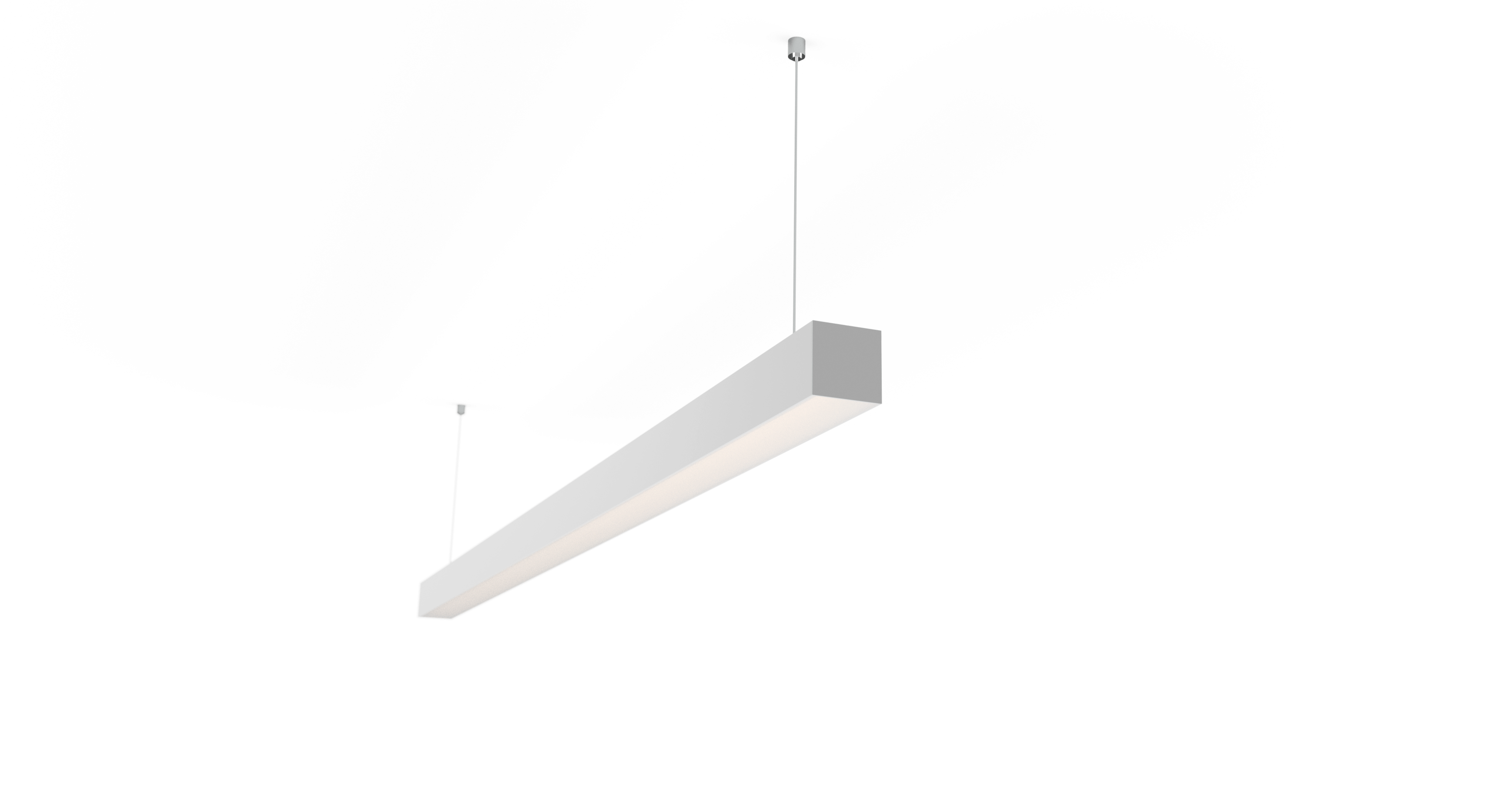

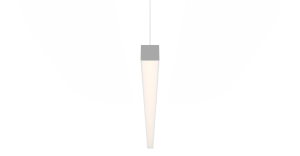

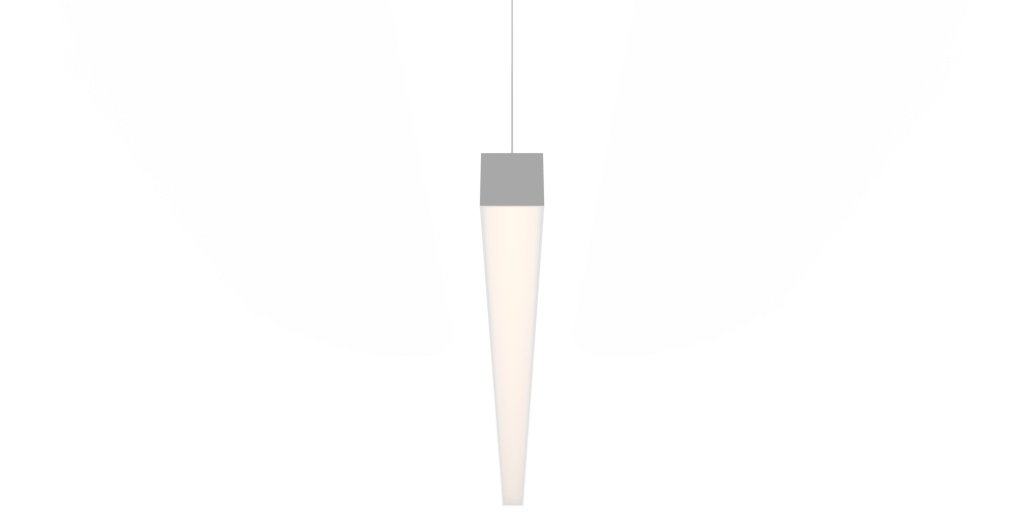

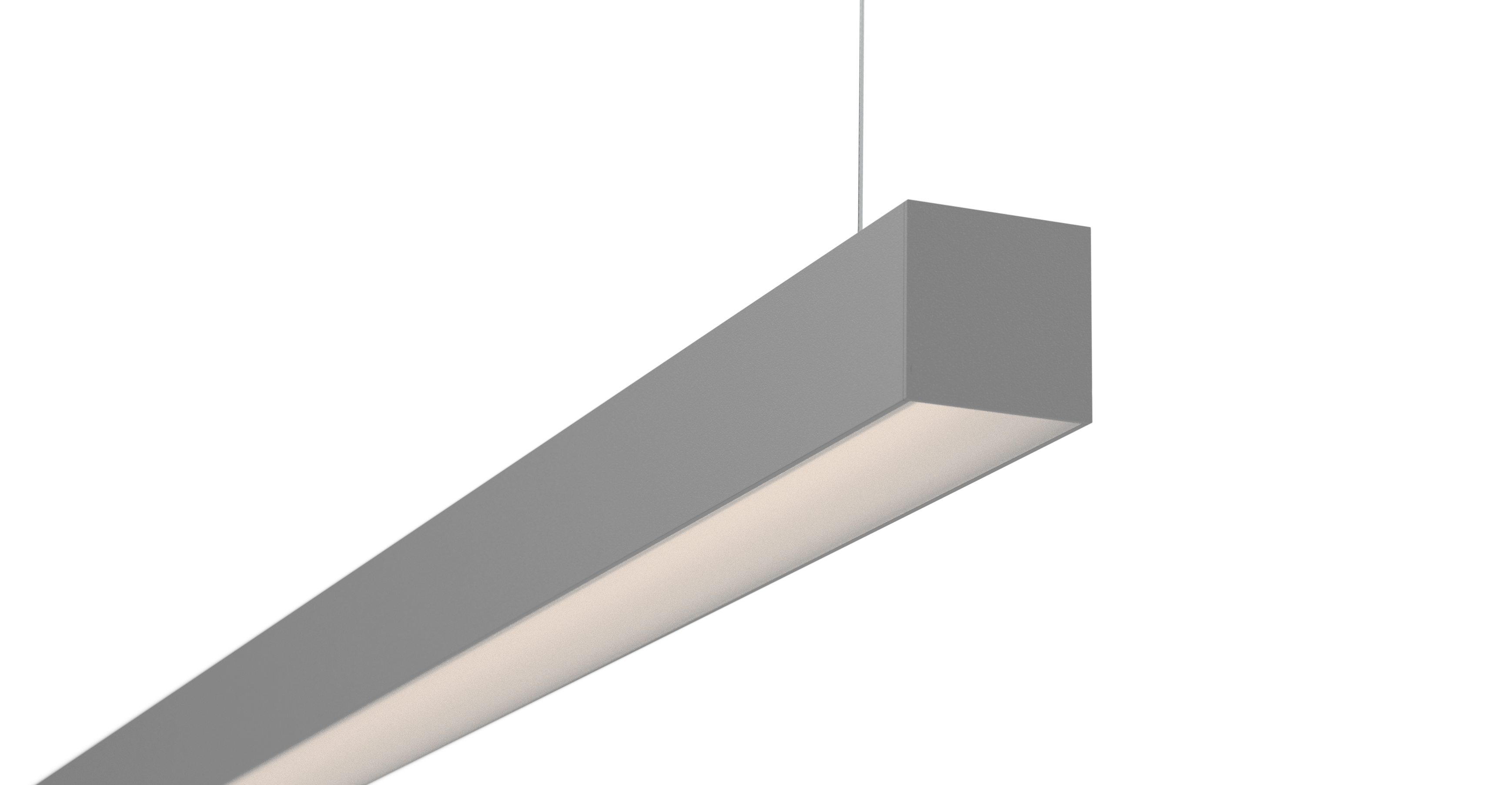

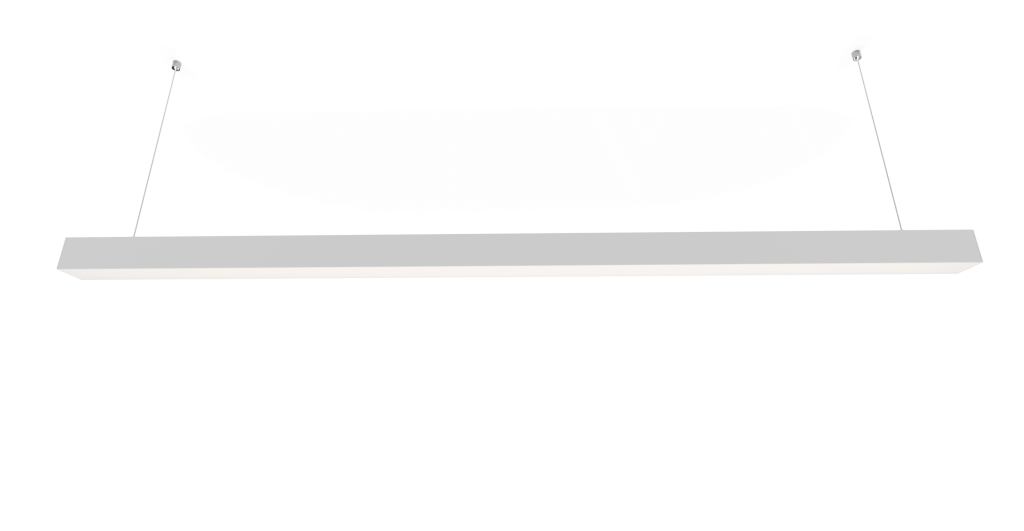

The Figaro 4040 P is a versatile and attractive suspended linear LED lighting system that offers continuous lines of uniform direct lighting. It is specifically designed to be suitable for a variety of environments, including offices, commercial spaces, retail stores, and educational institutions. With its sleek (38mm x 38mm) and modern appearance, it adds a touch of style to any space.

One of the notable features of the Figaro 4040 P is the availability of two color temperature options: 3000K and 4000K. Additionally, you can choose between 80 and 90 CRI (Color Rendering Index) depending on your location and lighting preferences. These options allow you to create the desired ambiance and lighting quality for your specific application.

The lighting system offers three different output levels to meet your requirements which are 18W, 12W and 9W.

To further customize the lighting effect, you can choose between two types of diffusers: Frosted or Micro-prismatic. The Frosted diffuser provides a softer and diffused light output, while the Micro-prismatic diffuser creates a more clear and precise lighting effect. This choice enables you to achieve the desired aesthetic and lighting distribution in your project.

When it comes to dimming options, the Figaro 4040 P supports various methods, including remote dimming gear with DALI, 0-10V, DMX, and Bluetooth Casambi control. This versatility allows you to control the lighting intensity and create dynamic lighting scenes as per your preferences. Alternatively, a switched system is available, and there is also a 3-hour emergency option for added safety.

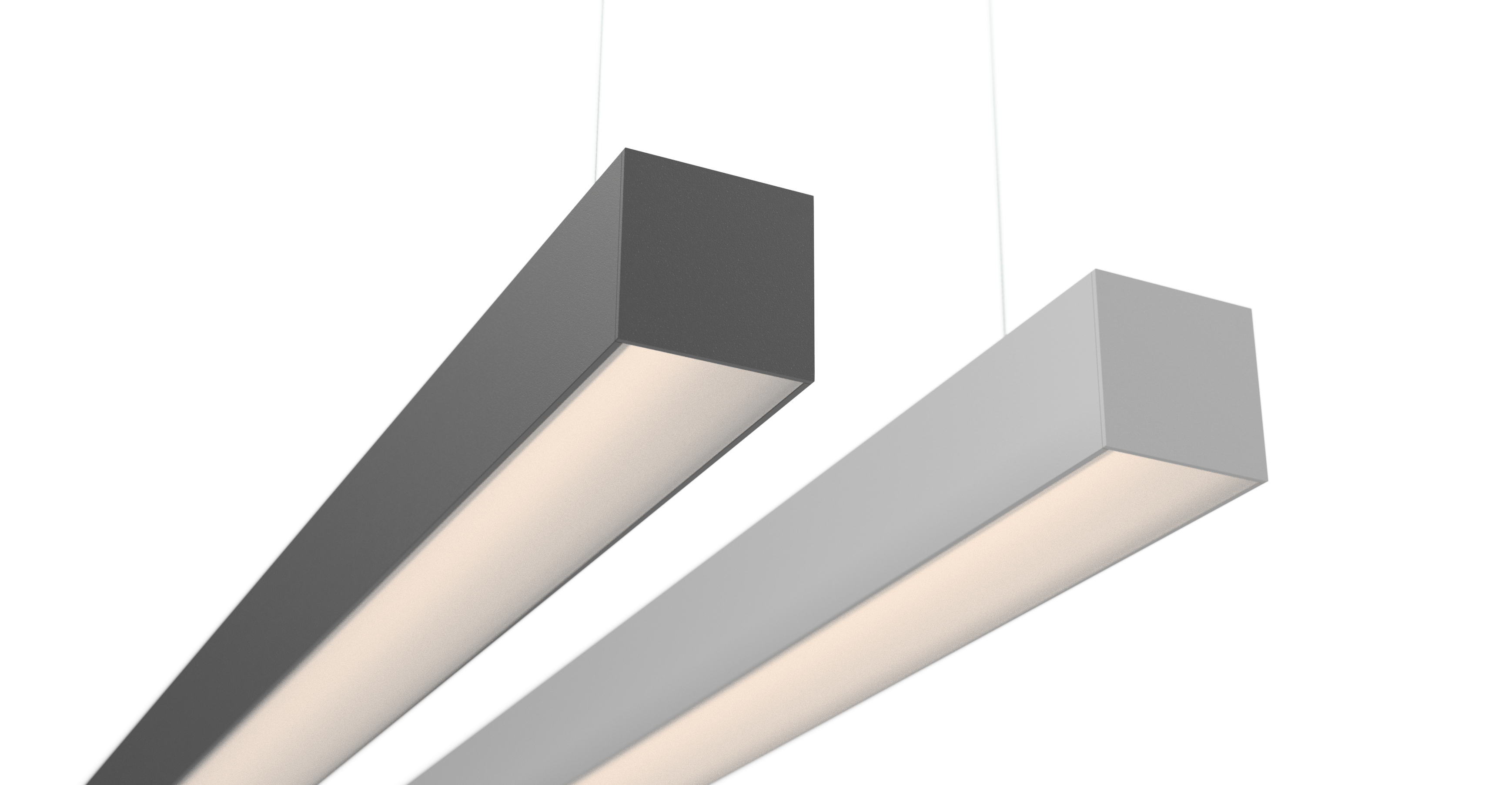

In terms of finishes, the standard options for the Figaro 4040 P include Black, White, and natural Aluminum. However, if you have specific color requirements to match your project’s aesthetic, you can request custom RAL colors. This flexibility ensures that the lighting system seamlessly integrates with your overall design scheme.

The Figaro 4040 P is available in multiple lengths, giving you the freedom to choose the size that best suits your project’s needs. Whether you require a compact lighting solution or a longer linear installation, the available options allow for easy customization.

If you have any further questions or would like to discuss your project in detail, it is recommended to reach out to the sales team. They can provide you with more information and assistance to ensure that the Figaro 4040 P meets your specific requirements and helps you achieve the desired lighting outcome.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: Direct
  • IP Rating: IP40
  • Operating Temperature: -25°C to 50°C
  • Lifetime Hours: 50,000
  • Input: 24V
  • LED Chip: CREE
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Material: Aluminium
  • Applications: General Lighting
