Figaro 60 A S IP54

Product code: FIG60-A-S-DC-CCT-CTRL-CVR-F-L-IPR

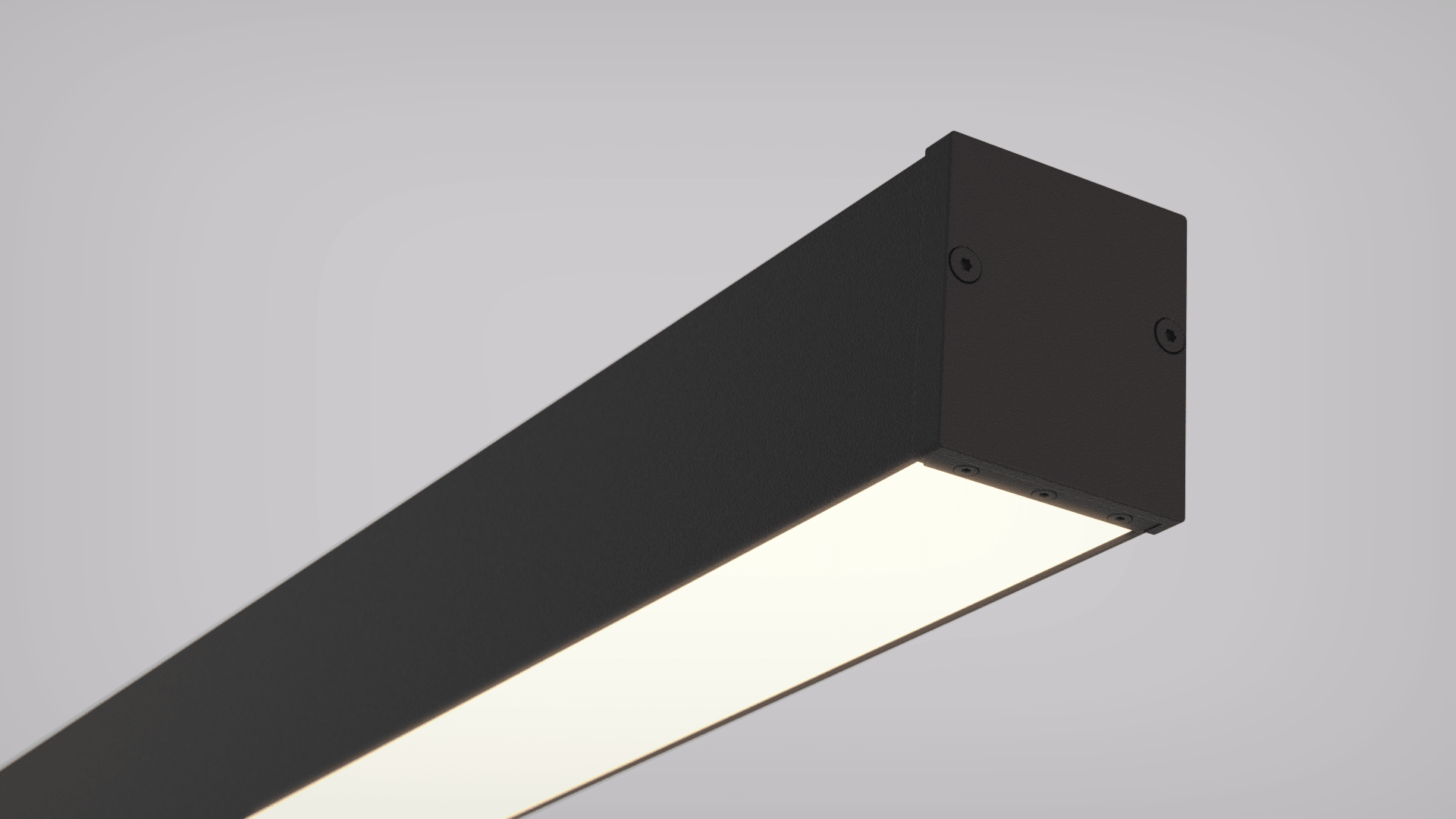

Introducing Figaro 60 A S, a surface-mounted linear LED system designed for outdoor applications, with an IP54 rating. This system delivers continuous, even direct lighting, perfect for covered walkways and canopies. It is available in 3000K and 4000K with the option of 80 & 90 CRI, offering flexibility in lighting quality. Choose from three different output levels: High, Medium, and Economy, to cater to specific project needs.

Figaro 60 A S boasts a profile width of 67mm and provides two diffuser choices: the soft, diffused glow of Matt Opal or the precision of Micro-prismatic. You have a range of dimming options at your disposal, including DALI, 0-10V, Bluetooth Casambi, or simple switch control, with emergency functionality available. The standard finishes include Black, White, Grey, and natural Aluminum, and custom RAL colors can be accommodated upon request.

Sustainability is at the core of Figaro’s design, with replaceable parts and full recyclability, aligning with principles of the circular economy. Available in various lengths, this product is versatile, catering to projects of any size.

Figaro 60 is not just a lighting system; it embodies a commitment to sustainability and eco-conscious practices. For a more in-depth discussion about how Figaro 60 A S can complement your specific project, we invite you to get in touch with our sales team.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • UGR: <19
  • Light Distribution: Direct
  • IP Rating: IP54
  • Operating Temperature: -25°C to 55°C
  • Lifetime Hours: 50,000
  • LED Chip: CREE
  • Weight: 3kg
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Material: Aluminium
  • Applications: General Lighting
