Flexus 3 – PIXEL (Silicone)

Product code: FX3-PIX-S-CCT-SH-CE-IPR

Flexus 3 Pixel emerges as an advanced flexible lighting solution designed to create captivating visual effects through dramatic chasing and fading scenes of ever-changing colors, all controllable via SPI dimming control. With its homogeneous light emission and exceptional color consistency over a wide range of colors, Flexus 3 Pixel promises to elevate both external and internal spaces with stunning visual displays.

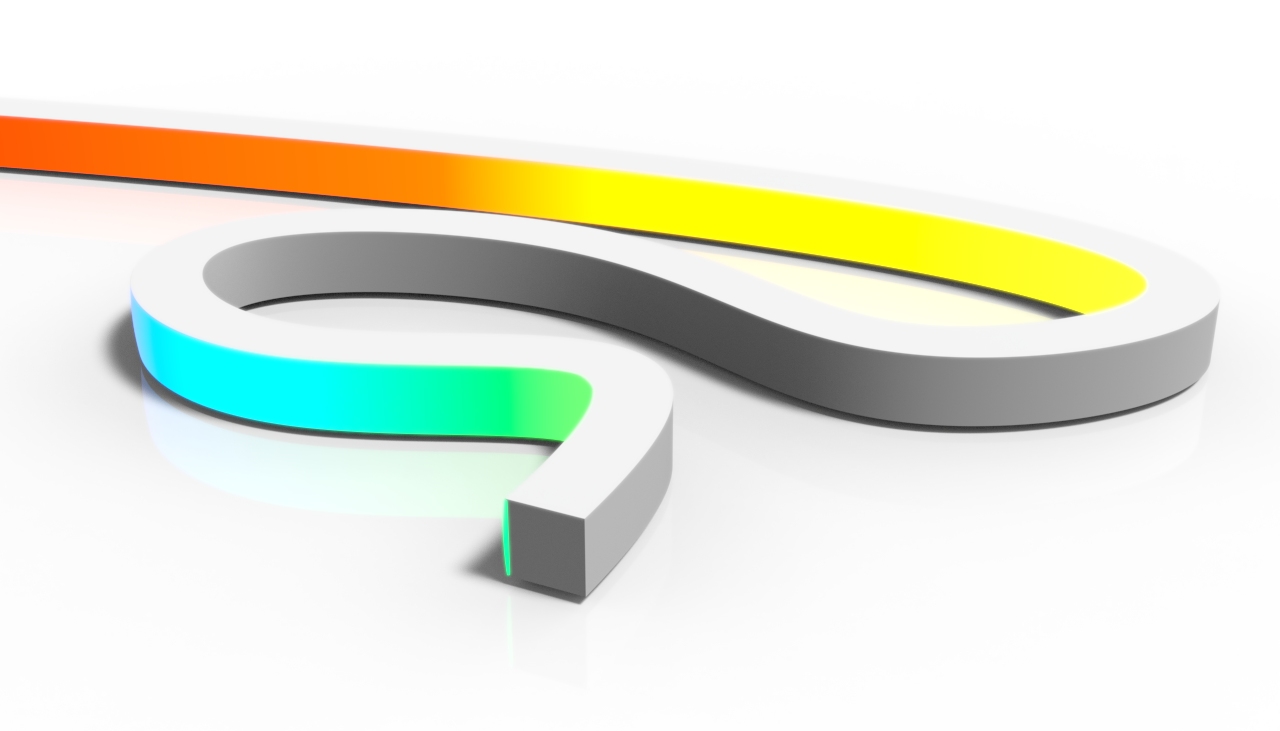

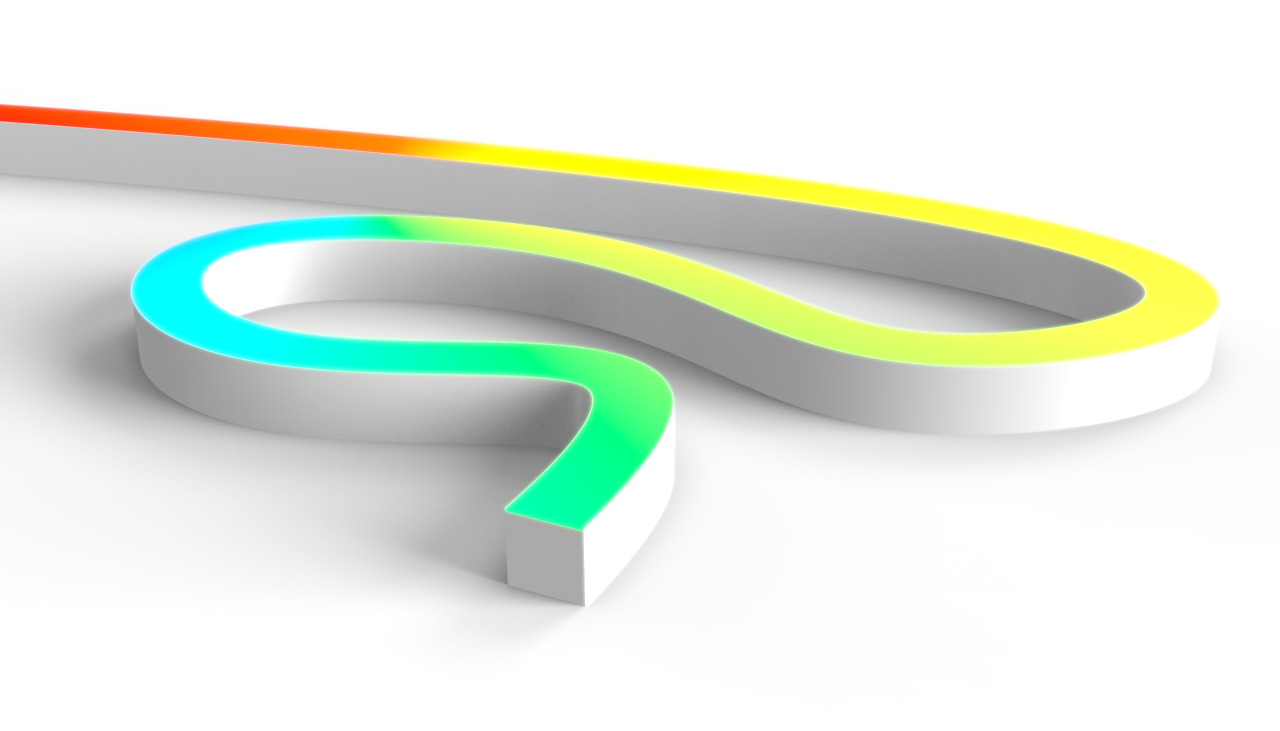

Featuring an IP68 rating as standard, Flexus 3 Pixel offers robust protection against dust and water ingress, ensuring durability and longevity in various environments. It provides horizontal and vertical bending capabilities with a maximum diameter of 150mm, offering flexibility in installation to suit diverse design requirements. The cutting increment is either 100mm or 83mm, enabling precise customization for seamless integration into architectural features and designs.

You can power a maximum 15-metre run (10 metres for RGB, 8 metres for RGBW) from a single 24V feed, simplifying installation and reducing the need for multiple power sources. Additionally, Flexus 3 Pixel is compatible with SPI dimming control, allowing for dynamic control of color-changing effects to create captivating visual displays.

For environments with high UV levels, the silicone variant of Flexus 3 is recommended for enhanced durability and longevity, with an operating ambient temperature range of -20°C up to 55°C.

We offer standalone control systems that are easy to install and program, allowing you to create and customize scenes according to your preferences. On-site commissioning services are also available if required.

To explore how Flexus 3 Pixel can enhance your project and discuss specific requirements, please don’t hesitate to reach out to our experienced sales team for personalized assistance and support.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: Direct | Indirect
  • Operating Temperature: -40°C to 55°C
  • Lifetime Hours: 50,000 hrs
  • Input: 24V
  • LED Chip: SMD
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Material: Silicone
  • Applications: Cove, Decorative, Display, Facades, Furniture, Landscapes, Swimming Pools
