Flexus 8 RGBW/RGB

Product code: FX8-S-CCT-BA-F-IPR

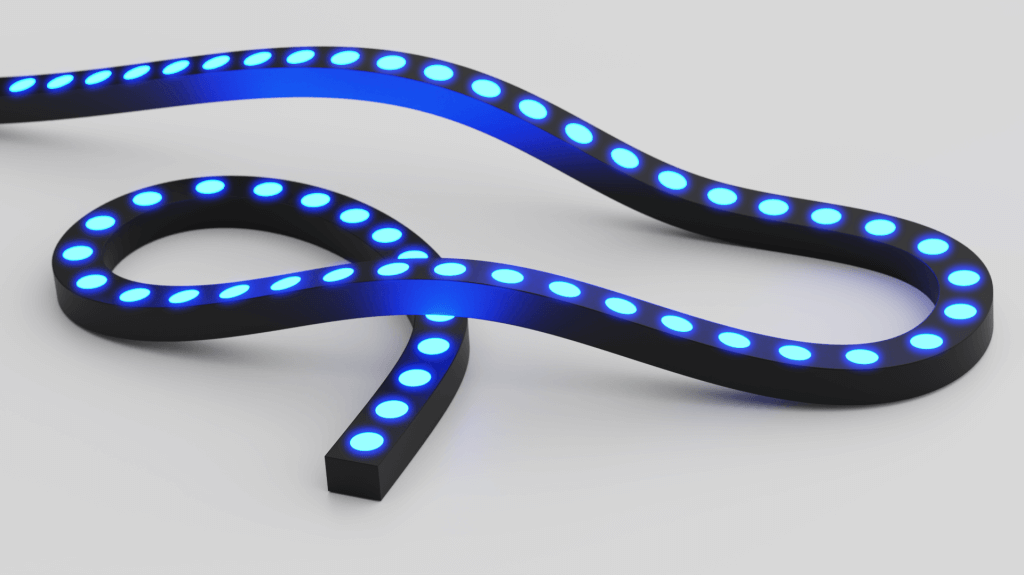

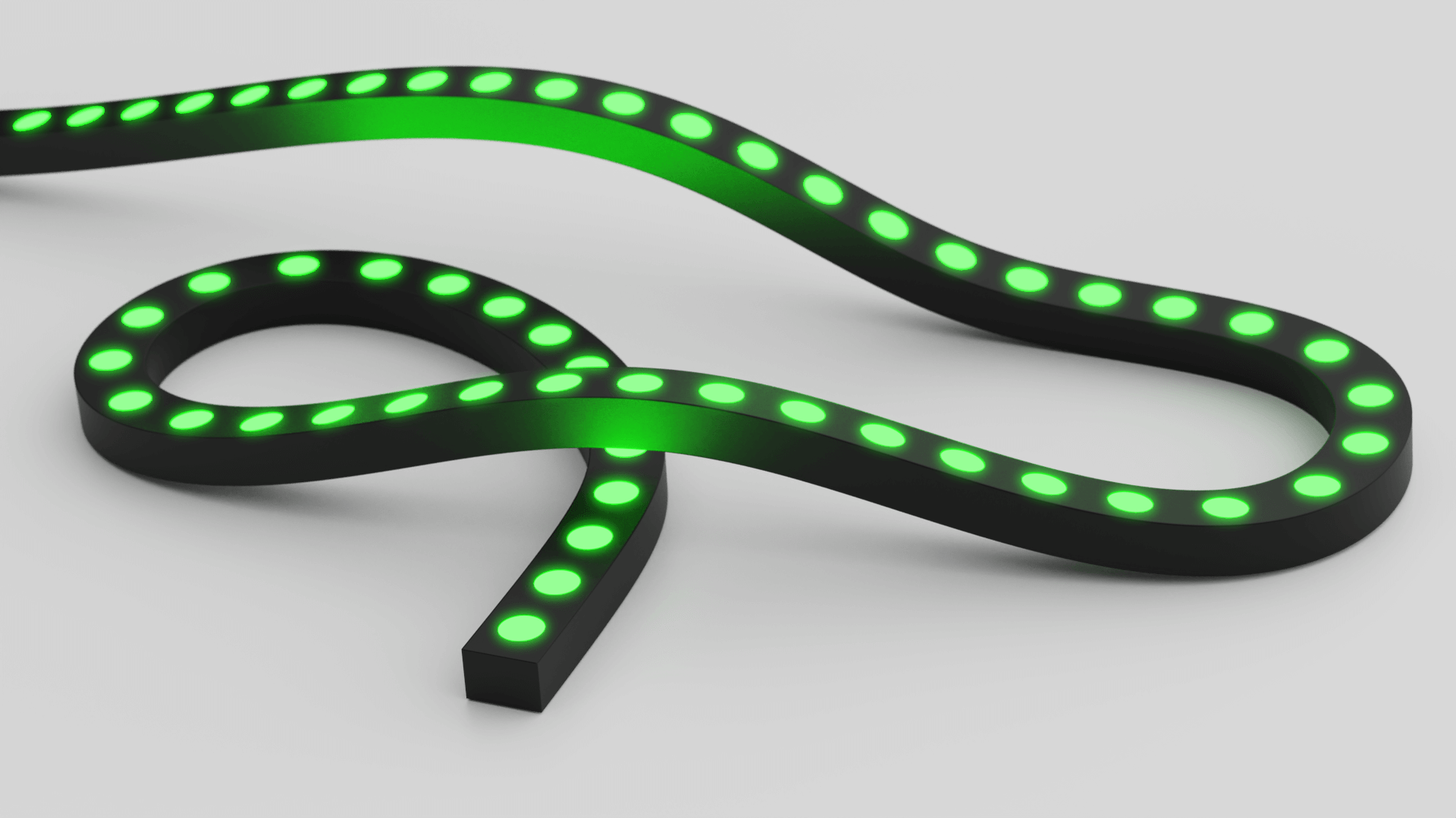

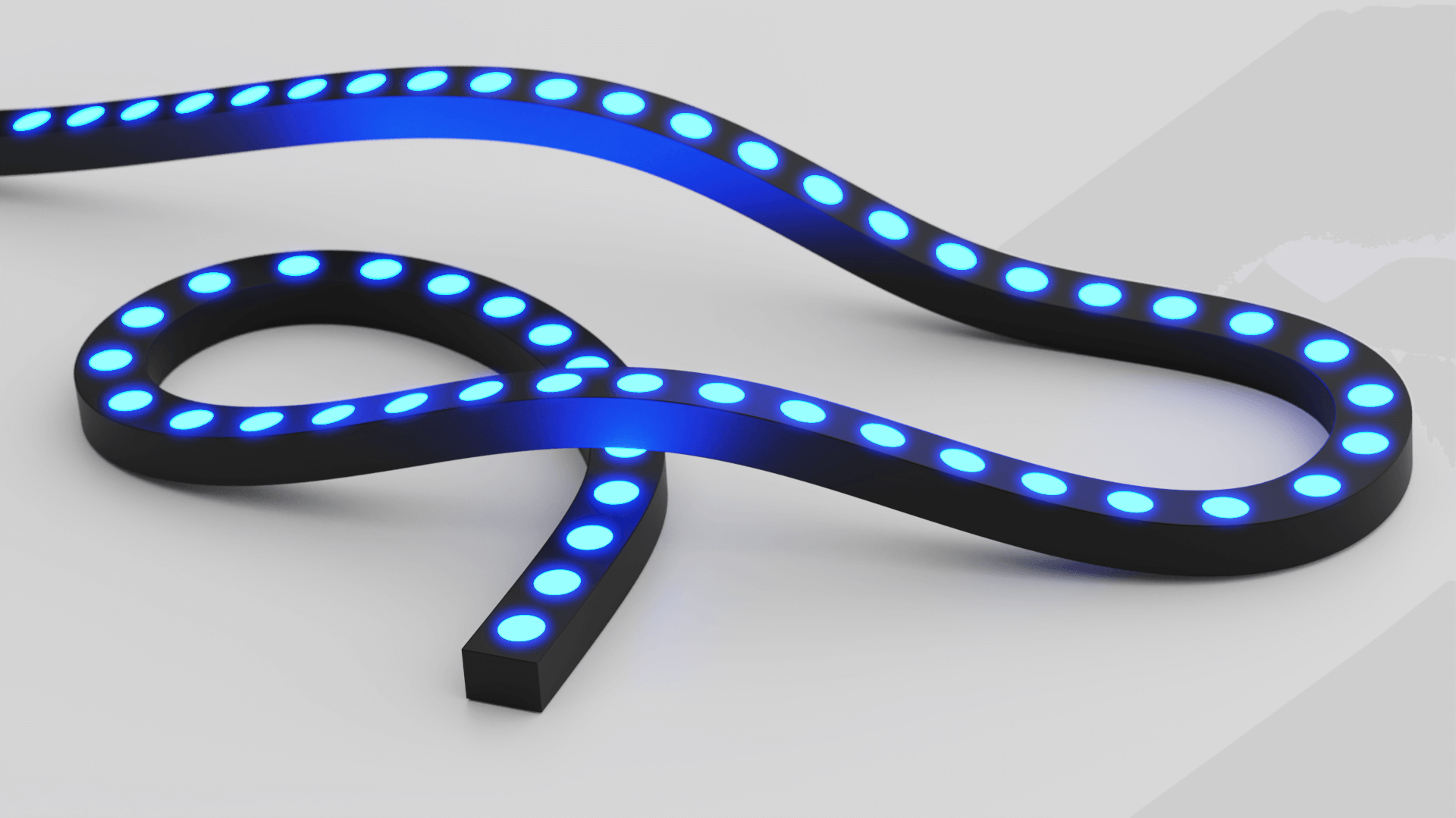

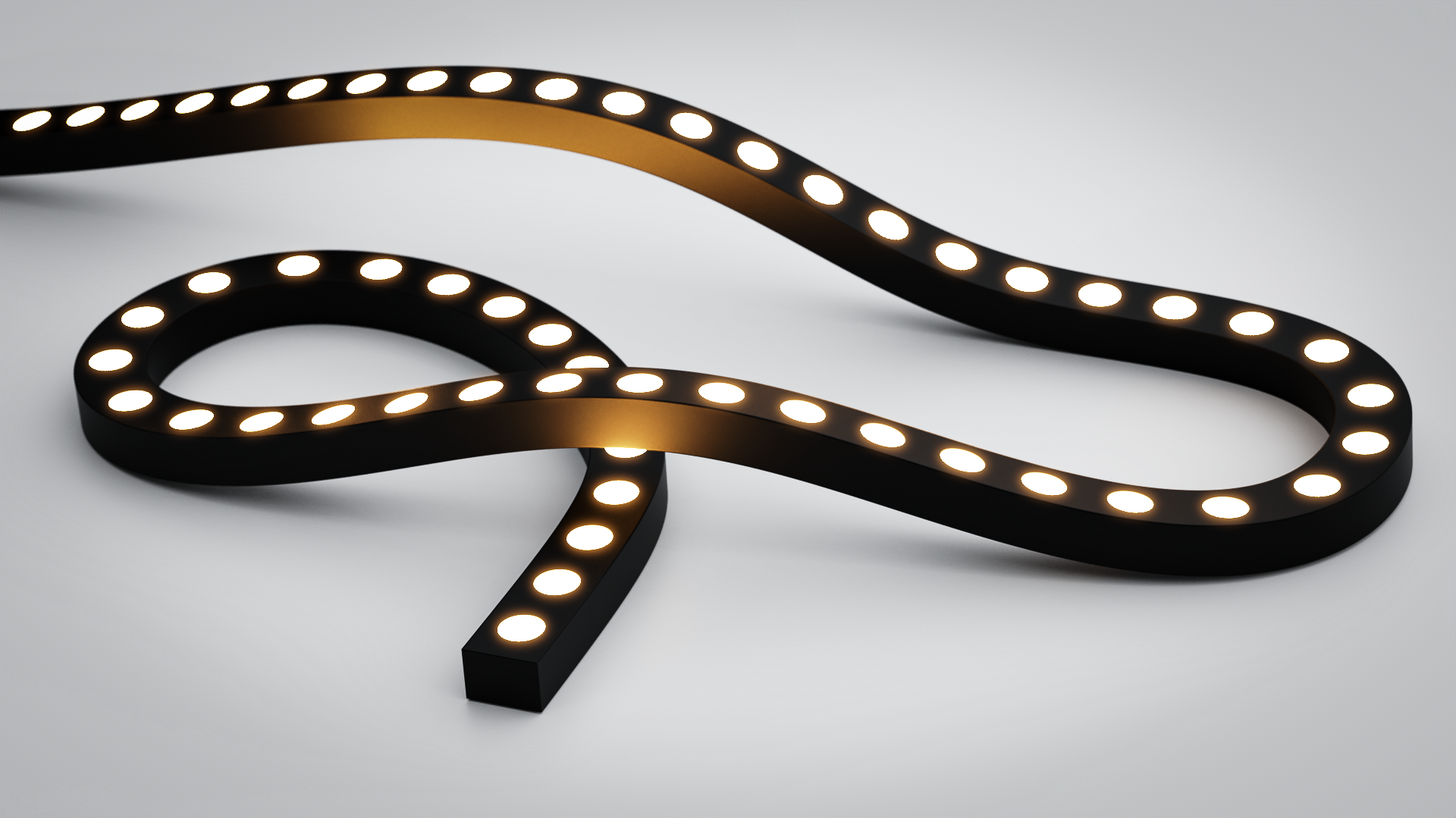

The Flexus 8 is a remarkable color-changing innovation, featuring a flexible linear LED fixture designed for both vertical and horizontal installations. It excels in applications such as wall grazing and illuminating curved surfaces like columns, making it an ideal choice. Flexus 8 can be installed using two types of straight aluminum channels, a curved serrated aluminum channel, or adjustable brackets, depending on the application. With an IP67 rating, it is perfect for outdoor use.

Flexus 8 comes with an asymmetric 20×40 beam angle, ideal for wall grazing. Operating efficiently at 24W per metre, it provides a luminous output of 1500 to 2000 lumens per metre from a 24V power source. The LEDs are spaced 35mm apart, and lengths from 250mm to 2000mm are available. It comes in RGBW and RGB versions to suit your specific color requirements. Choose from a Black or White finish, both featuring a UV-protected silicone coating and a unique self cleaning film. The Flexus 8 is designed to operate flawlessly in a wide temperature range, from -40°C to 55°C, and weighs approximately 1000g per metre.

For further inquiries about your specific project needs, please don’t hesitate to contact our sales team.

(Dynamic White also available – information to be added shortly – please ask our sales team)

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: Direct
  • IP Rating: IP67
  • Operating Temperature: -40°C to 55°C
  • Lifetime Hours: 50,000 hrs
  • Input: 24V
  • LED Chip: Nichia
  • Weight: 1000g
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Material: Silicone
  • Applications: Facades, Planters, Wall Washing
