Fortis 3

Product code: FOR3-CCT-BA-F-CW-BR-L

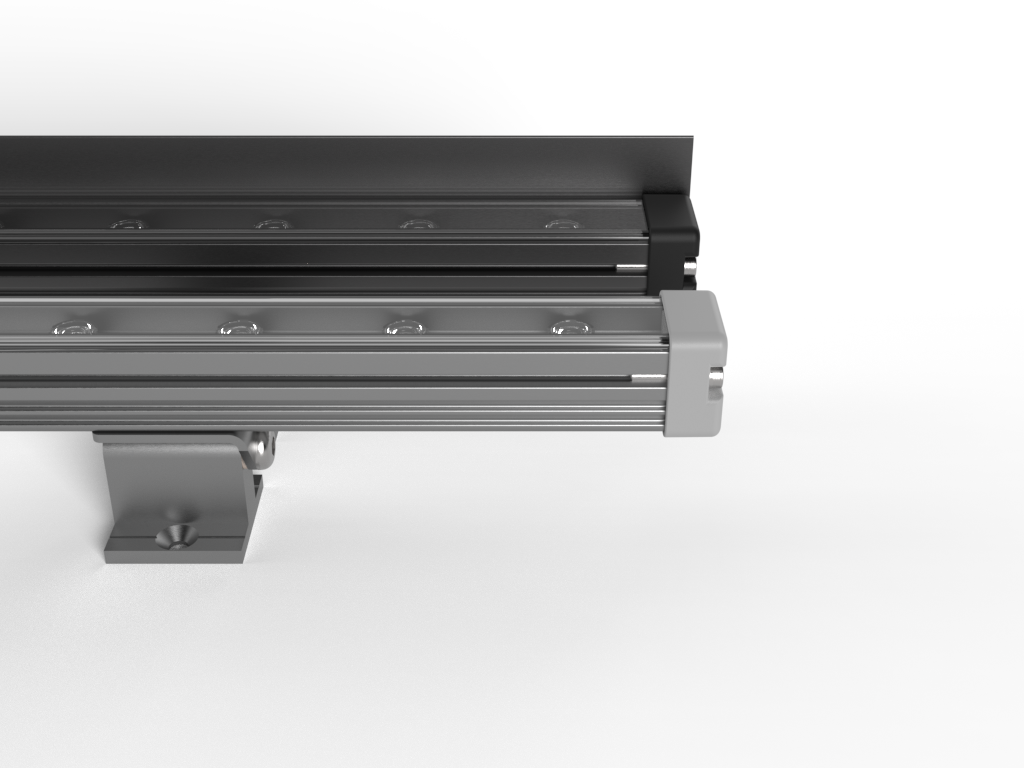

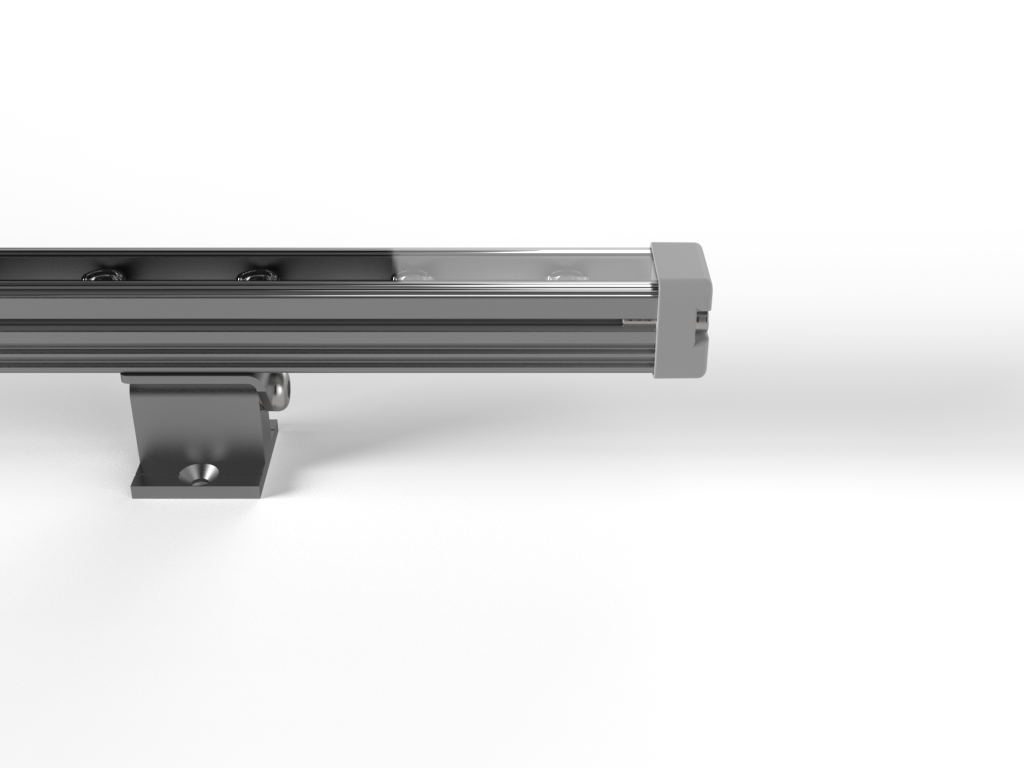

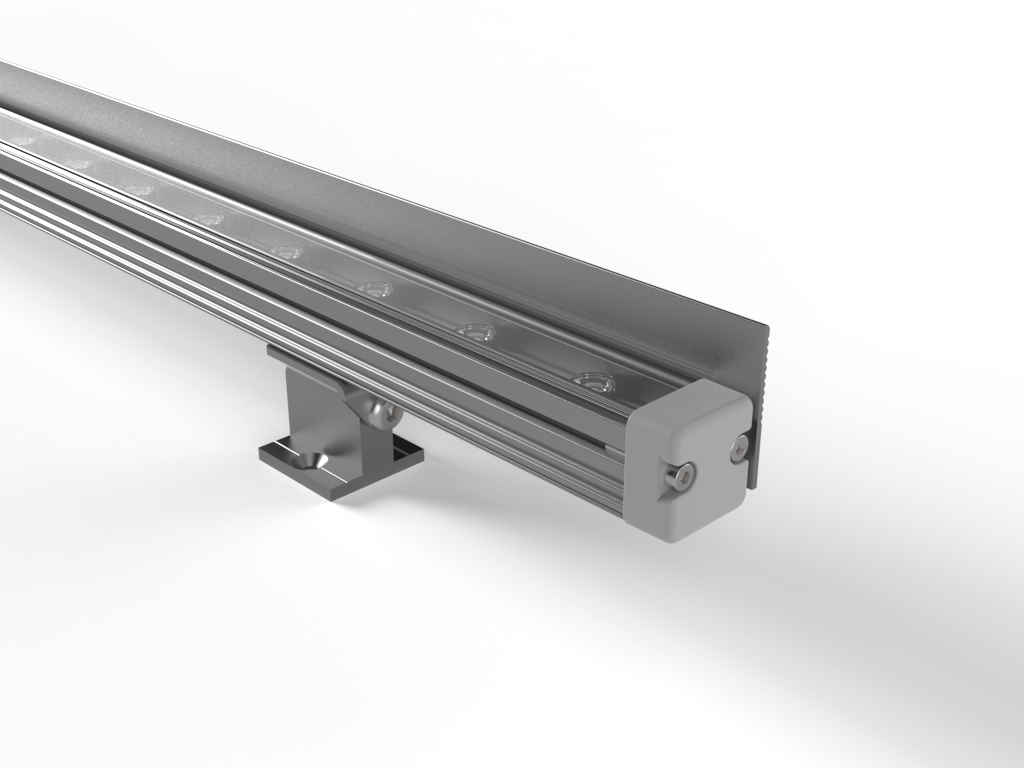

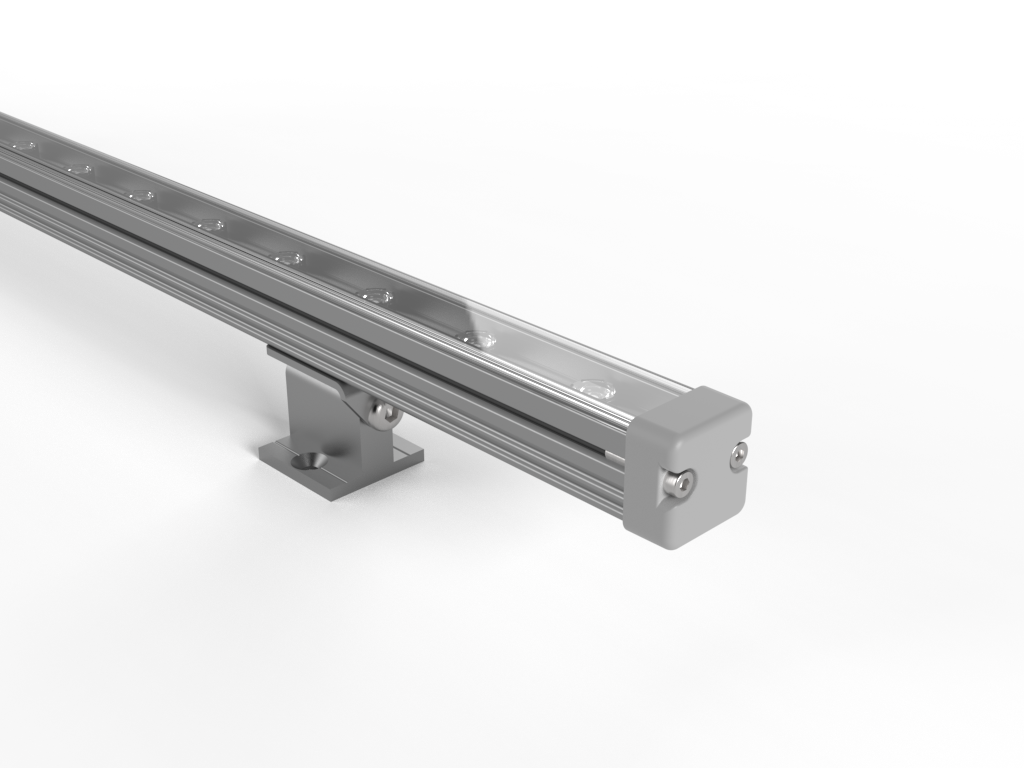

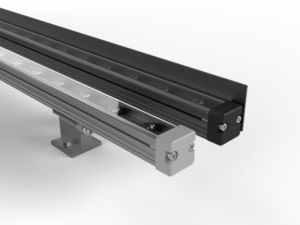

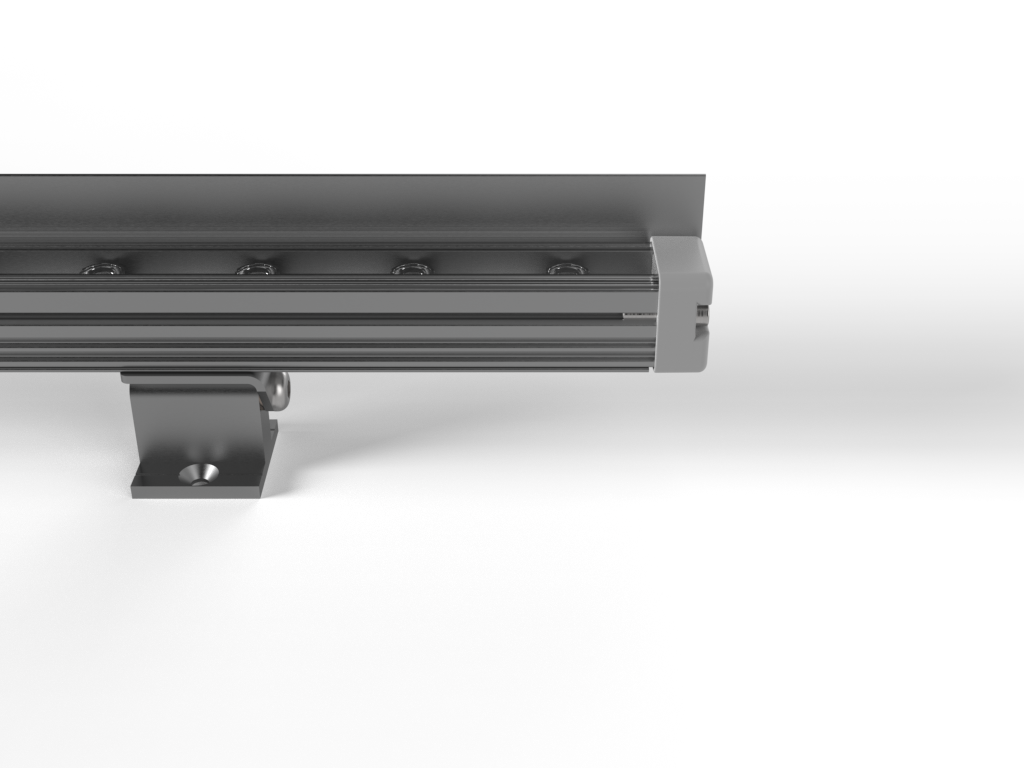

Fortis 3 is a stylish and compact, medium power IP67 linear solution for wall washing and facade lighting for large or small projects due to its unique, economical design. Designed around the high quality Soeul Z5 LED which has an impressive lumen output of 3439 per mtr. Available in various lengths starting from as small as 560mm, up to 2520mm in increments of 140mm, so offering shadow free lighting for the most challenging of shapes or architectural features. Fortis 3 is available in various optics from 15deg, 25deg, 35deg, 45deg, 60deg and 15x50deg and in Black, White or Anodised Aluminium finish and we also offer custom RAL solutions too. Please talk to our sales team to discuss your project further.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: Indirect
  • Operating Temperature: -25°C to 55°C
  • Lifetime Hours: 50,000 @ 25C
  • Input: 1400mA
  • LED Chip: Soeul
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Applications: Facades, Landscapes, Wall Washing
