Proteus 4040 S

Download Specifications Configure product to generate custom specification

Proteus 4040 S

Download Specifications Specs Configure product to generate custom specification

Proteus 4040 S

Product code: PRO4040-S-W-CCT-CTRL-CVR-F

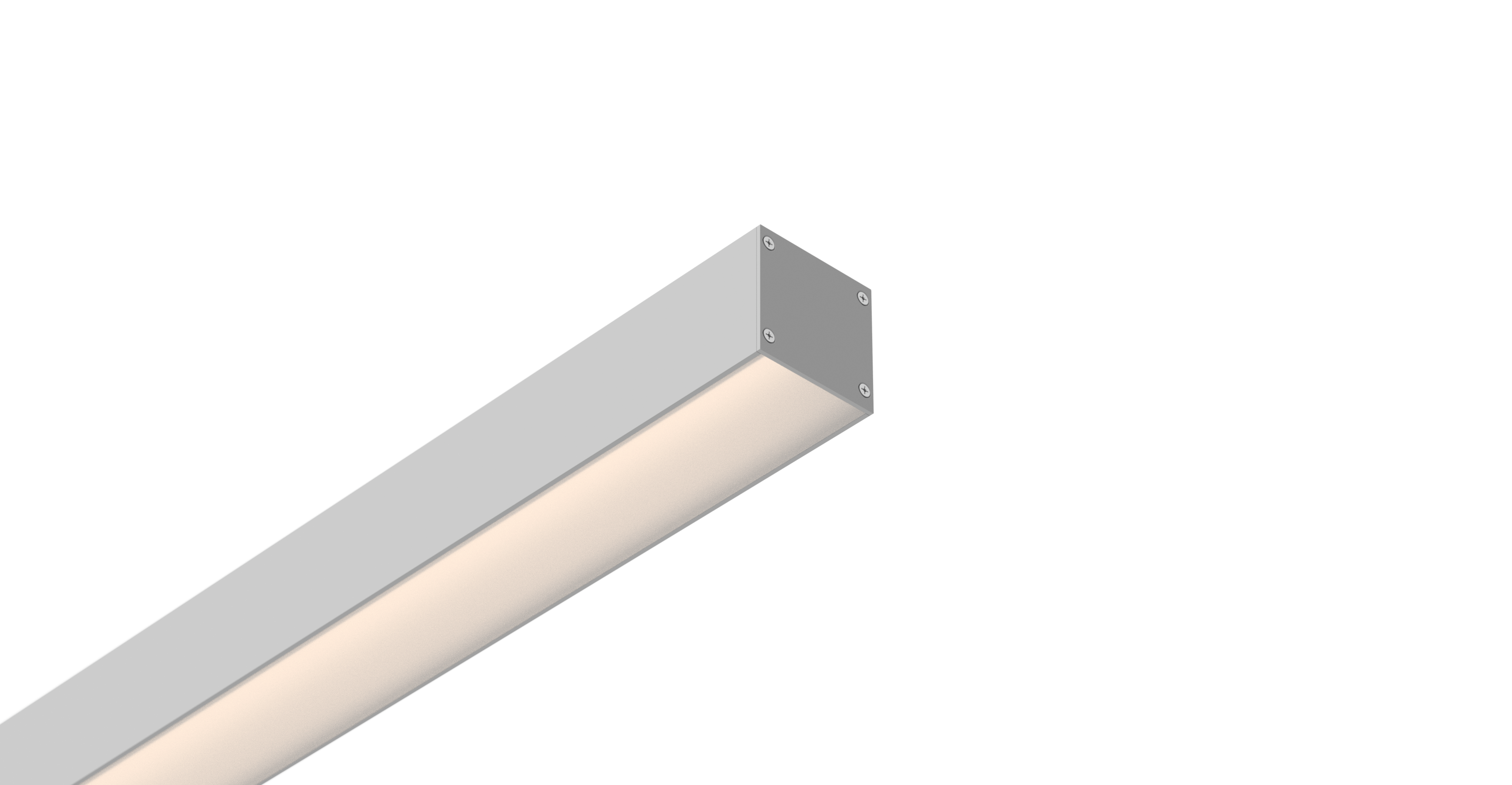

The Proteus 4040 S emerges as a versatile and visually appealing surface-mounted 24V linear LED lighting system, delivering consistent lines of uniform direct illumination. Engineered to suit a range of settings, from offices and commercial spaces to retail outlets and educational institutions, its sleek, contemporary design elevates any environment.

A standout feature of the Proteus 4040 S is its offering of color temperature options: 2200K and 4000K. Furthermore, you have the choice between 80 and 90 CRI (Color Rendering Index), tailoring the lighting ambiance to your specific location and preferences.

With four different output levels—19W, 15W, 9W, and 5W—the system caters to varied lighting requirements. To enhance customization, two types of diffusers are available: Frosted or Micro-prismatic. The Frosted diffuser diffuses light softly, while the Micro-prismatic option provides clear and precise illumination, enabling you to achieve your desired aesthetic and lighting distribution.

For dimming flexibility, the Proteus 4040 S supports multiple methods, including remote dimming gear with DALI, 0-10V, DMX, and Bluetooth Casambi control. This adaptability empowers you to control lighting intensity and create dynamic scenes according to your preferences. Alternatively, a switched system is offered, along with a 3-hour emergency option for added safety.

Regarding finishes, standard options include Black, White, and natural Aluminum. However, for projects with specific color requirements, custom RAL colors can be requested, ensuring seamless integration with your design scheme.

Available in various lengths, the Proteus 4040 S provides freedom in selecting the size that best fits your project’s needs, whether you require a compact solution or an extensive linear installation.

For further inquiries or detailed project discussions, it’s recommended to contact the sales team. They can offer additional information and assistance, ensuring the Proteus 4040 S aligns with your specific requirements and helps achieve your desired lighting goals.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: Direct
  • IP Rating: IP40
  • Operating Temperature: -25°C to 50°C
  • Lifetime Hours: 50,000
  • Input: 24V
  • LED Chip: Nichia
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Material: Aluminium
  • Applications: General Lighting
