Proteus B

Product code: PRO-B-W-CCT-CVR-IPR-BR-EC-L

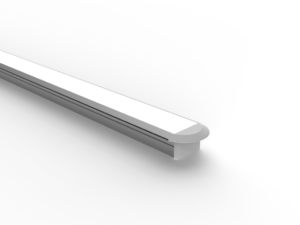

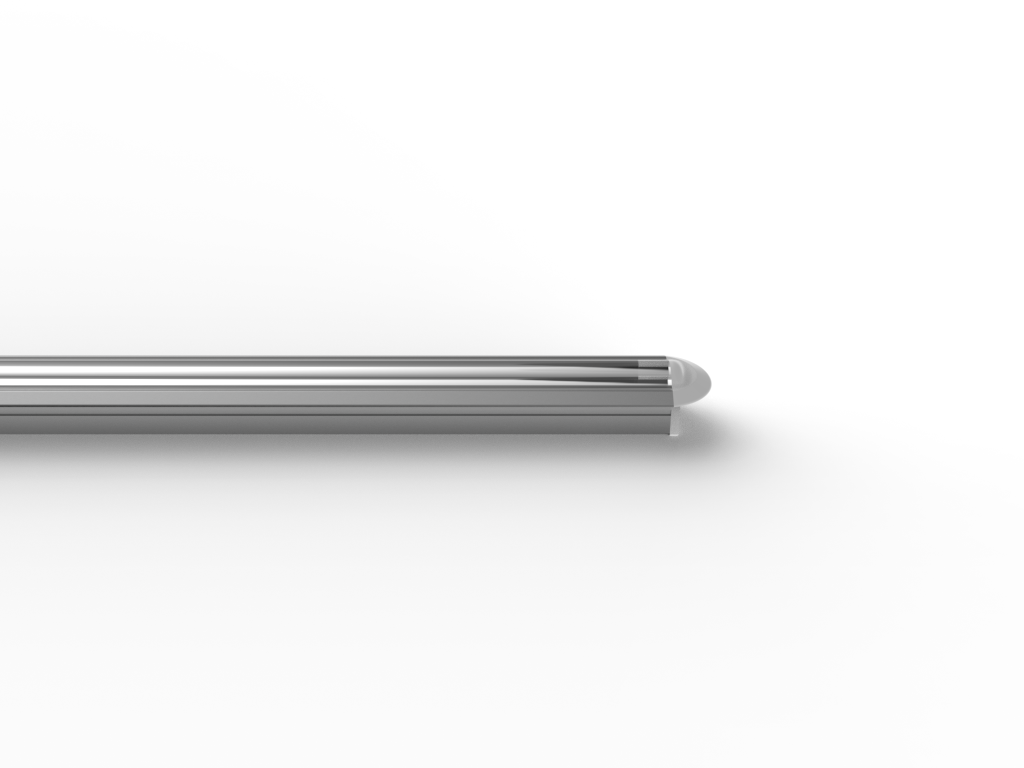

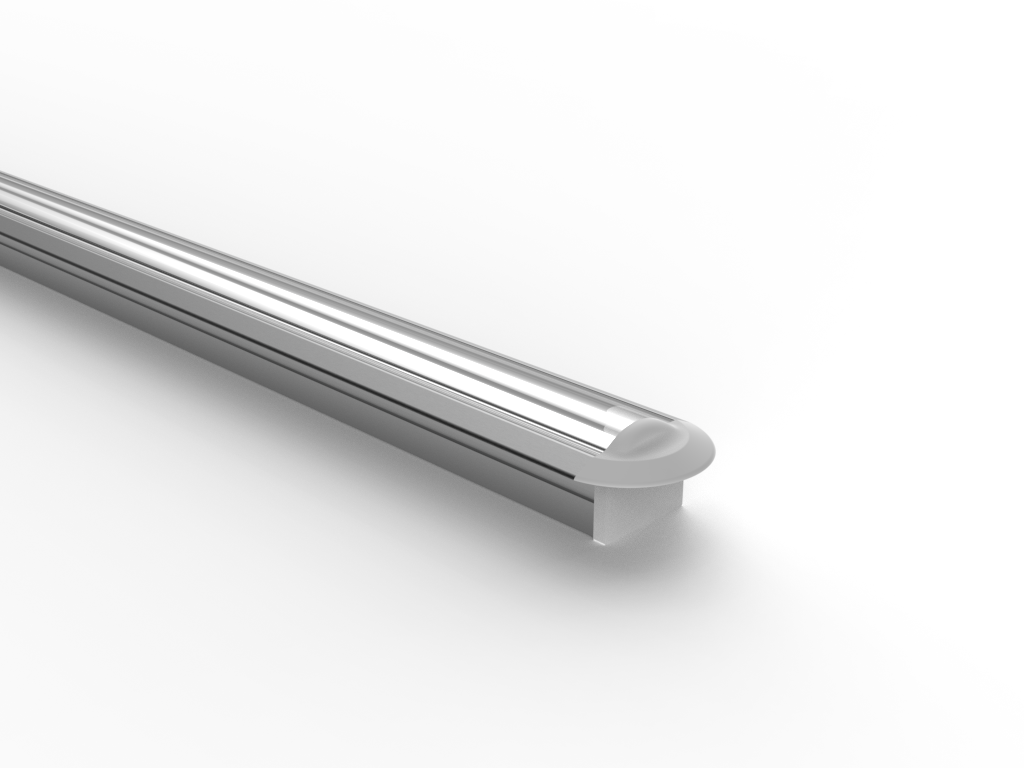

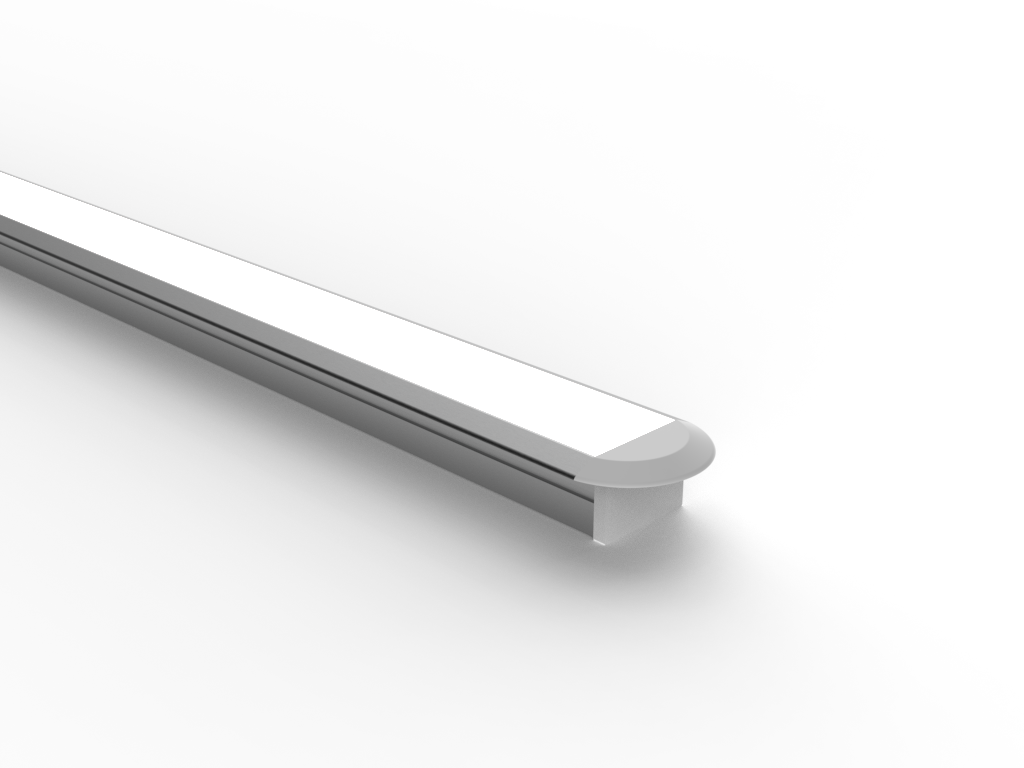

Proteus B is an ideal linear Led solution which can easily be integrated into wooden shelving, cabinets, ceilings and furniture of all types. Various colour temperatures are available ranging from 2200K through to 5700K and in 80 and 90 CRI options depending on the application. This profile provides a totally homogeneous lit effect without any spotting of the Leds by incorporating our 120degree, 16mm wide Opal acrylic diffuser for a smooth subtle line of light. We can also offer a 12degree lense for more focused installations or just a simple clear 120degree diffuser for maximum lumen output. Available in 3 power options of 17W, 11W and 7W per mtr and with DALI, 0-10V, Bluetooth Casambi dimming control or just simply switched. There are two options for the fixing bracket which are surface fixed or by a spring clip for recessing. Available in lengths from 70mm up to 2973mm and in 50mm increments to suit almost any application and in IP54 or IP67 options. Please talk to our sales team to discuss your project further.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: Direct | Indirect
  • Operating Temperature: -25°C to 55°C
  • Lifetime Hours: 50,000 @ 25C
  • Input: 24V
  • LED Chip: Luxeon
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Applications: Furniture, General Lighting
