Proteus RXL DW

Product code: PRO-RXL-DW-W-CCT-CCT2-CRI-CVR-IPR-BR-L

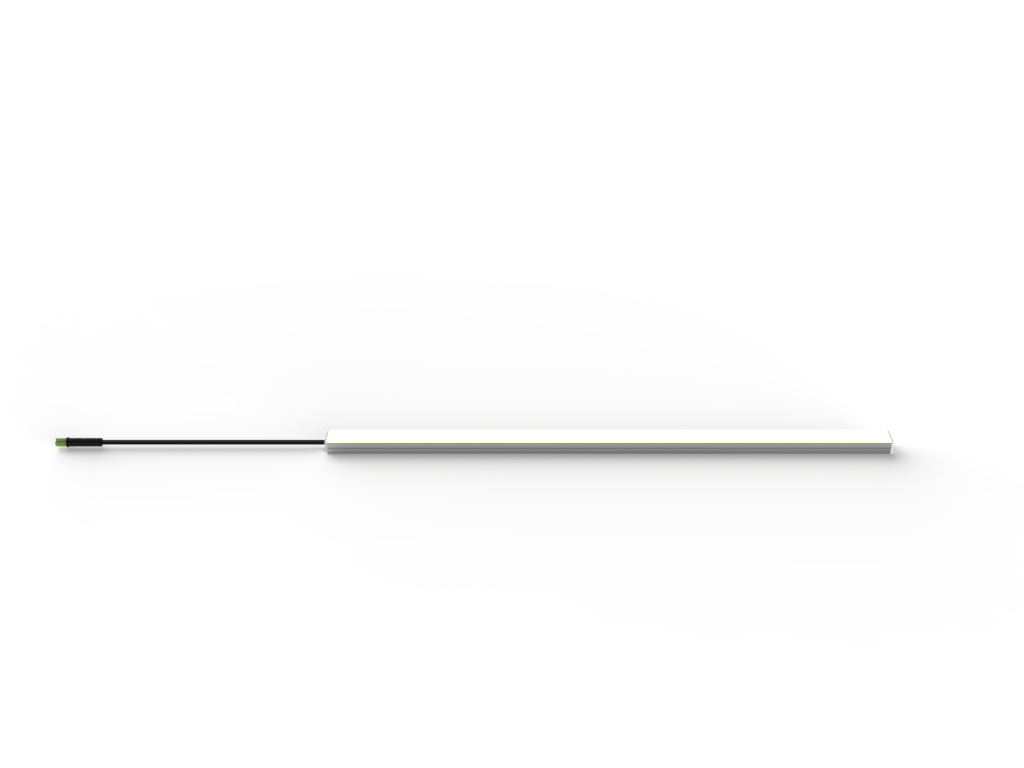

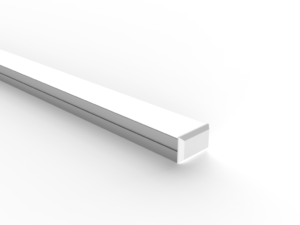

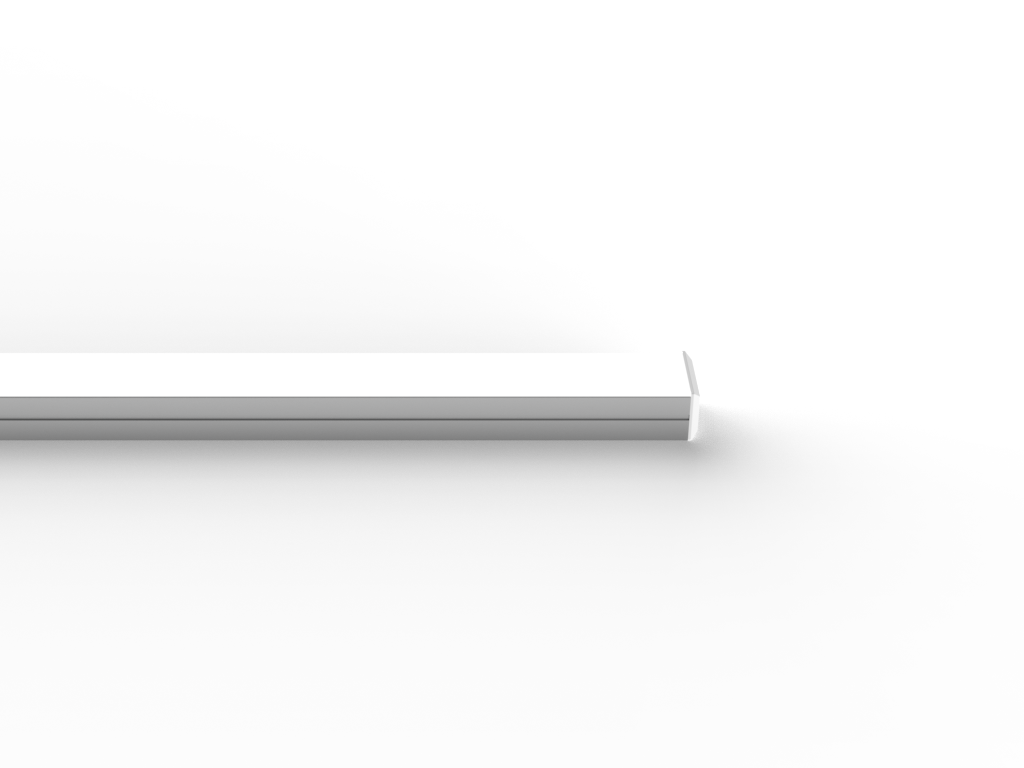

Proteus RXL in Dynamic White is a high quality in-direct linear Led luminaire which is ideal for subtle changes in colour temperature that can transform venues & spaces. Recent studies on Circadian Ryhthm show how variations in natural light temperature from dawn to dusk, affect peoples wellbeing. This product has a range in temperature starting from a very Warm White in 2200K, right through to a Cool White of 5700K and with 80 & 90 CRI options. Lumen output for the 22W system is an impressive 2880 lumens per metre whilst the 17W system delivers a 2282 lumens per metre from the high quality Luxeon Leds. Profile dimensions are 20mm width by 13mm depth. Proteus RXL is supplied in a range of lengths from as little as 72mm up to 2925mm and in 50mm increments so providing shadow free lighting for even the most challenging of architectural features. Optional diffusers of Opal for a homogenous, dot free effect, or with clear for maximum lumens. Dimmable via DALI, DMX or with Bluetooth Casambi integration. Available with adjustable or fixed brackets and in IP54. Please talk to our sales team to discuss your project further.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: Indirect
  • Operating Temperature: -25°C to 55°C
  • Lifetime Hours: 50,000 @ 25C
  • Input: 24V
  • LED Chip: Luxeon
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Applications: Cove, Furniture
