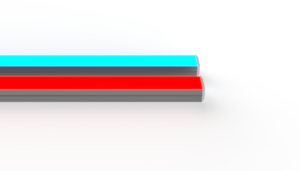

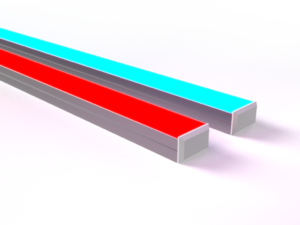

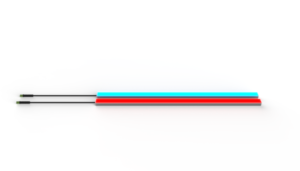

Proteus RXL RGBW

Product code: PRO-RXL-RGBW-W-CVR-IPR-M-L

Proteus RXL RGBW is a sleek linear colour changing Led luminaire for applications such as back lighting stretch ceilings, in-direct coves and eye-catching displays. The dimensions of this profile are just 20mm in width by 13mm depth and comes with opal or clear diffusers. This fixture is designed using the high intensity Nichia Led and uses 5700K for the White as standard and runs at just 19.2W per mtr based on all 4 colours on at 100%. Proteus RXL can be supplied with either DALI or DMX control, both with Bluetooth Casambi integration if required. Lengths range from 189mm up to 2858mm and in 166mm increments so various lengths are available to suit most applications. Proteus RXL is supplied with standard stainless brackets for surface mounting and in IP54 or IP67. Please talk to our sales team to discuss your project further.

Configure your productConfigure
Technical specificationsTech specs
  1. Control options
  2. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: Direct | Indirect
  • IP Rating: IP54 IP67
  • Operating Temperature: -25°C to 55°C
  • Lifetime Hours: 50,000 @ 25C
  • Input: 24V
  • LED Chip: Nichia
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Applications: Cove, Display
