Product code: PRO-RXL-W-CCT-CVR-IPR-BR

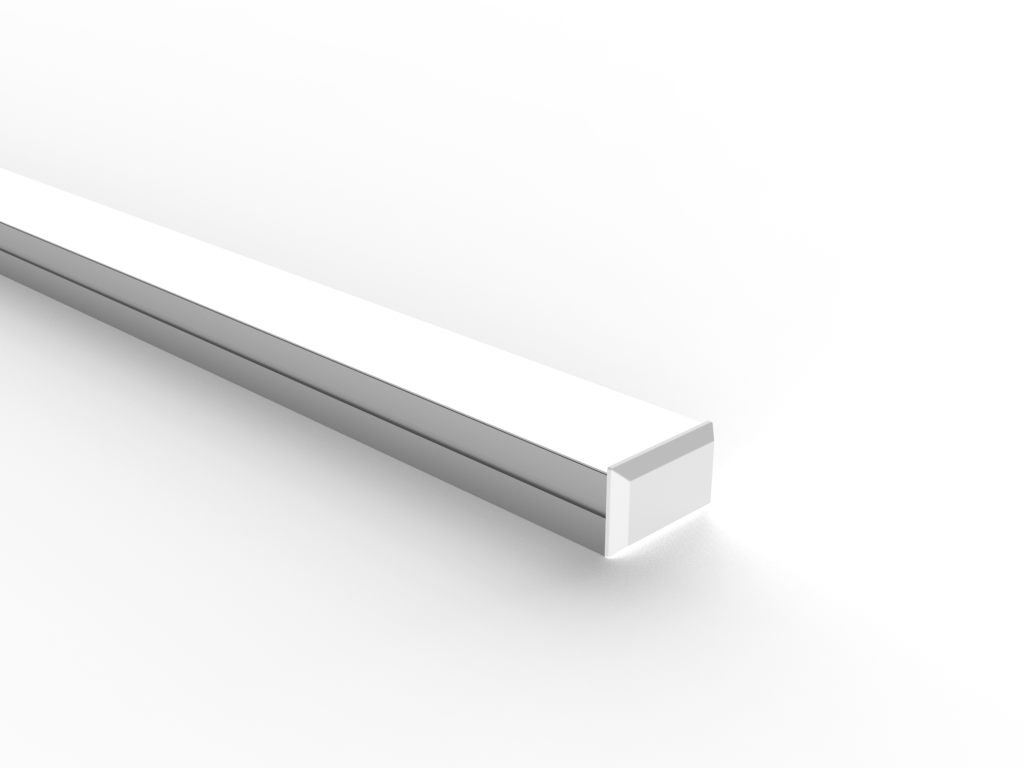

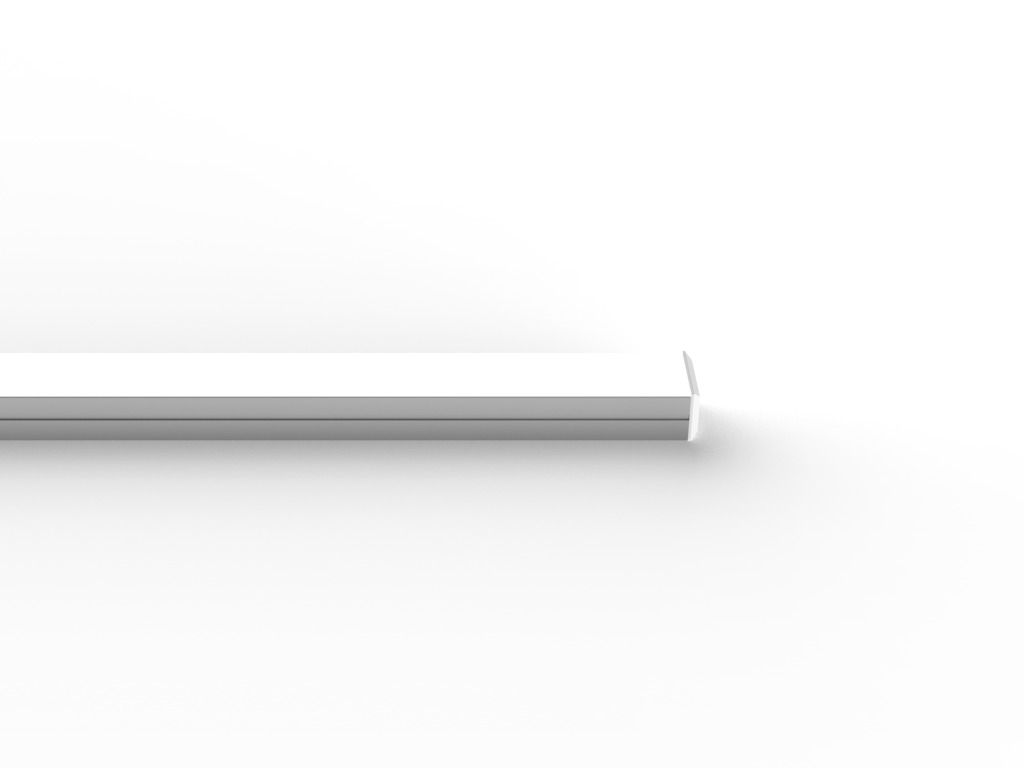

Proteus RXL is a high quality in-direct linear Led luminaire which is a proven choice for many of the UKs lighting designers due to the high efficacy of 132lm per watt and the quality of light that the Luxeon led delivers. Available in colour temperatures ranging from 2200K up to 5700K and with options in 80 & 90 CRI. Choose from 3 different power options in 17W, 11W and 7W per mtr. Proteus RXL is supplied in a range of lengths from as little as 72mm up to 2925mm and in 50mm increments so providing shadow free, 120degree lighting for even the most challenging of architectural features. Optional diffusers of Opal for a homogenous, dot free effect, or with clear for maximum lumens. Profile dimensions are 20mm width by 13mm depth. Dimmable via DALI, 0-10V, Phase, DMX, Bluetooth Casambi or switched drivers. Available with adjustable or fixed brackets and in IP54 and IP67. Please talk to our sales team to discuss your project further.
- Control options
- Physical Attributes
- Light Distribution: Indirect
- Operating Temperature: -25°C to 55°C
- Lifetime Hours: 50,000 @ 25C
- Input: 24V
- LED Chip: Luxeon
- Warranty: 5 Years
- ROHS Compliant: Yes
- Applications: Cove, Furniture, General Lighting
Download documentsPlease select the documents you would like and click the download button.
Please select the documents you would like and click the download button.
Project: Dubai Mall, UAE
Project: ICEPS, University of Leeds
Project: King Cross Square
Project: 1 Bank Street, London
Project: Heathrow Airport T3 IDL, London
Project: Heathrow T5 First Class Wing, London
Project: Lutron Experience Centre, London
Project: The Berkeley Hotel, London
Get inspiration from the commercial lighting solutions and projects we have completed across the globe. See our products in action.
