Proteus S

Product code: PRO-S-W-CCT-CVR-IPR-CE-BR

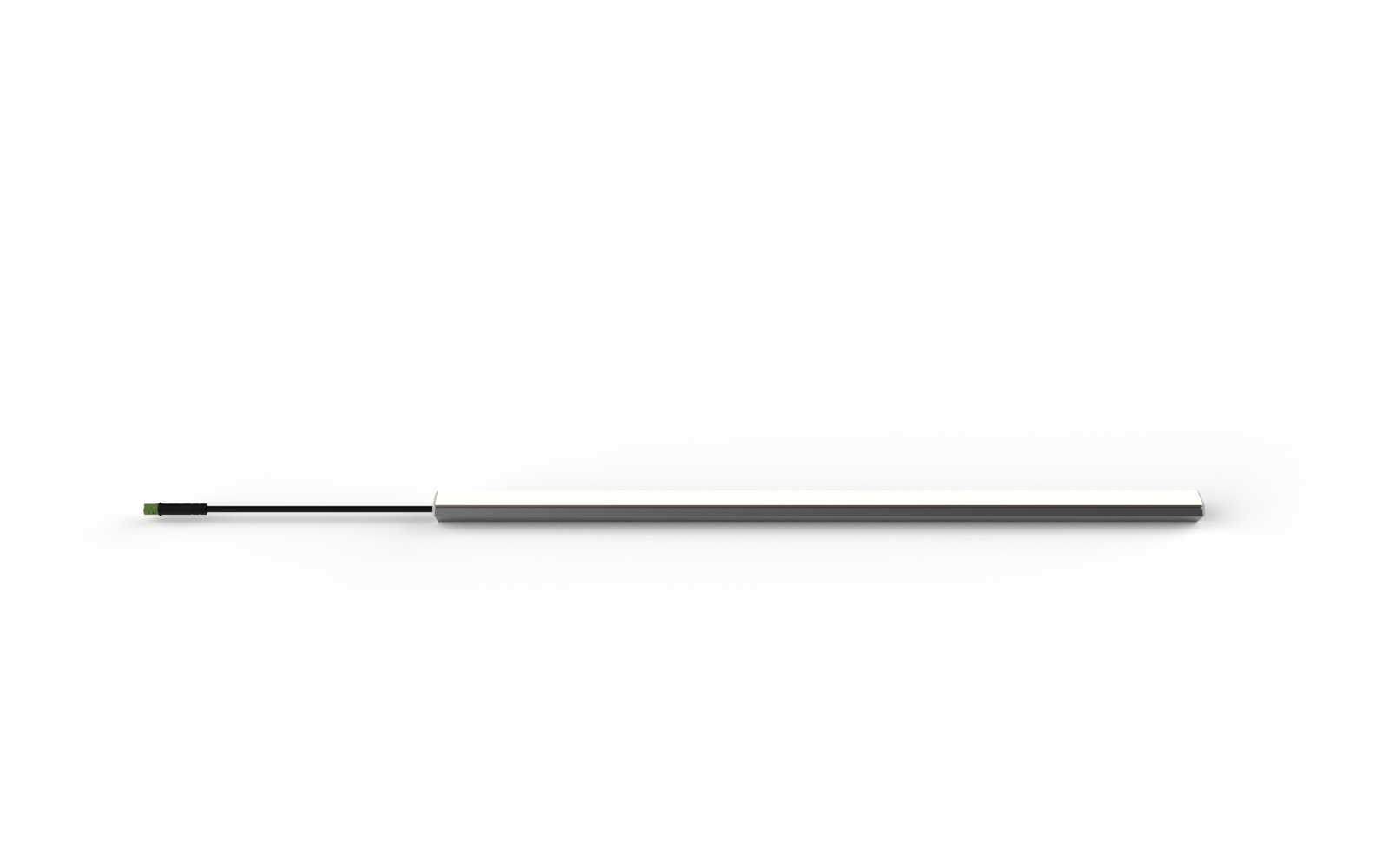

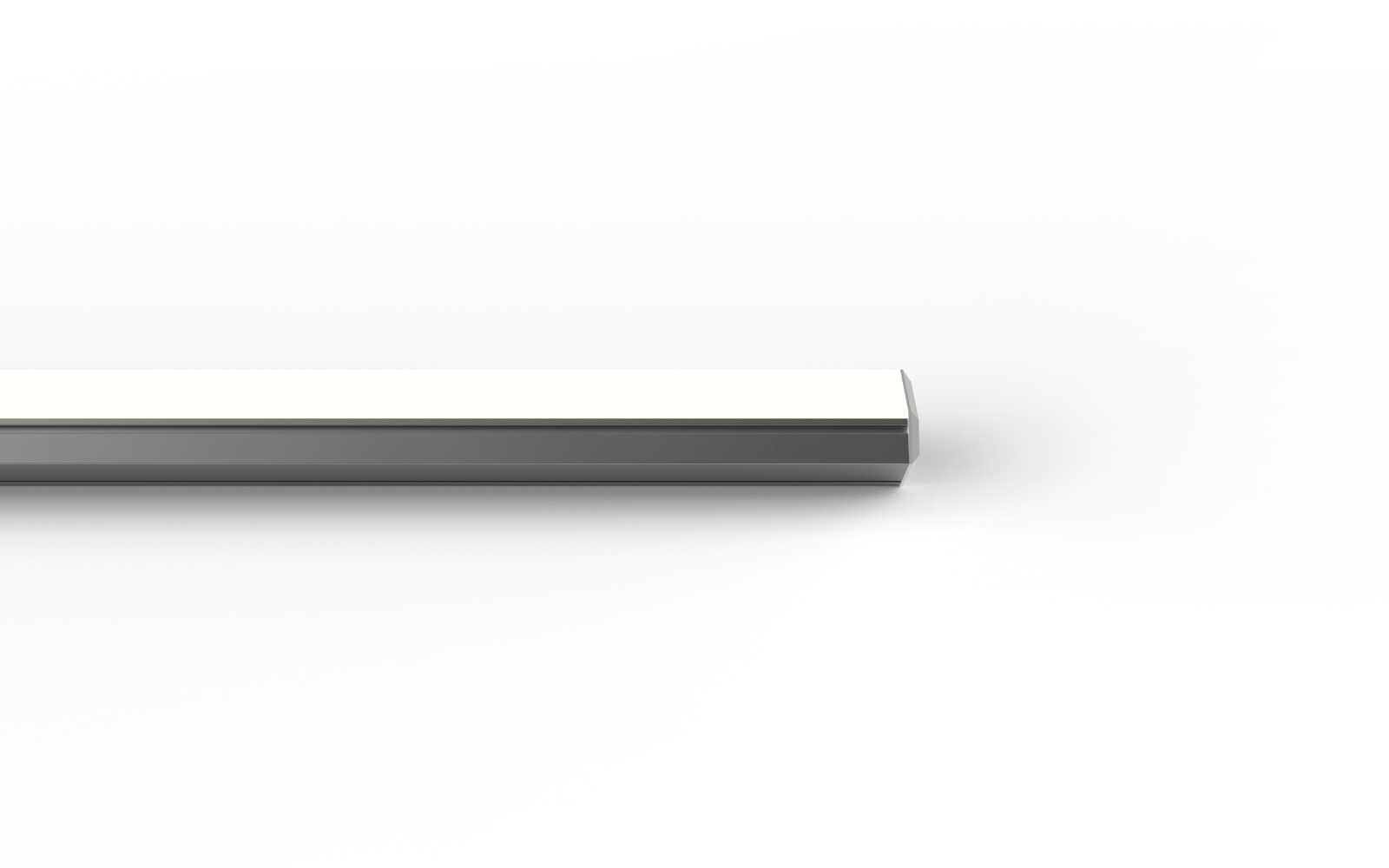

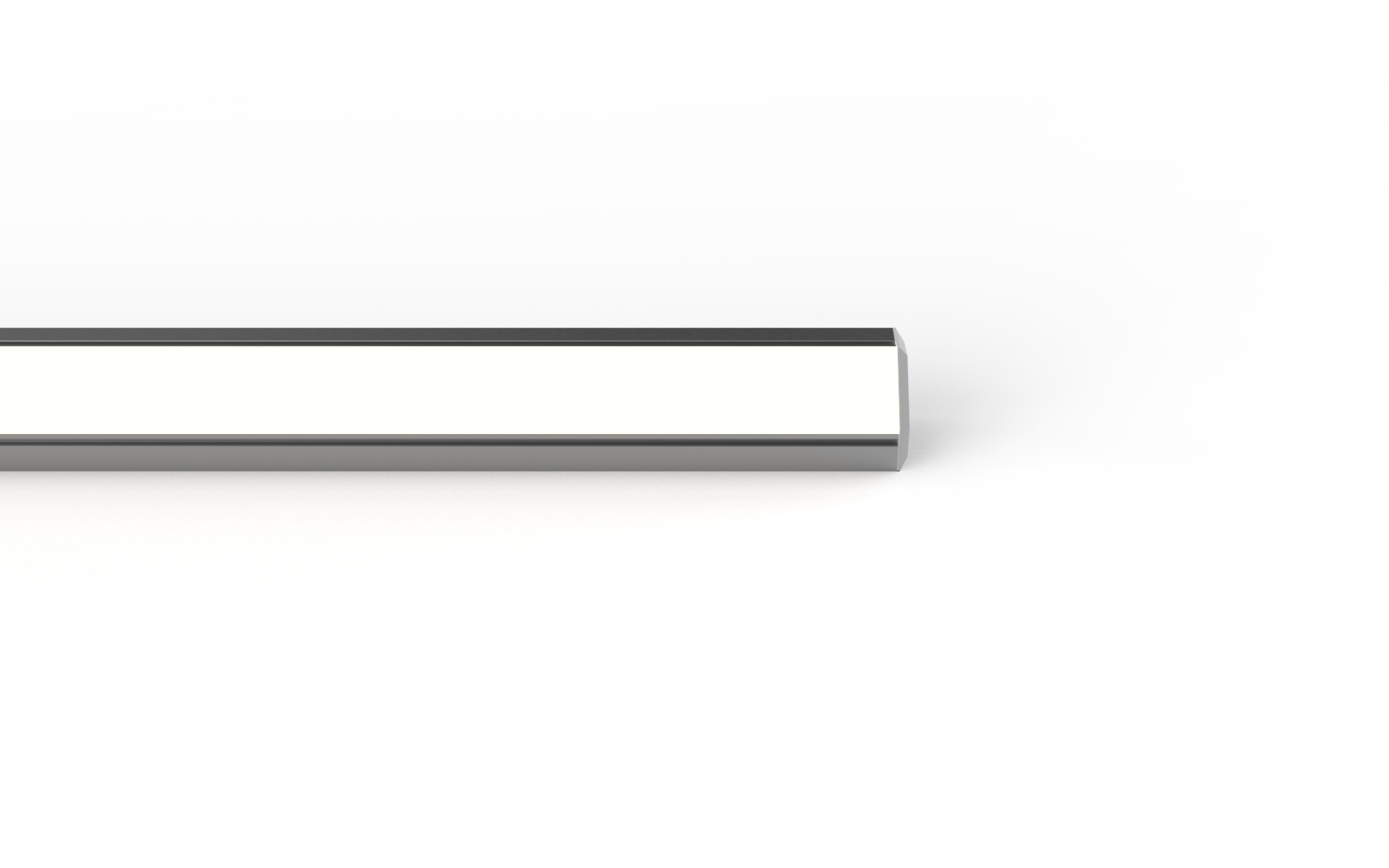

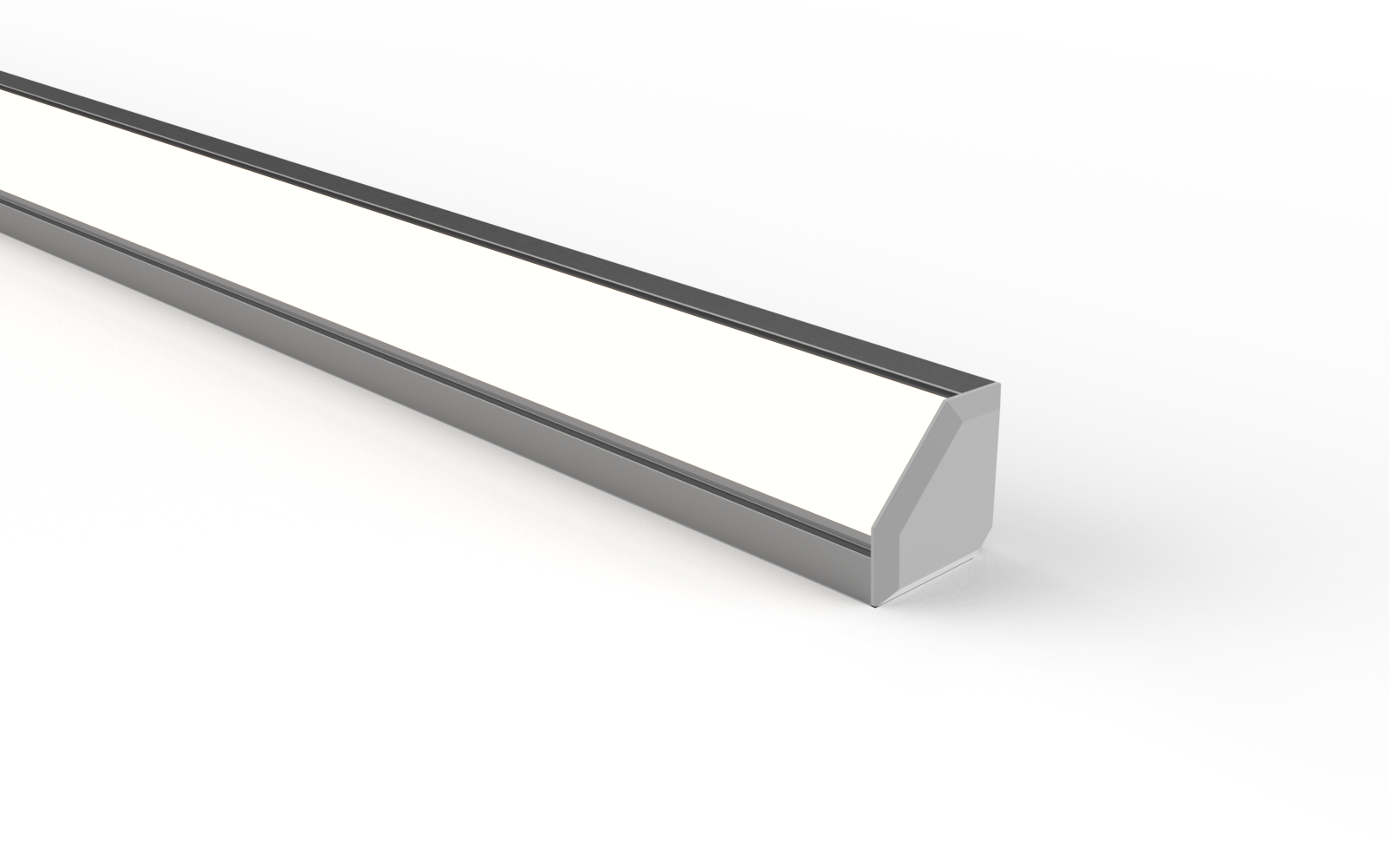

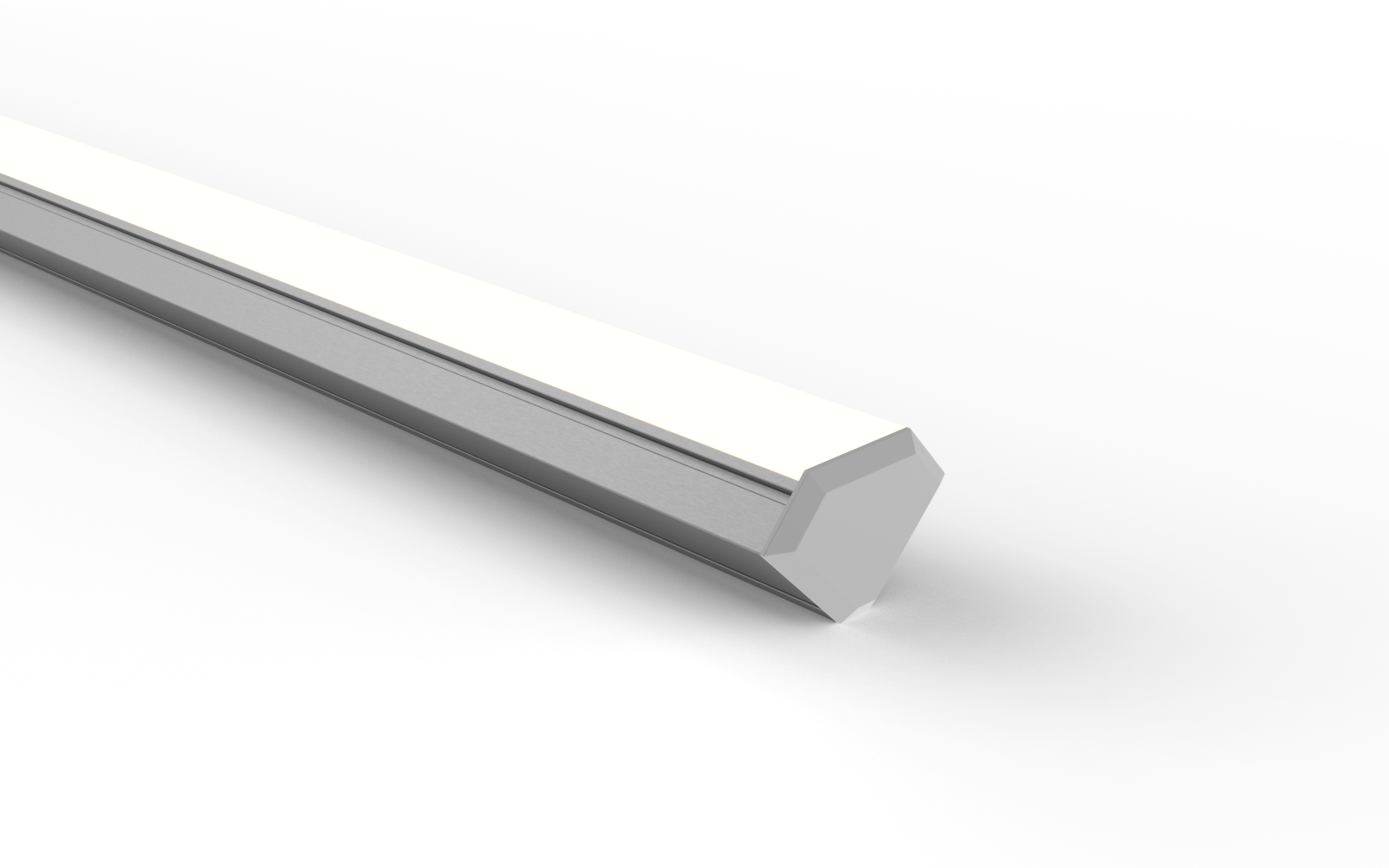

The Proteus S stands out as a premium 45-degree corner-mounted linear LED luminaire, meticulously crafted for seamless integration into shelving and cabinets, leveraging the latest in cutting-edge LED technology. Offering versatility across color temperatures from 2200K to4000K, with options available in both 80 and 90 CRI, it provides optimal lighting solutions. Select from four power variations: 19W, 15W, 9W, and 5W per metre, ensuring adaptable illumination. Available in lengths ranging from 70mm to 2923mm, adjustable in 50mm increments, it delivers shadow-free lighting, even in complex designs. With options for adjustable or fixed brackets, and offered in both IP54 and IP67 ratings, it guarantees durability and flexibility. Choose between opal diffusers for a uniform, dot-free effect, or clear for maximum lumens, with an additional 25-degree lens option for focused lighting. Enjoy dimming capabilities via DALI, 0-10V, Phase, DMX, or Bluetooth Casambi integration, allowing seamless control through Android, iPhone, or iPad devices, making it perfect for residential and hospitality settings. For further project discussions and tailored solutions, please engage with our dedicated sales team.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: Indirect
  • Operating Temperature: -25°C to 55°C
  • Lifetime Hours: 50,000 @ 25C
  • Input: 24V
  • LED Chip: Luxeon
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Applications: Display, Furniture
