Proteus W Cove

Product code: PRO-W-W-CCT-CVR-IPR-F-L

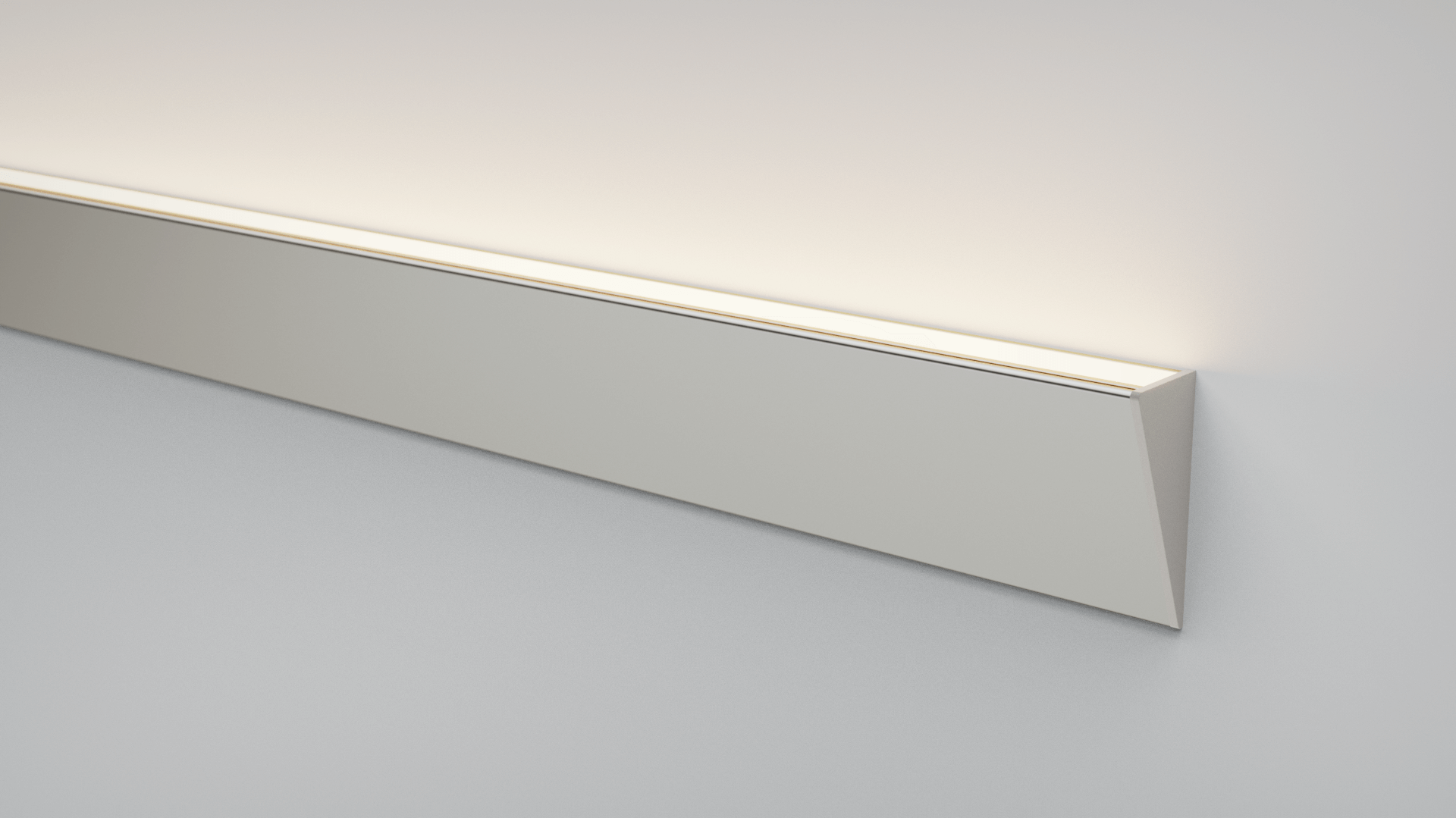

Introducing Proteus W Cove, a versatile surface-mounted linear profile designed to create stunning glows of indirect light along feature walls, offering a gentle, ambient wall wash.

With a range of color temperatures from 2200K to 4000K and options for 80 or 90 CRI, Proteus W Cove provides customizable lighting solutions.

Choose from four power options—5W, 9W, 15W, or 19W per metre, available in 2-metre lengths and designed for easy kit installation. Provide us with your dimensions, and we will supply the tape slightly oversized with soldered tails for simple driver connection. The aluminum profile can also be cut to your specified size upon approval, ensuring a seamless and flawless installation.

Achieve consistent, elegant lighting with your choice of opal or clear diffusers, and choose from a variety of dimming options, including DALI, 0-10V, Phase, DMX, Bluetooth Casambi, or switched drivers.

Elevate your lighting design with Proteus W Cove and enhance your space with a new level of sophistication.

Our expert sales team is ready to assist you with personalized guidance and project support.



Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: 120°
  • IP Rating: IP54
  • Operating Temperature: -25°C to 55°C
  • Lifetime Hours: 50000hrs
  • Input: 24V
  • LED Chip: Nichia
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Material: Aluminium
  • Applications: Cove, Wall Washing
