Regis 1

Product code: REG1-W-CCT-CVR-IPR-F-M-L

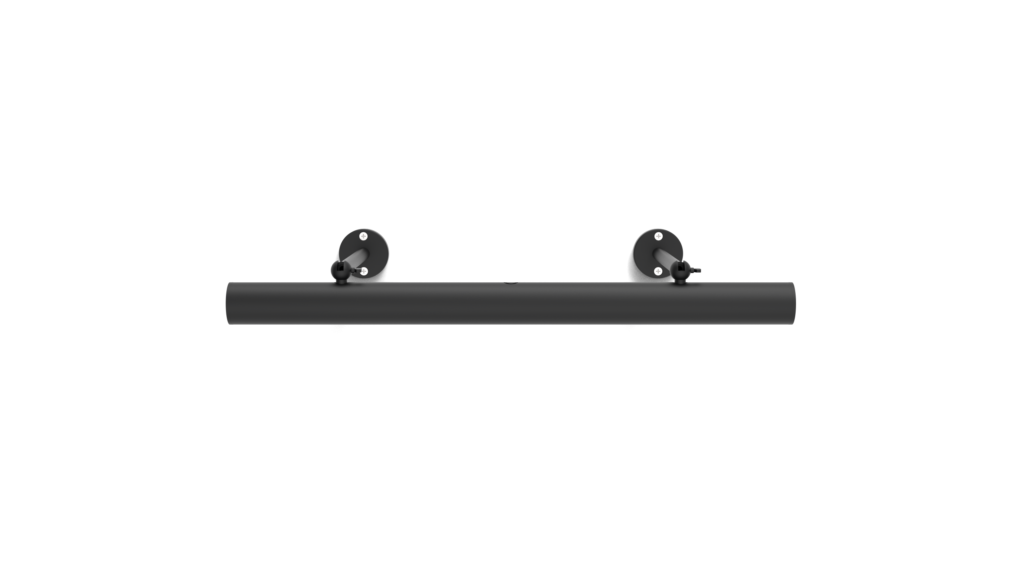

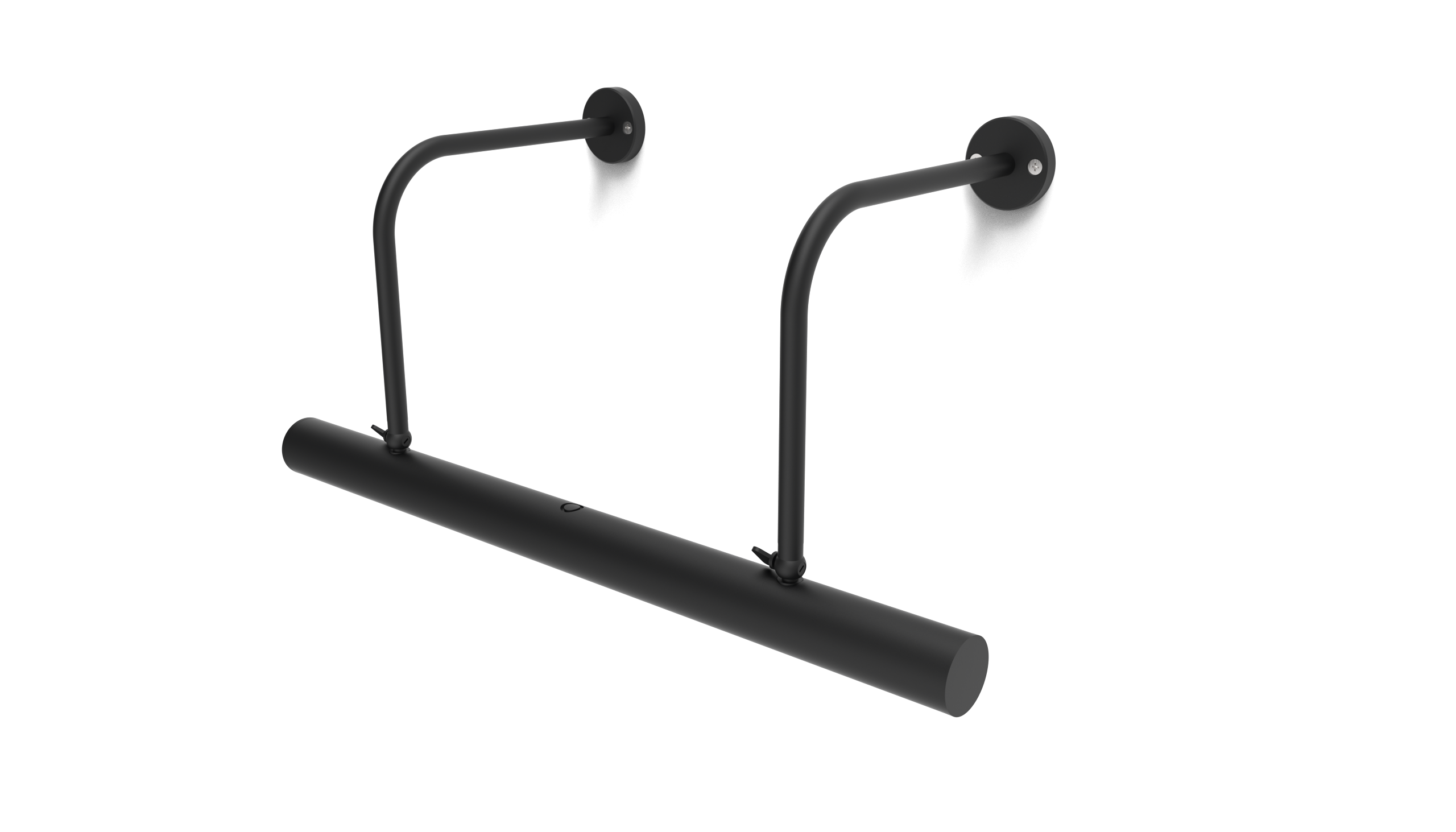

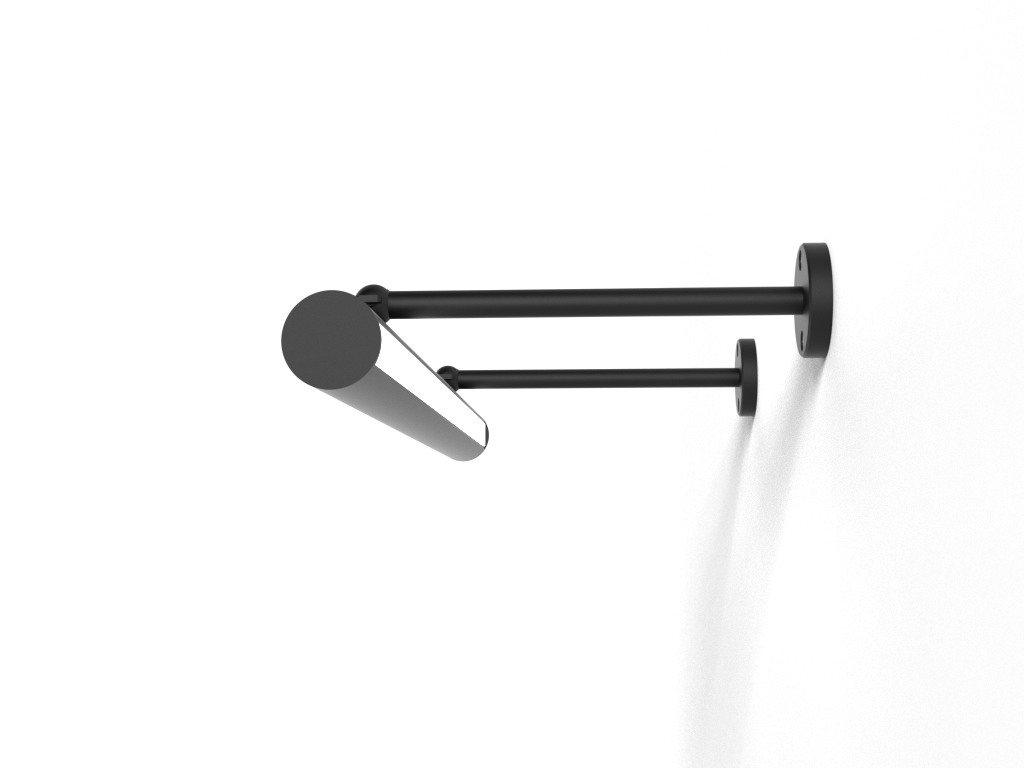

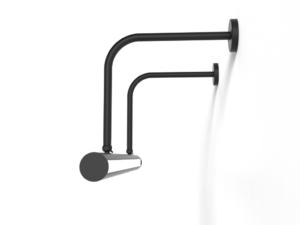

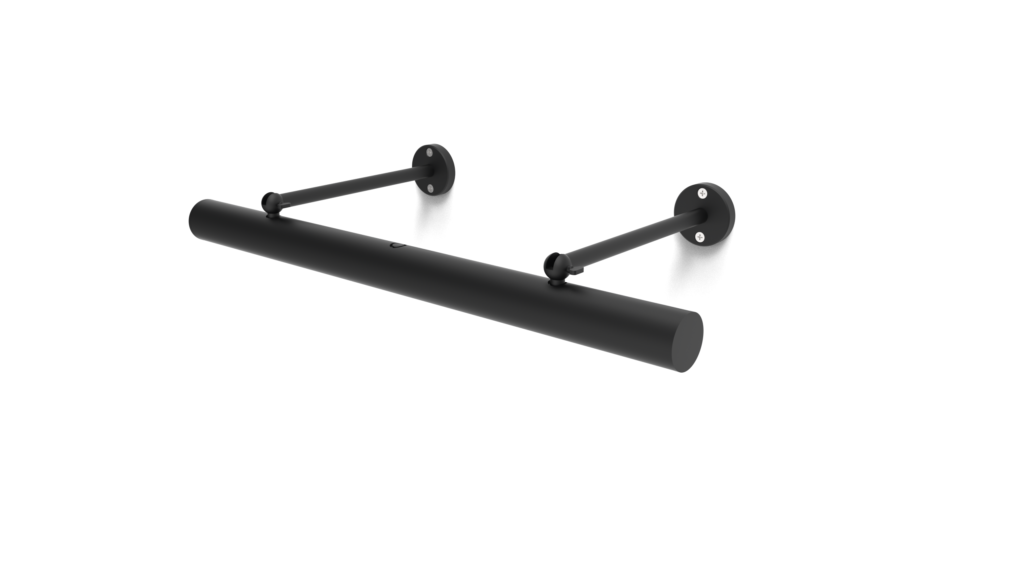

Regis 1 ia a versatile and compact linear LED solution, suitable for commercial and retail applications. It is ideal for lighting bookshelves or pictures, and can also be used for uplighting ceilings to create a soft ambient light. With its small diameter of just 38mm, Regis 1 still manages to deliver high lumen output, ranging from 480 up to 2282 lumens per meter, thanks to the latest Luxeon LED technology.

Regis 1 is available in various color temperatures ranging from 2200K up to 5700K, with 80 and 90 CRI options available. The product can be mounted directly onto walls, on top of shelving, or can be suspended on drop supports for additional lighting. Regis 1 is dimmable via DALI, 0-10V, DMX, Casambi, or can simply be supplied as switched on/off.

Regis 1 comes in various finishes to suit different projects, making it a versatile lighting solution

Regis 1 is designed and made for a circular economy, with all parts replaceable and is fully recyclable, making it a sustainable lighting solution.

If you have any further questions about Regis 1, please get in touch with our sales team.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: Opal Diffused - 12° - 30° - 120°
  • IP Rating: IP54 - IP65
  • Operating Temperature: -25°C to 50°C
  • Lifetime Hours: 50,000 hrs @ 25°C
  • Input: 24V
  • LED Chip: Luxeon
  • Weight: 2KG based on 1000mm
  • Warranty: 5 Years
  • ROHS Compliant: YES
  • Applications: Display, Furniture, General Lighting
