Alphaeus 3 – MO50

Product code: ALP3-MO50-DC-CCT-BA-F-BR-AG-L

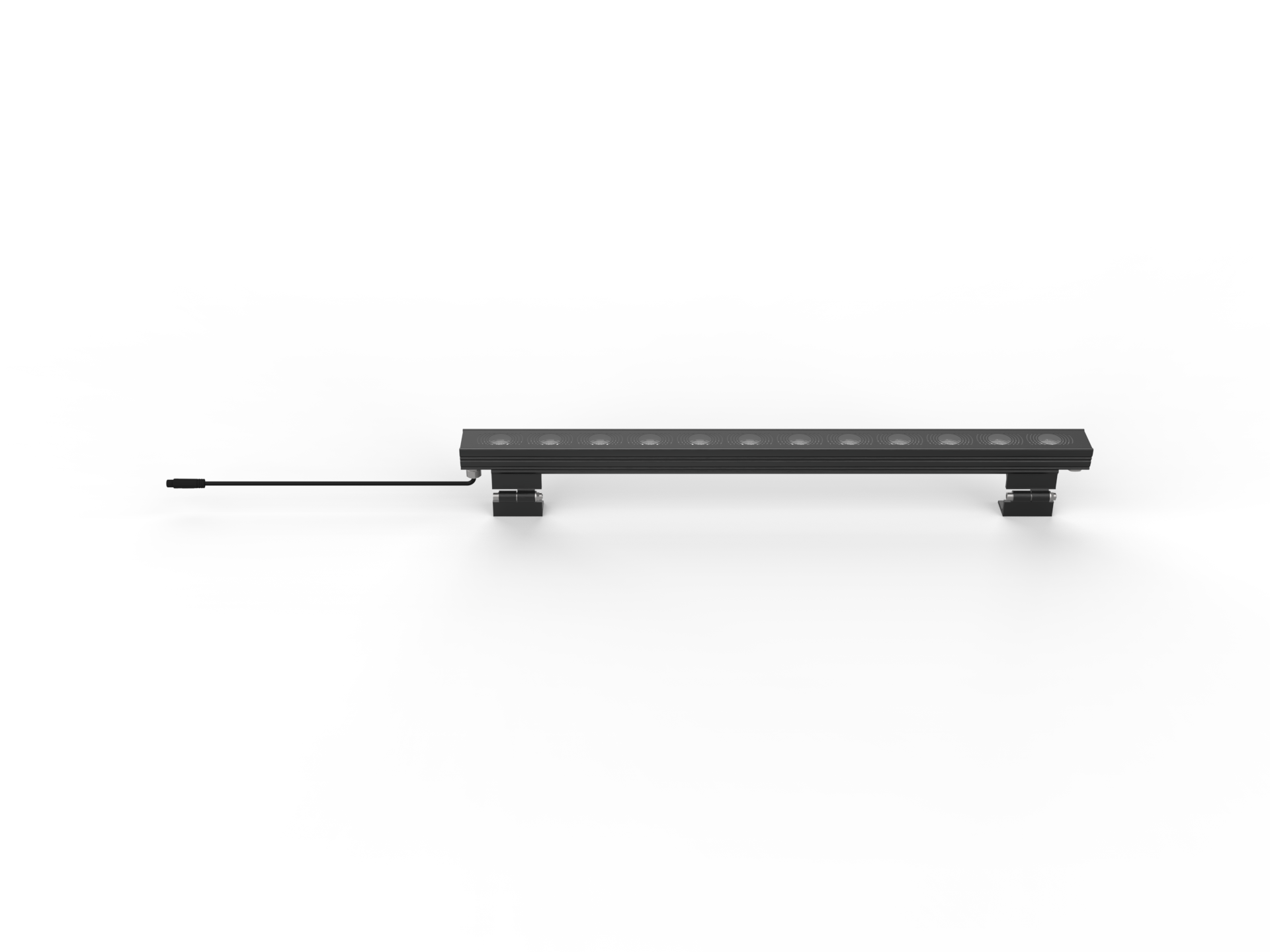

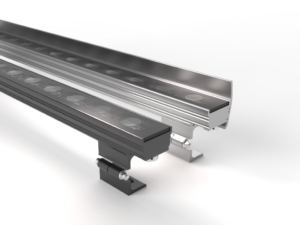

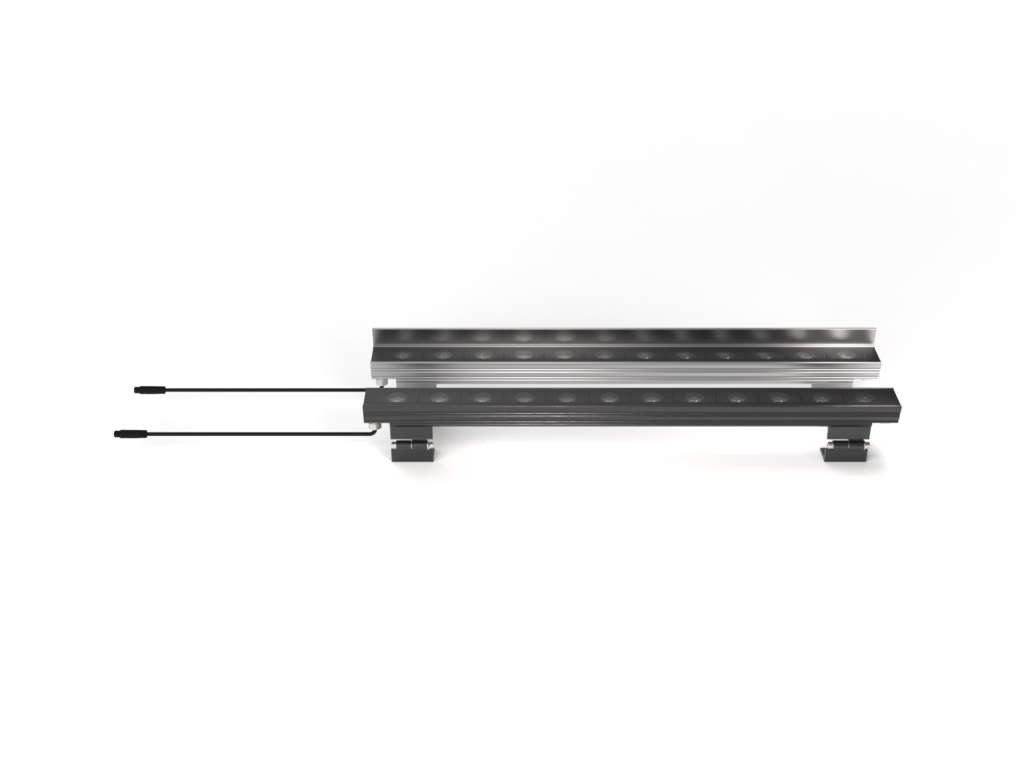

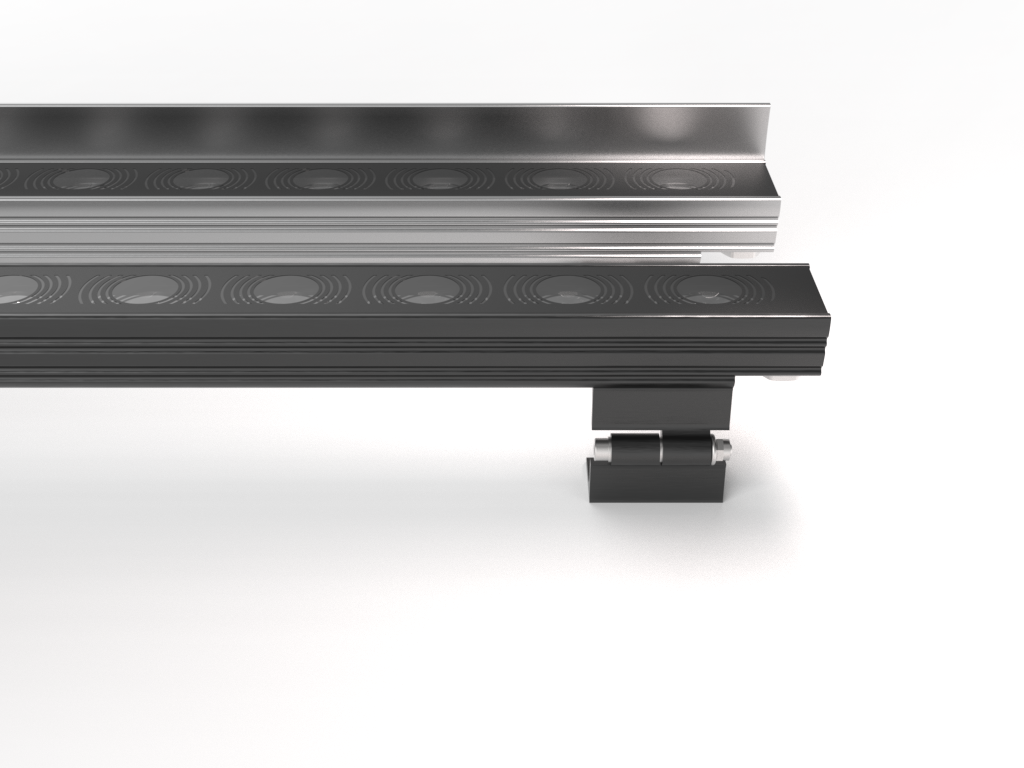

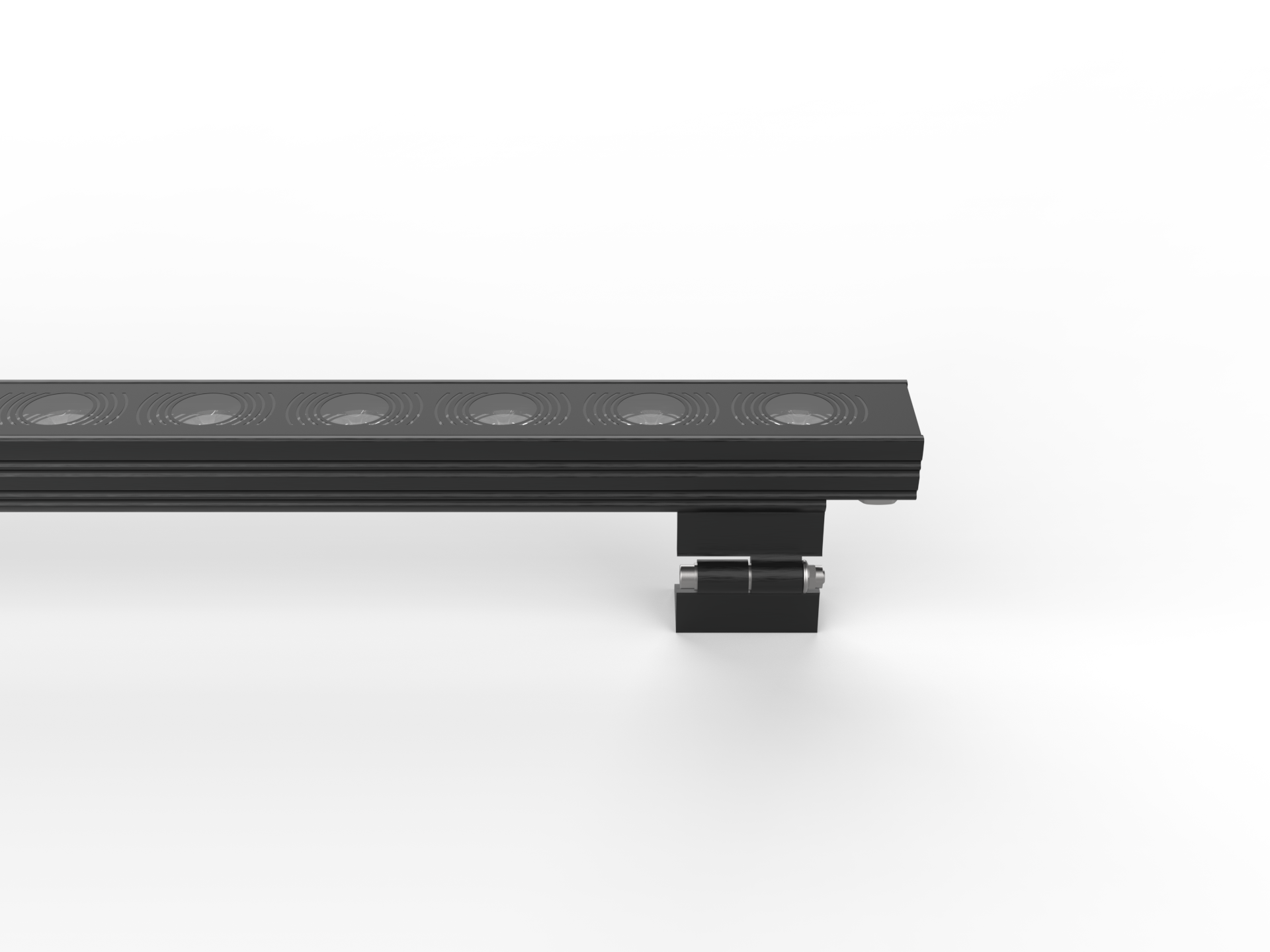

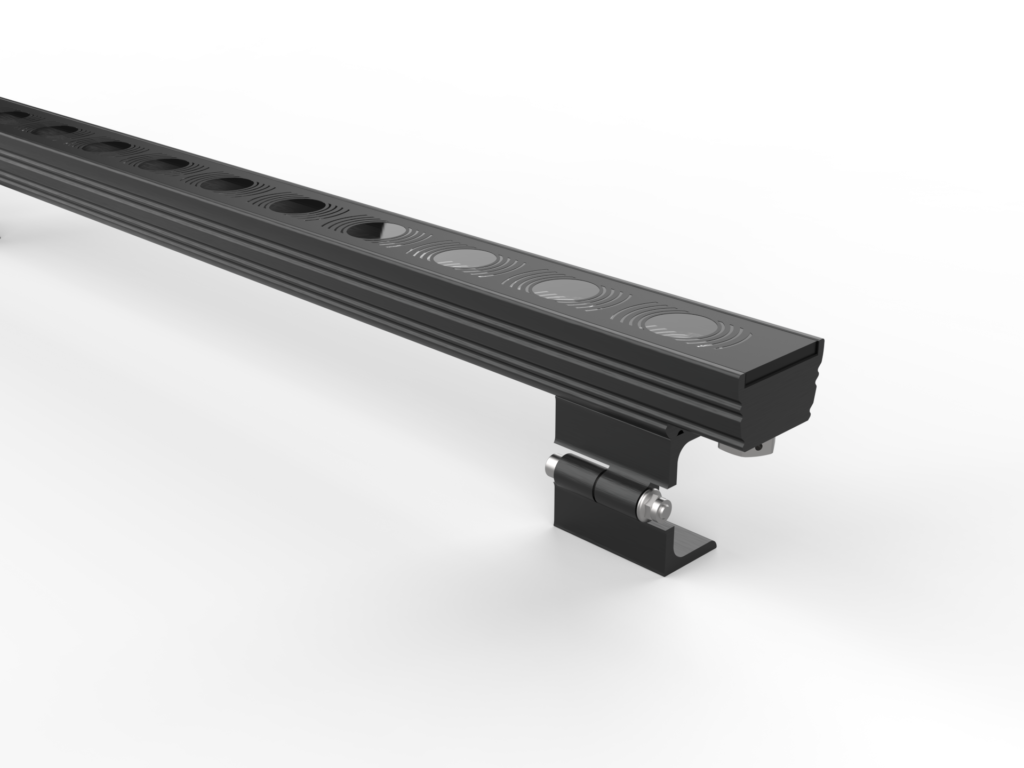

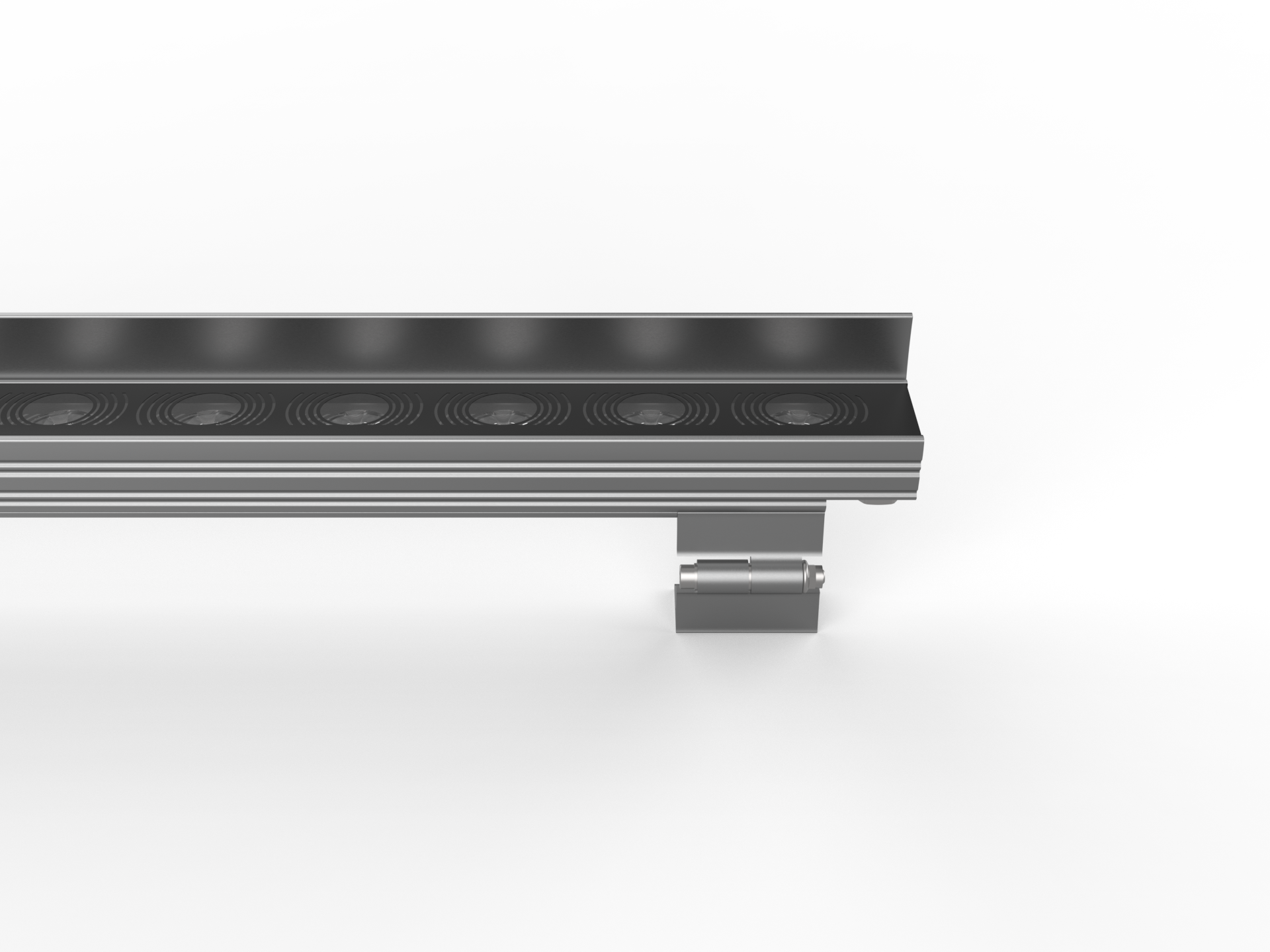

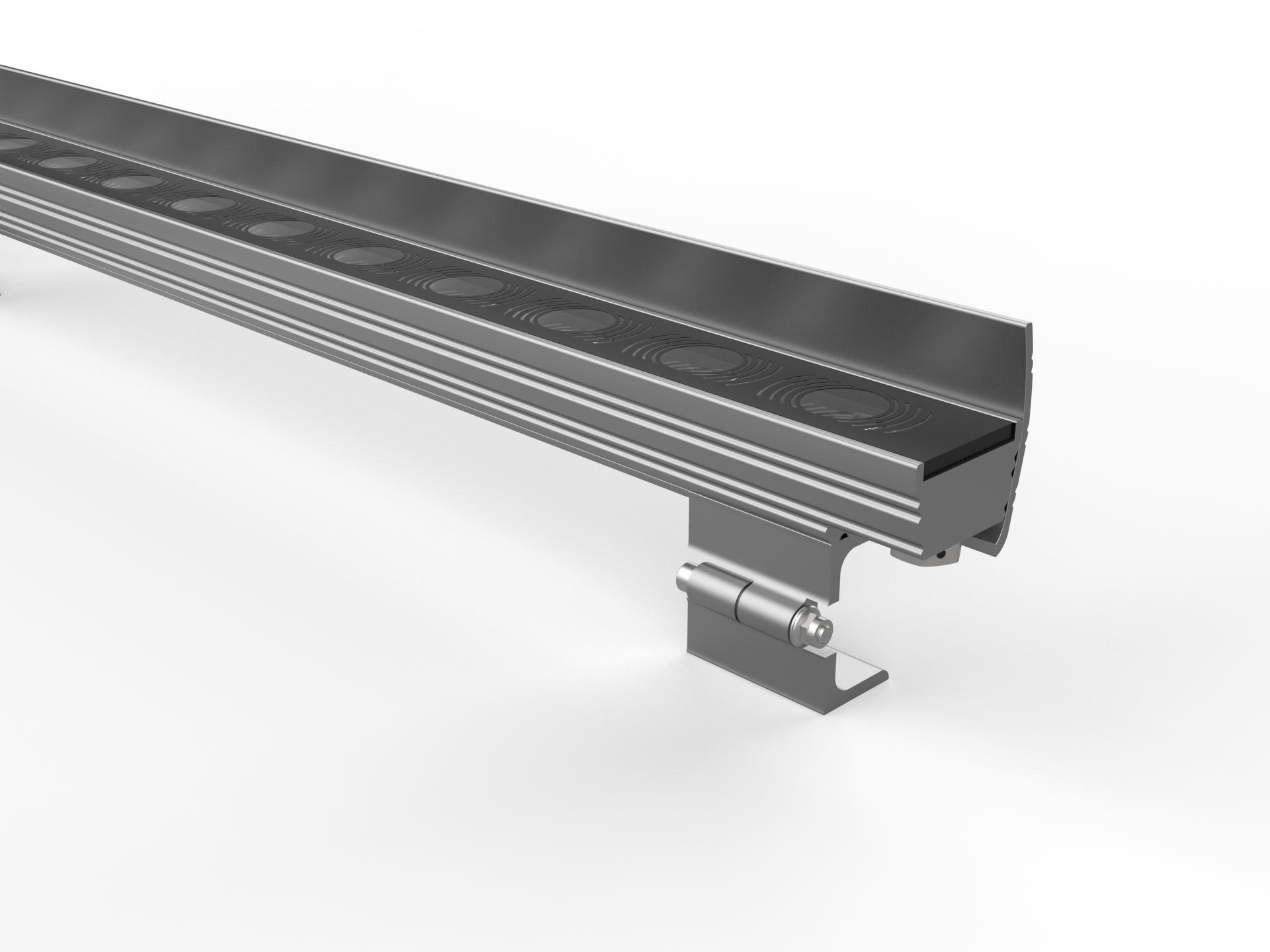

Alphaeus 3 is a high-power, IP67-rated linear LED wall washer designed for exterior applications and facades. It utilizes the latest Luxeon ZES chip to provide unmatched optical flexibility, precise beam angle control, and high efficacy. With a maximum lumen output of 5059 lumens per meter, this product is perfect for wall-washing applications. The sleek design ensures excellent thermal management while providing a visually stunning effect. The product is available in a range of color temperatures starting from 2200K up to 5700K and in different colors. Three different outputs are available, with dimming options including DALI, 1-10V, DMX, Phase, and Bluetooth Casambi. Additional accessories such as an anti-glare micro-louvre or cowl are also available. Alphaeus 3 can be supplied in 12 lengths, from 128mm to 1228mm in 100mm increments. Please contact our sales team for further information on how this product can help with your project.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: Indirect
  • IP Rating: IP66
  • Operating Temperature: -25°C to 55°C
  • Lifetime Hours: 50,000 @ 25C
  • Input: 700mA | 1050mA | 1400mA
  • LED Chip: Luxeon ZES
  • Weight: 2.3kg
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Material: Aluminium
  • Applications: Facades, Landscapes, Wall Washing
