Figaro 40 L C (Dark Light Technology)
Figaro 40 L C (Dark Light Technology)
Figaro 40 L C (Dark Light Technology)
Product code: FIG40-L-C-DC-CCT-CTRL-BA-RFL-F-L

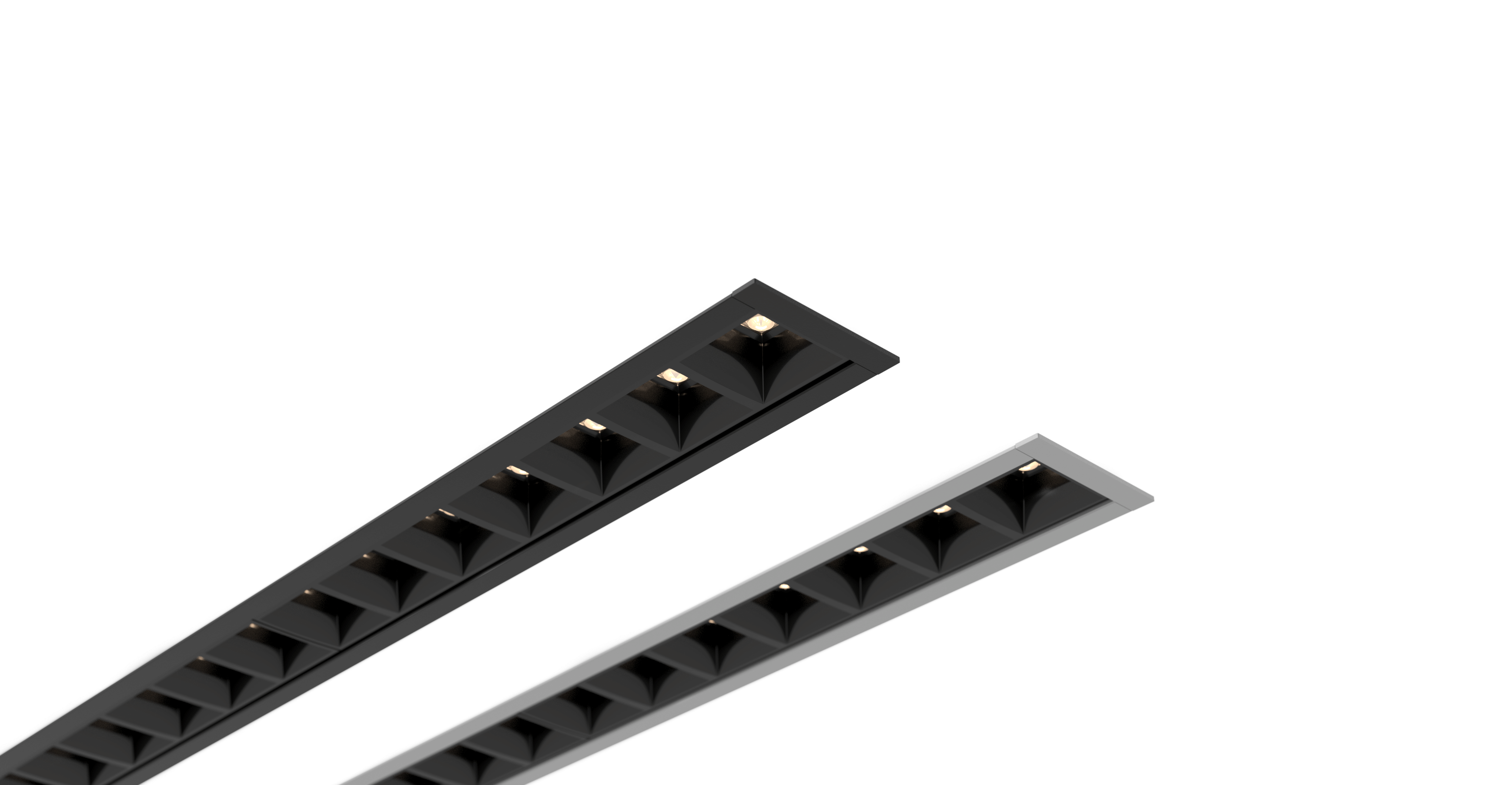

Presenting Figaro 40 L C, a streamlined and compact recessed linear system with trim, meticulously designed around a unique louvre reflector to provide direct lighting with primary optics for precise light dispersion. Our specular reflectors, often referred to as Dark Light, excel in delivering precise and efficient lighting solutions, catering to office, retail, and educational environments where achieving the perfect balance between visual comfort and lighting performance is essential. These reflectors feature a mirror-like surface that allows them to capture and redirect light while effectively minimizing light spill and glare, ensuring UGR<19 compliance.
Figaro 40 L C offers a range of optics, including 35°, 50°, 80°, 80° batwing, and a wall-washing option, providing versatility in lighting design. You can select additional White or Black reflectors with choices in both gloss and matte finishes. The system is available in 3000K and 4000K, with 80 and 90 CRI options, and offers two distinct output variations.
The profile boasts a sleek 45mm width and a 70mm height, allowing for an unobtrusive design. Dimming options are versatile, encompassing DALI, 0-10V, Bluetooth Casambi, or straightforward switch control, with the added convenience of emergency functionality. Standard finishes are available in Black, White, Grey, and natural Aluminum, and the option to request custom RAL colors allows for personalized aesthetics to match your project’s unique style. With multiple length options, Figaro 40 L C is adaptable to projects of varying sizes. We encourage you to engage in a conversation with our sales team to explore how Figaro 40 L C can be customized to meet the specific requirements of your project, ensuring exceptional lighting solutions and visual comfort.
- Colour
- Control options

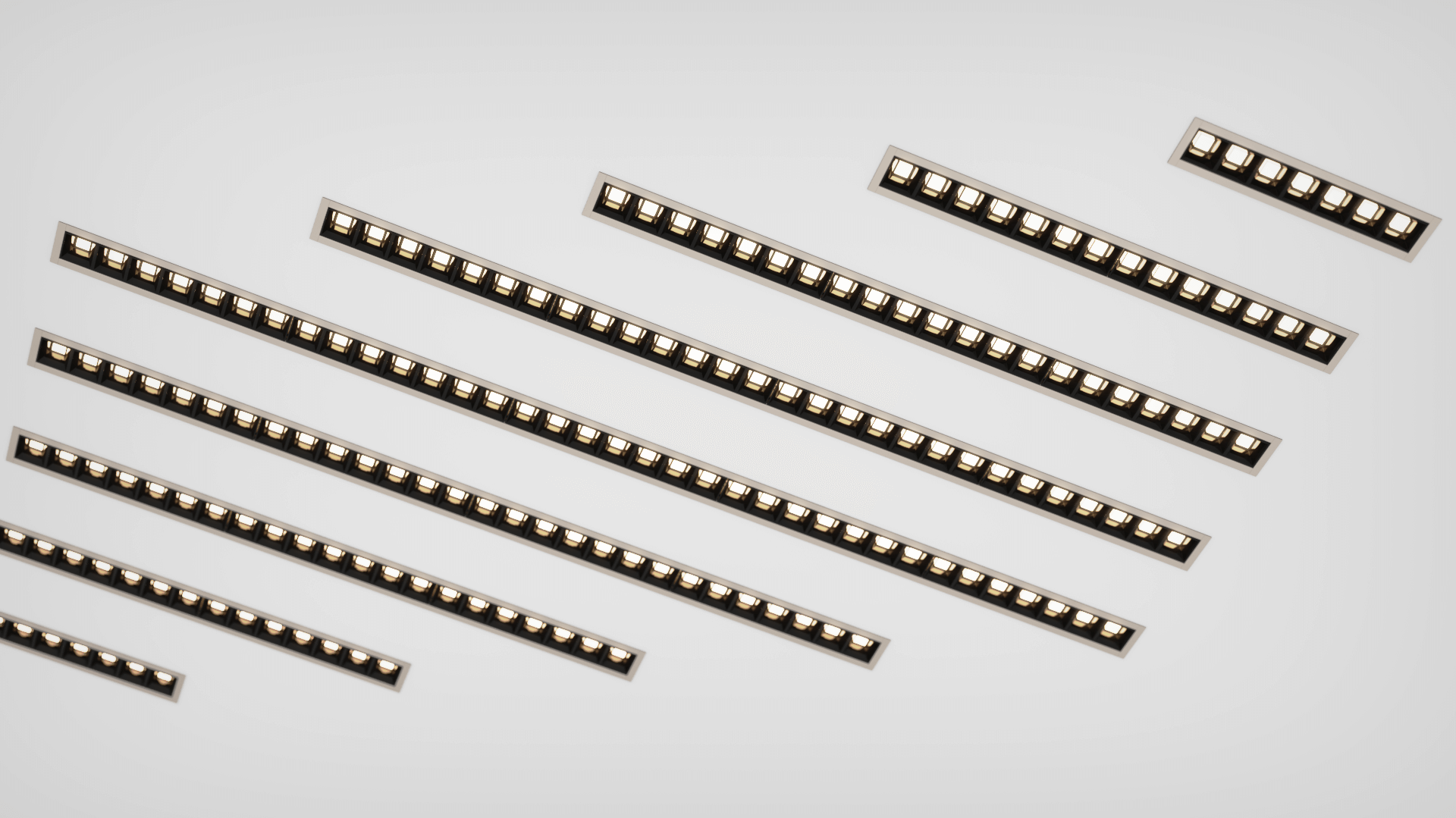

- Physical Attributes
- UGR: <19
- Light Distribution: Direct
- IP Rating: IP40
- Operating Temperature: -25°C to 55°C
- Lifetime Hours: 50,000
- LED Chip: Tridonic
- Weight: 3kg
- Warranty: 5 Years
- ROHS Compliant: Yes
- Material: Aluminium
- Applications: General Lighting
