Figaro 60 B P (direct/indirect)

Product code: FIG60-B-P-DC-CCT-CTRL-CVR-F-L

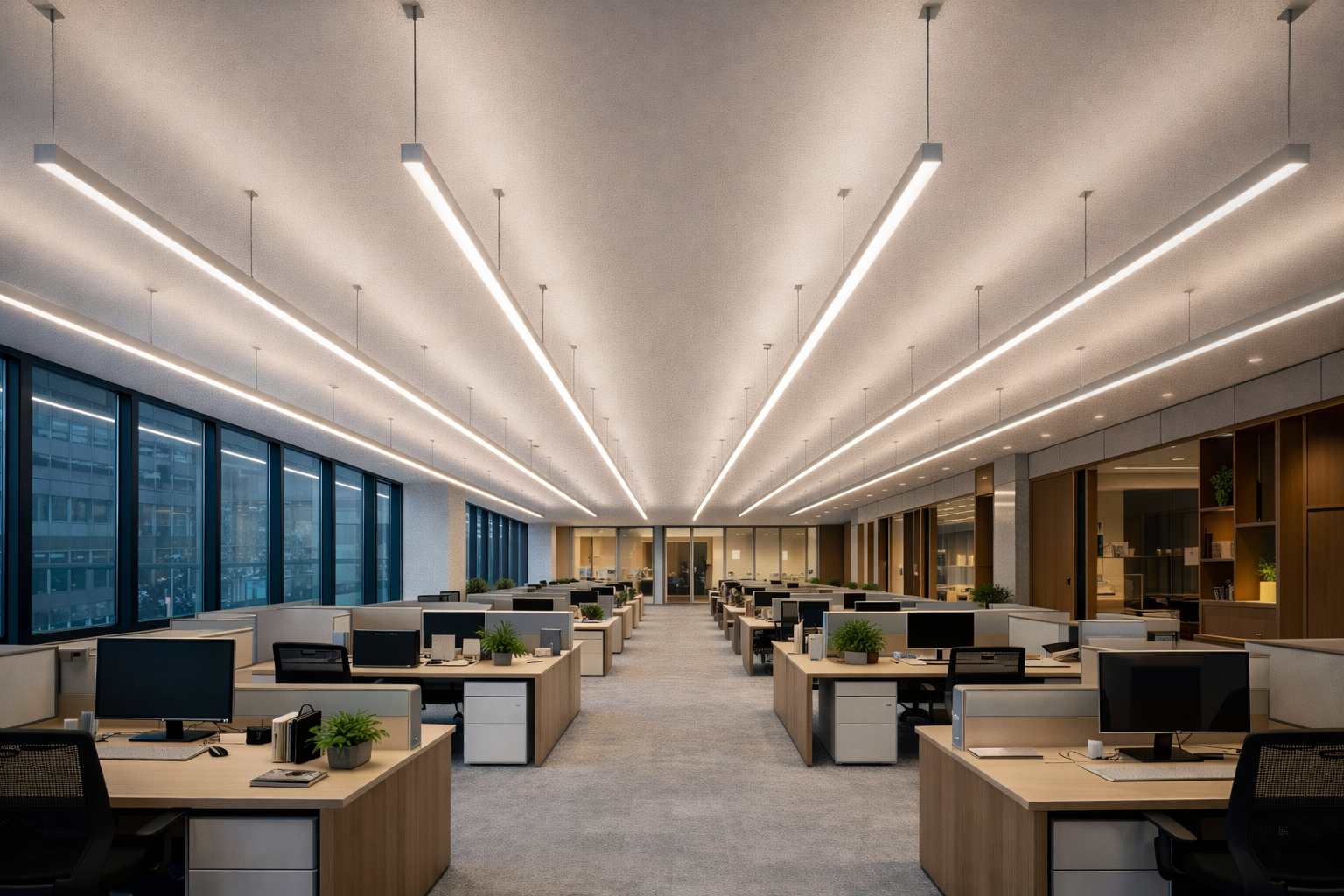

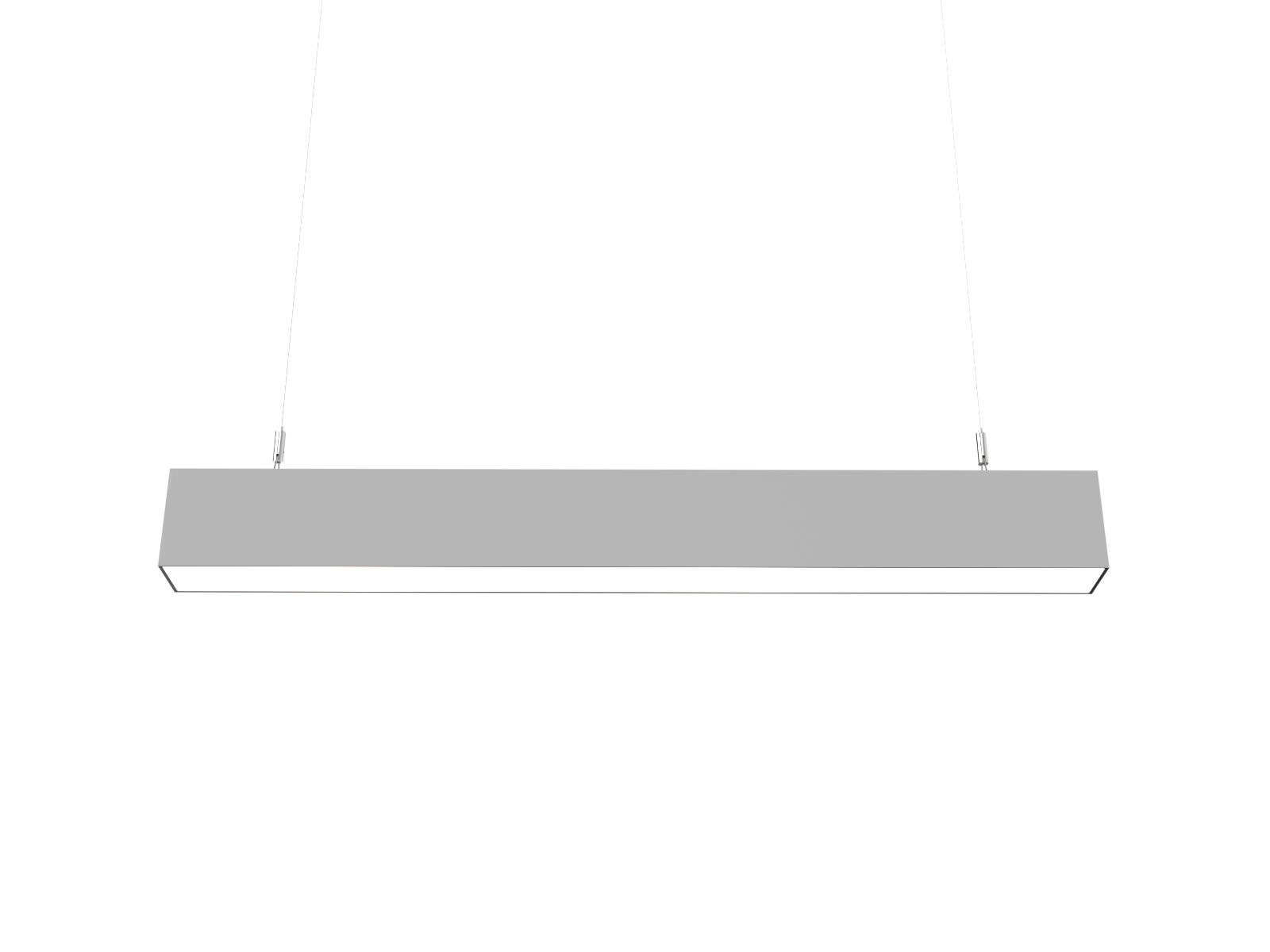

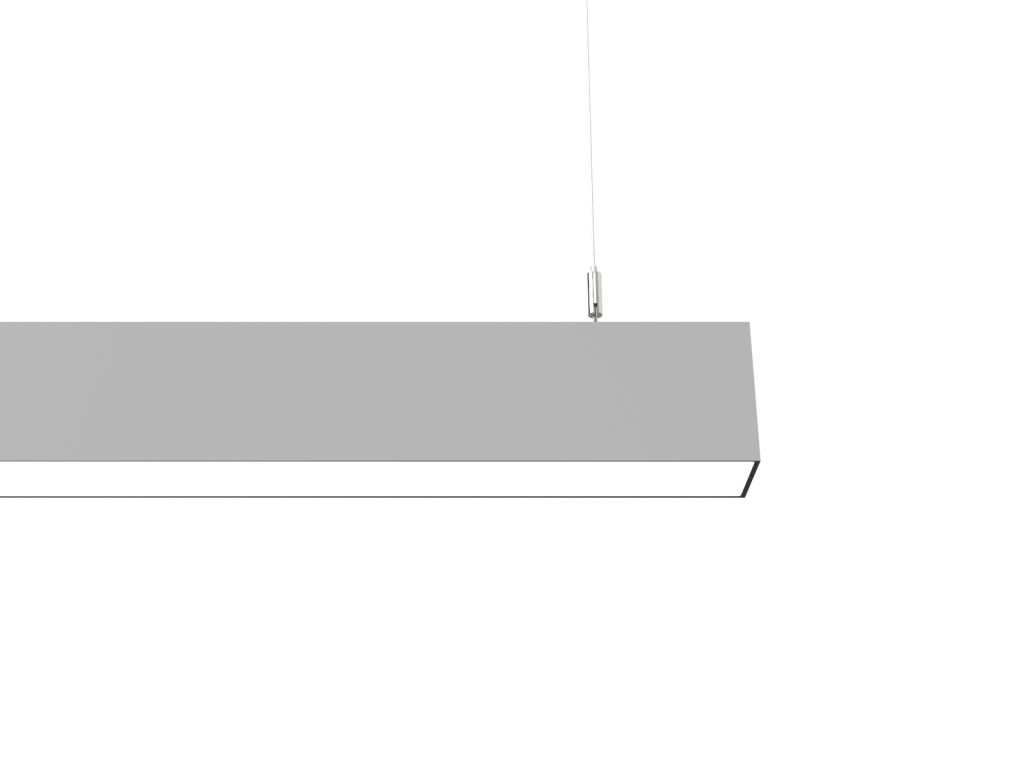

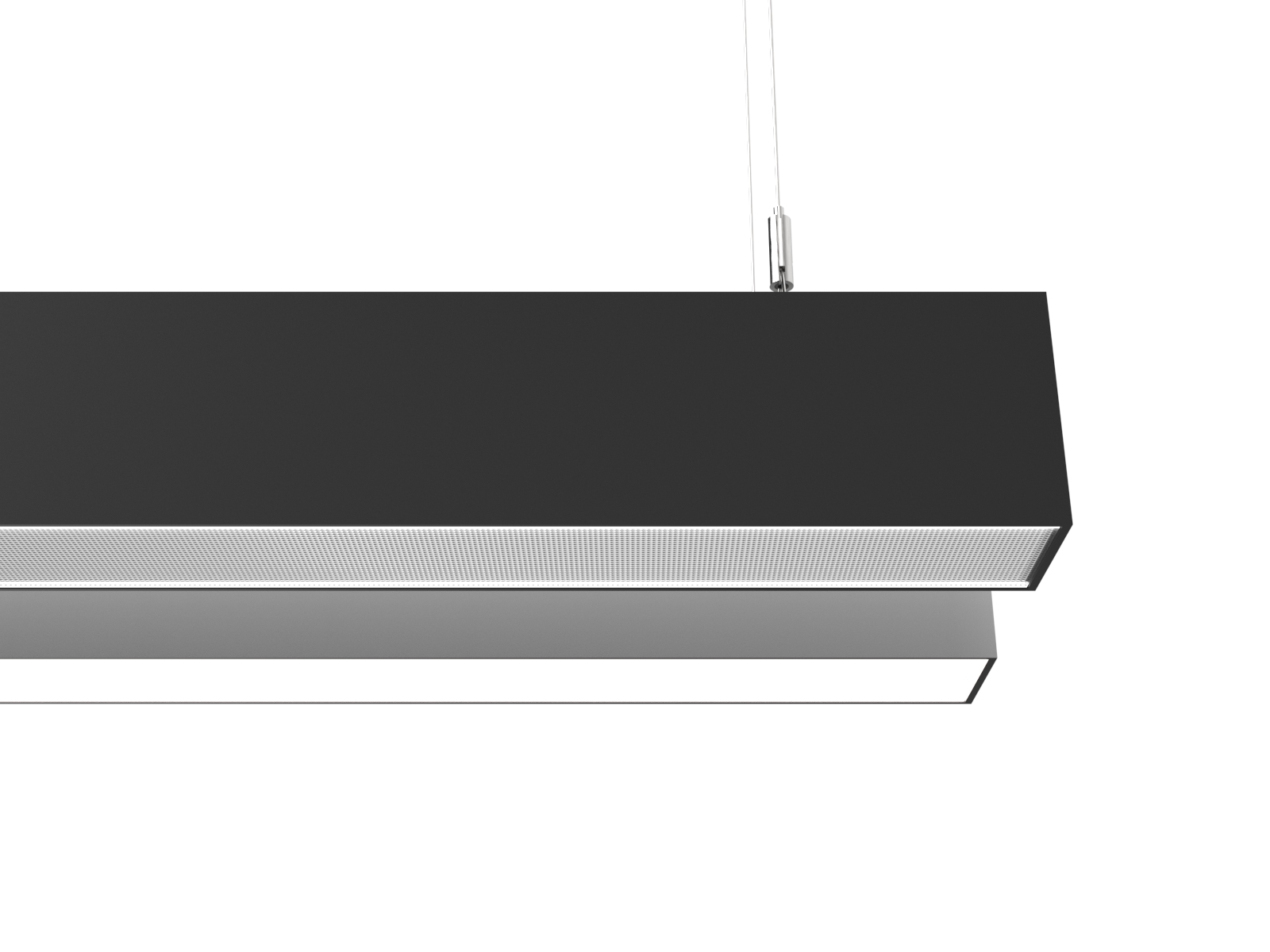

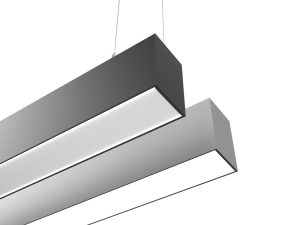

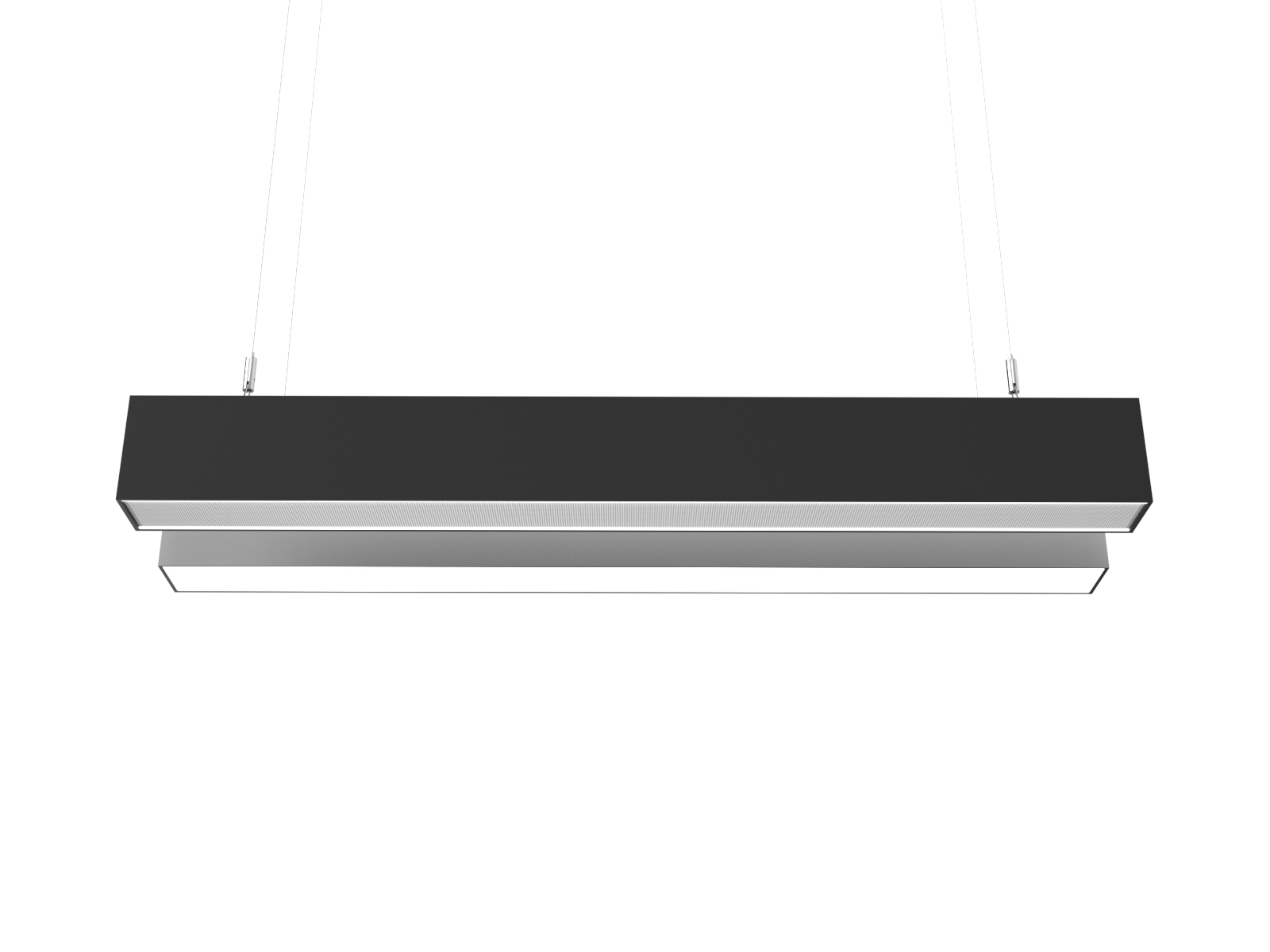

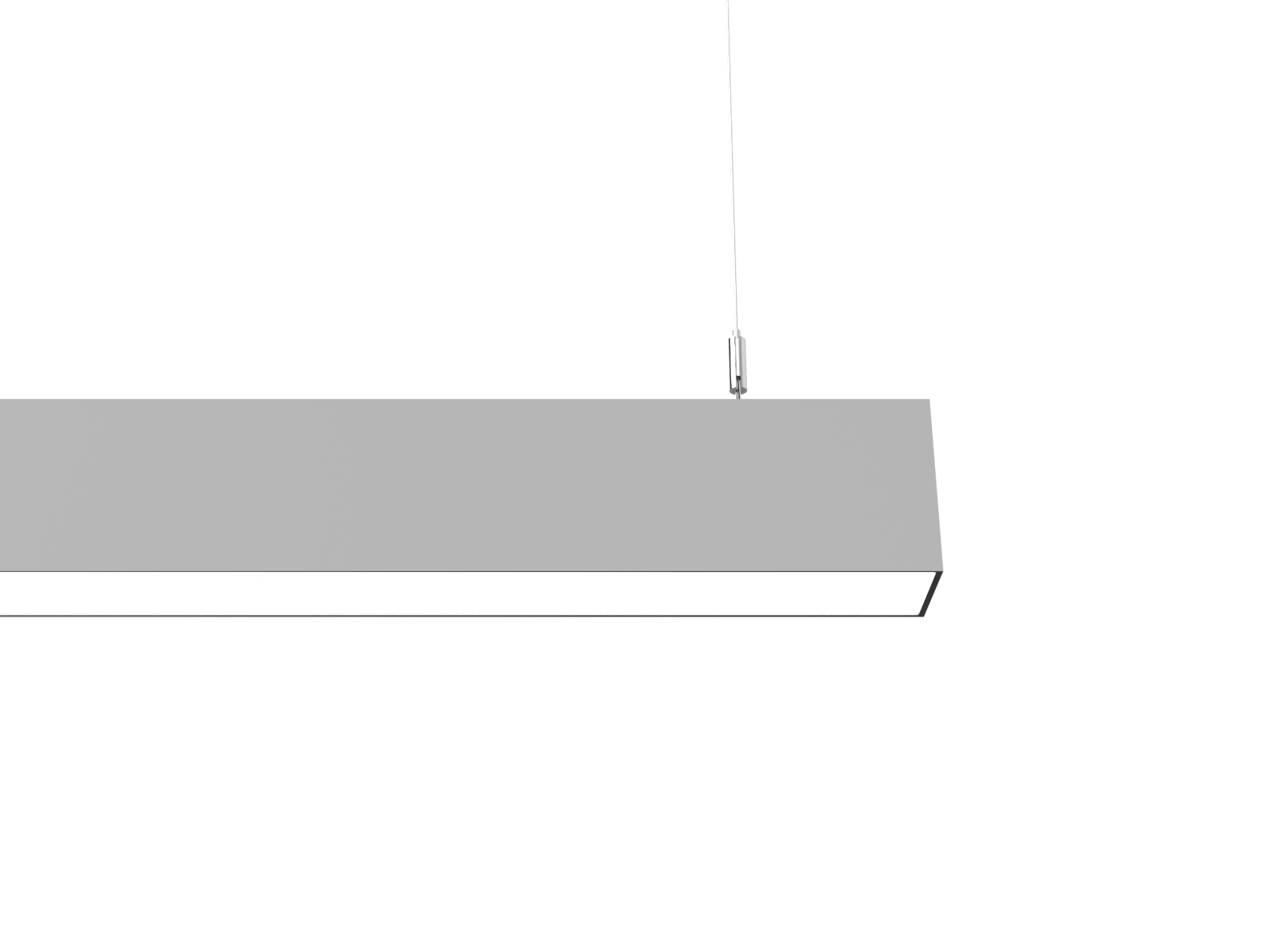

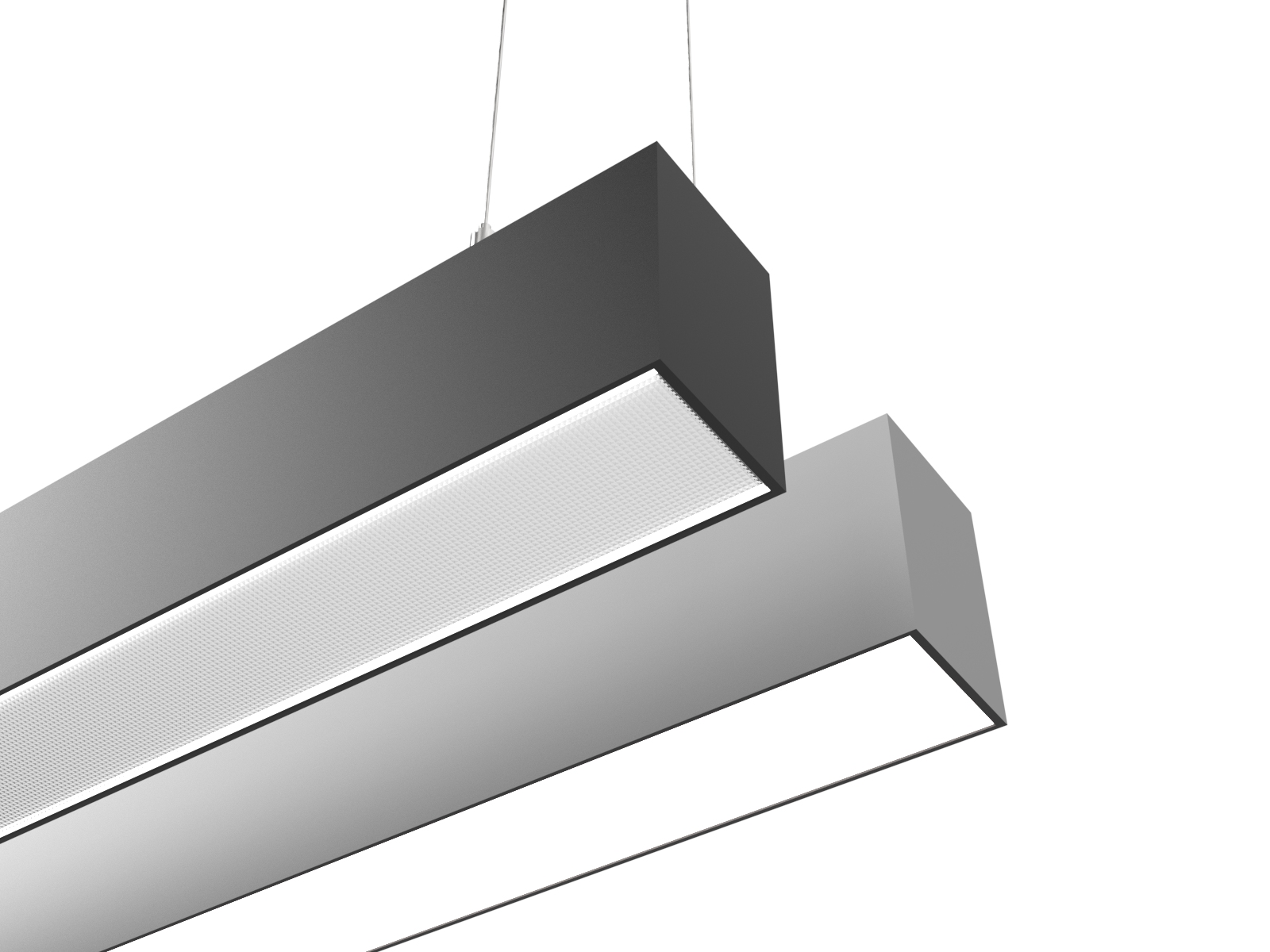

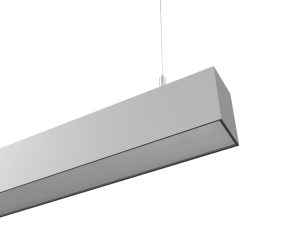

The Figaro 60 B P stands as a sophisticated and elegant linear LED system that offers uninterrupted and uniform lighting in both direct & indirect. This suspended luminaire is designed in a single length, seamlessly harmonizing with continuous installations and is particularly well-suited for office and educational environments, ensuring a UGR<19 rating.

The Figaro 60 system is available in two color temperatures, 3000K and 4000K, with a standard 80CRI and the option of a high-quality 90 CRI. It also provides three distinct output levels – High, Medium, and Economy – to accommodate diverse lighting needs. This product features a profile width of 67mm and a depth of 100mm, and it offers a choice between two diffuser options: Matt Opal and Micro-prismatic.

This exceptional system offers a variety of dimming alternatives, including DALI, 0-10V, Bluetooth Casambi, and emergency switching. It is offered in standard finishes of Black, White, Grey, and natural Aluminum, while the possibility of custom RAL colors is available upon request.

The Figaro 60 B P LED system is offered in multiple lengths and includes adjustable and recessed spotlights, daylight sensors, and blank in-fill panels to cater to your specific requirements. Additionally, various emergency options are at your disposal.

Figaro 60 is thoughtfully engineered with a focus on the circular economy, featuring replaceable components and full recyclability, making it an eco-conscious lighting solution.

For those interested in the Figaro 60 system, we encourage you to reach out to our sales team for further discussions regarding your project details.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • UGR: <19
  • Light Distribution: Direct-Indirect
  • IP Rating: IP40
  • Operating Temperature: -25°C to 55°C
  • Lifetime Hours: 50,000
  • Input: 350mA I 700mA I 1050mA
  • LED Chip: CREE
  • Weight: 3.3kg
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Material: Aluminium
  • Applications: General Lighting
