Mersus 2 PIX

Product code: MER2-CCT-SH-CE

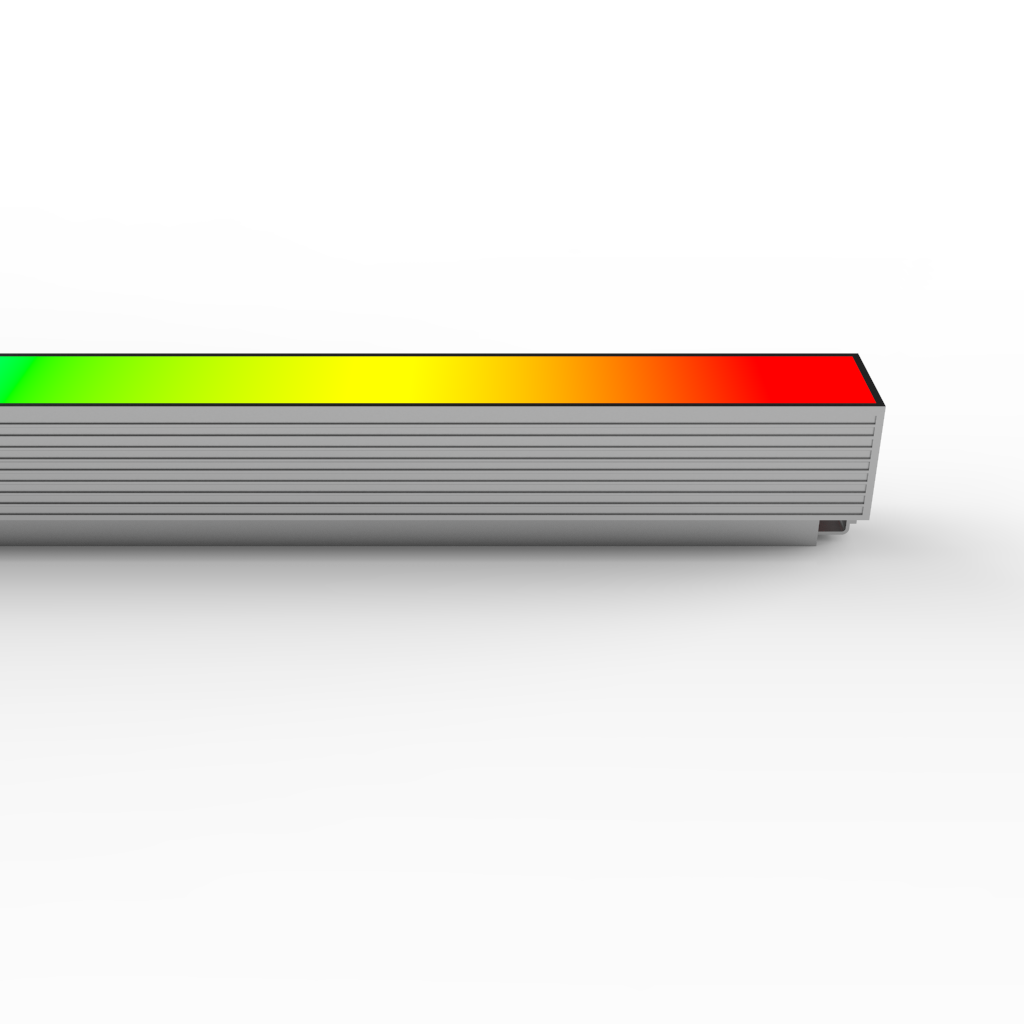

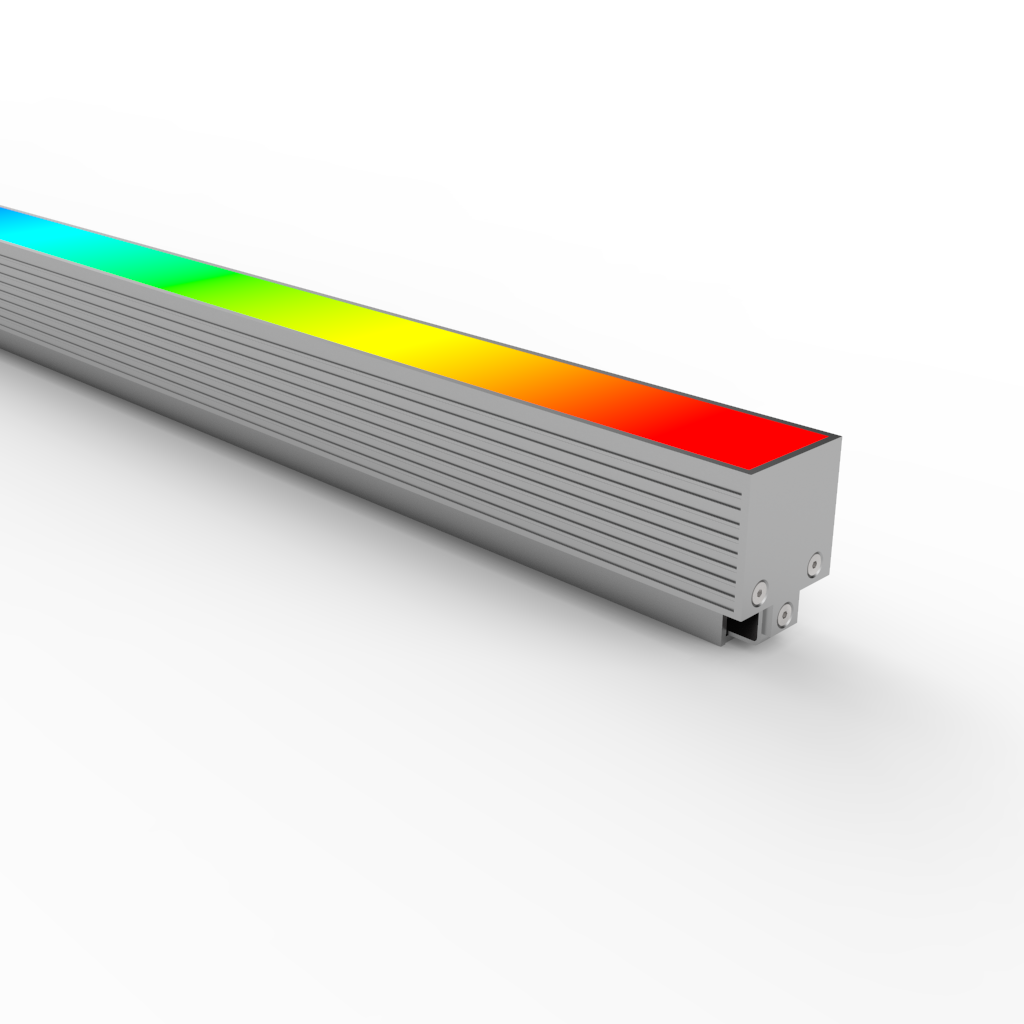

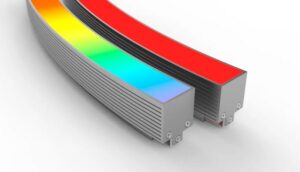

Mersus 2 Pixel is a unique in-ground IP67 linear marker light which can create colourful movement of light which is limited only by the programmers imagination that uses clever SPI-DMX software. Fabricated into curves or simple straight lines which makes this a very adaptable, colourful luminaire for landscapes, walkways and public areas. With a width of 50mm and a depth of just 70mm this makes for a simple installation even in the most challenging of locations. Maxium bend radius is 1500mm so shapes and circles are possible with Mersus 2. This is a low power consumption fixture for a robust in-ground luminaire, designed and made by Kemps here in the UK, with limitless lengths available. Pre-installation programming to suit client scenes and then on-site commissioning are services we also offer with this system. We can also supply and programme a stand alone easy to install control system to scenes of your choosing, including on-site commissioning if required. Please talk to our sales team to discuss your project further.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: Direct
  • Operating Temperature: -20°C to 55°C
  • Lifetime Hours: 30,000hrs
  • Input: 24V
  • LED Chip: Epistar
  • Warranty: 3 Years
  • ROHS Compliant: Yes
  • Applications: Decorative, Landscapes
