Proteus I

Product code: PRO-I-W-CCT-CVR-IPR-CE-BR-F

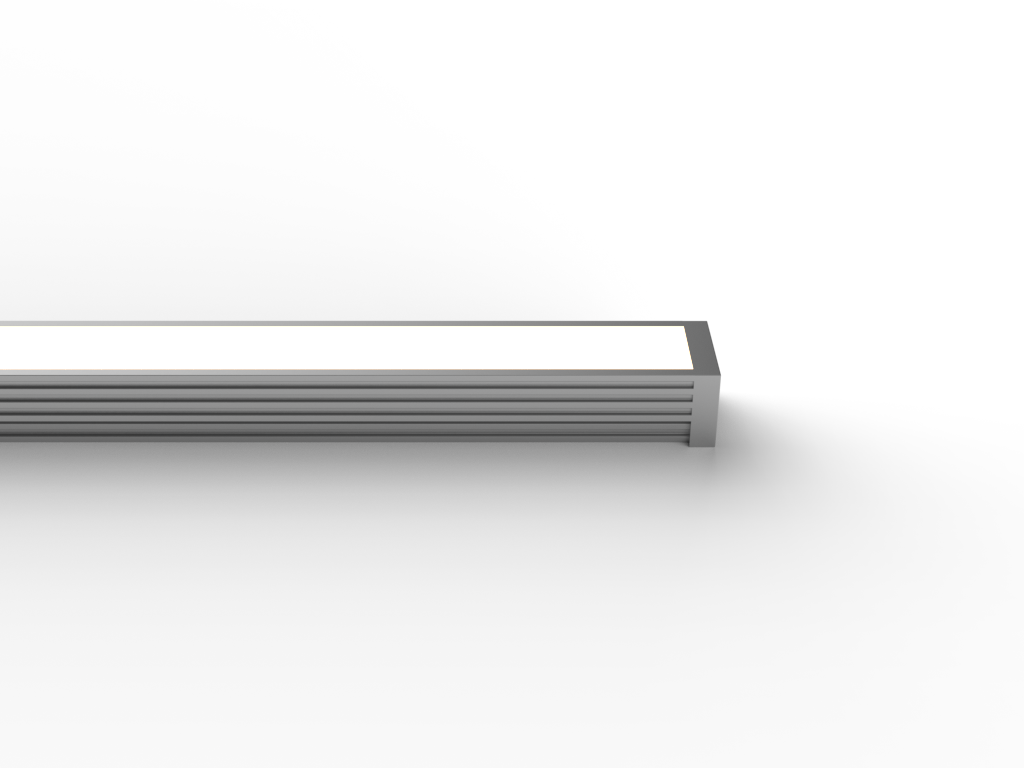

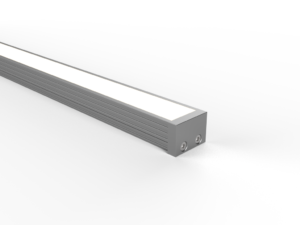

The Proteus I presents a sleek, linear LED luminaire with a slim profile measuring just 26.5mm in width and 19mm in depth, offering the flexibility of opal or clear diffusers. Covering a range of color temperatures from 2200K to 4000K, it achieves a maximum output of 2700 lumens based on the 19W per metre 4000K system with a clear diffuser. With options for both 80 and 90 CRI, and additional power variants of 15W, 9W, and 5W per metre, it adapts easily to diverse lighting needs. Lengths are adjustable from 74mm to 1926mm, in 50mm increments, accommodating a wide array of applications. Optional finishes include Black, White, Anodized Aluminum, and custom RAL colors for tailored aesthetics. The Proteus I comes with either a full suspension kit or standard stainless brackets for surface mounting, and is available in IP54 or IP67 ratings to suit various environmental conditions. For further project inquiries and customization possibilities, please reach out to our sales team.

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: Direct
  • Operating Temperature: -25°C to 55°C
  • Lifetime Hours: 50,000 @ 25C
  • Input: 24V
  • LED Chip: Luxeon
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Applications: Decorative, Display, General Lighting
