Sabre 60

Product code: SAB60-W-CCT-CVR-IPR-M-F-L

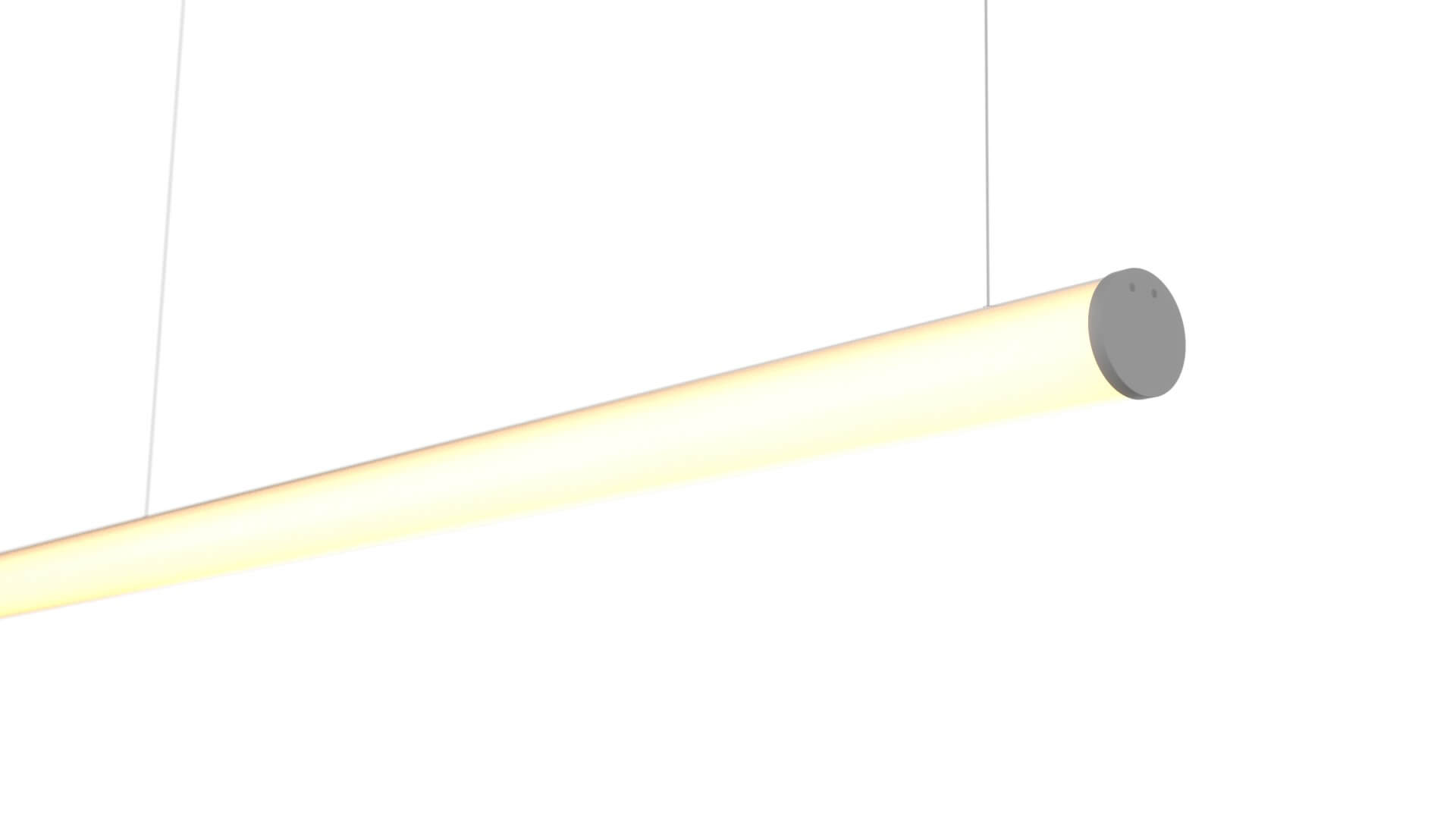

The Sabre 60 is a distinctive lighting solution featuring an opal acrylic tube with a slim diameter of just 60mm and a wide beam angle of approximately 300 degrees. Designed to deliver a seamless, homogenous light output, it is an ideal choice for various environments, including hospitality settings, offices, atriums, and retail spaces. The Sabre 60 is available in a range of colour temperatures from 2200K to 4000K, and it offers high colour rendering with options for both 80 and 90 CRI.

To cater to different lighting needs, the Sabre 60 provides multiple lumen packages, with output ranging from 838 to 1666 lumens per metre, depending on the power consumption. Higher lumens can also be achieved (2500/3000) with constant current PCBs, please discuss with our sales team.

This versatile lighting solution is fully dimmable, compatible with various control systems such as DALI, DMX, 0-10V, Phase dimming, and Bluetooth Casambi, or it can simply be switched on and off. The Sabre 60 is designed primarily for indoor use with an IP54 rating, but it can also be customized for outdoor applications with an IP65 rating if needed.

The system is powered by 24V remote drivers positioned near the fittings and can be installed using suspension wires or surface-mounted on fixed brackets, depending on the specific application requirements. Available in multiple lengths up to 2500mm max.



For more information or to discuss your project needs, please contact our sales team

Configure your productConfigure
Technical specificationsTech specs
  1. Colour
  2. Control options
  3. Physical Attributes
Download Specifications Specs Configure product to generate custom specification
  • Light Distribution: 300°
  • IP Rating: IP54
  • Operating Temperature: -25°C to 55°C
  • Lifetime Hours: 50000hrs
  • Input: 24V
  • LED Chip: Nichia
  • Warranty: 5 Years
  • ROHS Compliant: Yes
  • Material: Aluminium
  • Applications: Decorative, Display, General Lighting
